130W Solar panel 1045x670mm SOLARFAM
Advantages:
- The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 18.92%.
- Shingled string welding process, beautiful and neat.
- Using tempered glass, high transparency.
- Anti-corrosion EVA effectively protects the battery panel.
- Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
- Lightweight and flexible features can make it seamlessly integrated into your vehicle.
- Packed in a single carton, with protective corners on all four corners.
- OEM and ODM supported.
Specification：

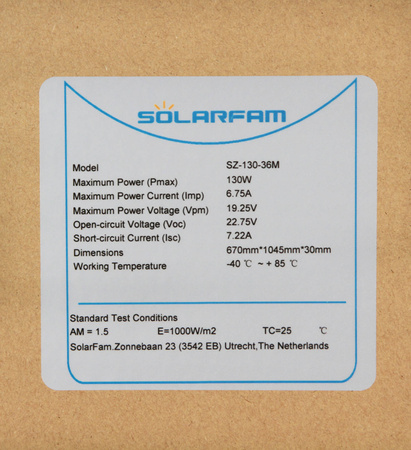

| Mechanical DataStandard Test Conditions AM=1.5, E=1000W/m2, TC=25℃ | |
| Nominal Power | 130W |
| Cell Type | Monocrystalline |
| Module Efficiency | 18.92% |
| Maximum Power Current (Imp) | 5.04A |
| Maximum Power Voltage (Vmp) | 19.86V |
| Open-circuit voltage (Voc) | 23.70V |
| Short-circuit current (ISC) | 5.34A |
| Maximum System Voltage | 1000V |
| Output Tolerance | +3% |
| Cable | 500mm / 2.5mm2 |

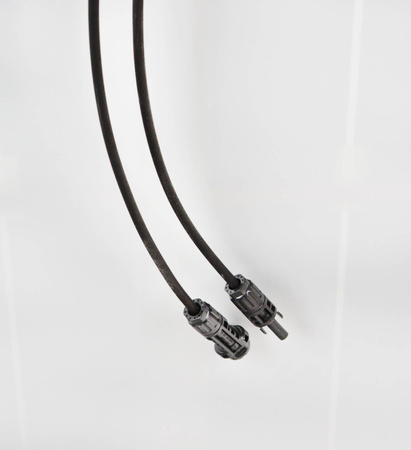

| Connector Type | MC4 / MC4 Compatible |

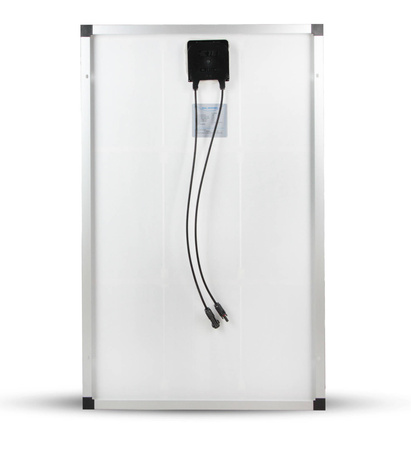

| Module Structure | Aluminum Frame / Glass / EVA /Backsheet (White) |

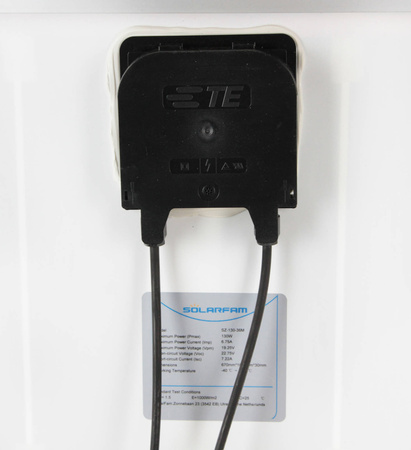

| Junction box rating | ≥IP67 |
| Number of Diodes | One |
| Working Temperature | -40℃~+80℃ |
| Packaging | |
| Module Dimensions | 1045*670*30mm |
| Module Weight | 6.30kg |

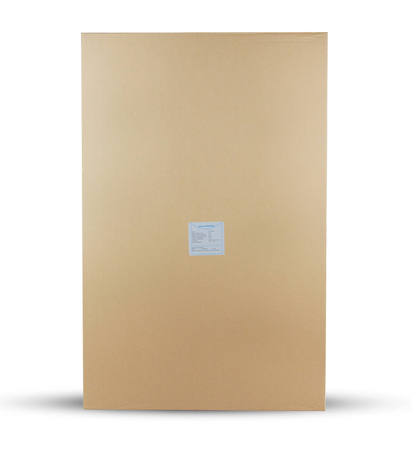

| Package | Single Package |
| Pieces per Pallet | 28 |
| Gross Weight per Pallet | 196kg |
| Pallet Dimensions | 1200*1100*500mm |
Brand
Symbol
FW-P-130
Producer code
SZ-130-36M
Ramowy
Tak
Flex
Nie
Ogniwa
Monokrystaliczne
Moc szczytowa [W]
130
Długość [mm]
1045
Width (mm)
670
Głębokość [mm]
30
