alarm center POWERBOX 2.0

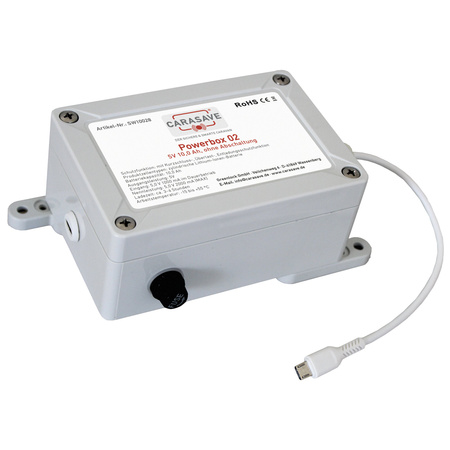

alarm center POWERBOX 2.0 CARASAVE
The ideal self-sufficient power supply for your alarm center
The CARASAVE® alarm control panel POWERBOX 2.0 is the perfect solution for reliably supplying your alarm system with power even in challenging situations. Thanks to three integrated voltage inputs, the Powerbox enables the autonomous operation of your alarm control panel, even if no on-board or supply battery is available. The POWERBOX 2.0 proves to be an indispensable backup power source, especially for "shore power monitoring".
The Powerbox provides a secure power supply even in places without shore power (230 V) or on-board battery. Unlike conventional power banks, the POWERBOX 2.0 does not switch off, even with minimal power consumption - ideal for permanent monitoring systems.
versatility and performance
The power box has a USB-C charging port and is compatible with numerous mobile device chargers. Whether with a micro USB or USB-C port, the choice is yours. The powerful Li-Ion battery with a capacity of 10 Ah delivers a constant output power of 5 volts, ideal for long-term operation of your alarm system. An integrated charger ensures that the battery is fully charged in just 4 - 5 hours.
Safe and reliable
Thanks to built-in short-circuit, overload and discharge protection, the POWERBOX 2.0 is optimally protected. A 2.5 A screw fuse provides additional protection against overload. The operating temperature ranges from -15 to +55 °C, so that the Powerbox works reliably even in extreme environments.
Technical data:
- Protection functions: short circuit, overload, discharge protection
- Battery type: Cylindrical lithium-ion battery
- Capacity: 10 Ah
- Output power: 5 V
- Input: USB-C socket via plug-in power supply charger
- Charging time: 4 – 5 hours at 2 A charging current
- Working temperature: -15 to +55 °C
- Standby usage time: Approx. 10 days with alarm center SDS0X
Note: Always charge the Powerbox under supervision and avoid continuous charging!
