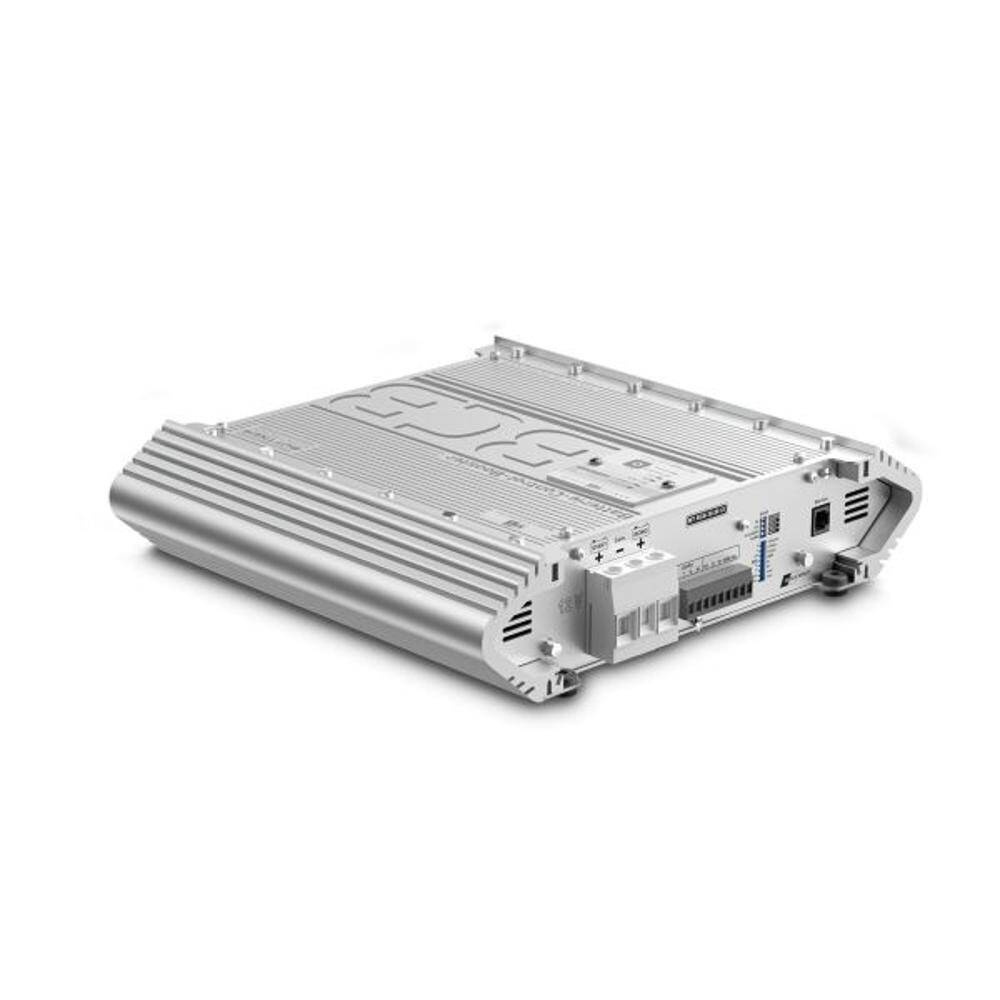

Battery Control Booster MT
Battery Control Booster MT
Due to their higher output power (30 A, 40 A, 60 A), these devices are not only suitable for parallel charging with existing charging devices, but can also be used as the main charging device. For self-conversion or van conversion, the BCBs can be mounted directly between starter and RV battery. Adjustable to wet, gel, AGM and standard LiFePO4 battery systems.
- At the 230 V mains: The BCB provides 30 A or 40 A, which can be reduced by 10 A directly on the device.
- Driving mode: The IUoU charge is active while driving. The booster is activated with either 30 A, 40 A or 60 A depending on the current power level to ensure a full charge.
- Pulser function: As with BCB 25/20, the pulser function can be activated.
Installation: If the BCB is used as the only charging device, no high-current relay is necessary. BCB 30/30 can be installed in vehicles with integrated electronic block (EBL, CBE, etc.). This requires a "high current relay (80 A) with installation kit".
Brand
Symbol
322188
Producer code
4250683613967
Typ osi
Typ 1
Typ
MT BCB 30/30 IUoU
Marka
Büttner Elektronik
Waga brutto
4,4 kg
Gtin
4250683613967
Długość kabla
5 m
Wysokość
70
Szerokość
300
Głębokość
270
Napięcie nominalne
12 V
Waga netto
3,8 kg
Max wymiar pakowania
50,5 cm
Min wymiar pakowania
9,5 cm
Śr wymiar pakowania
32,5 cm
EAN
425068361396
