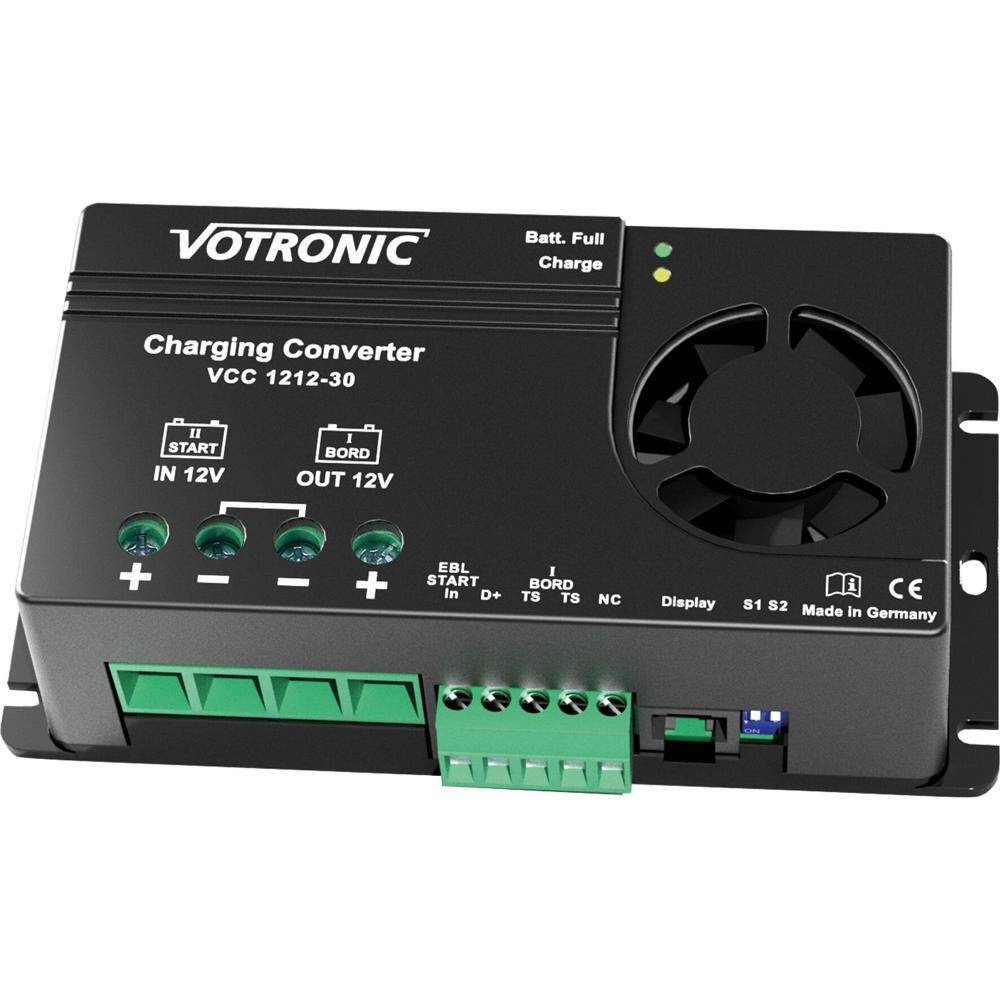

Charging Converter VCC 1212-30
Charging Converter VCC 1212-30
Reach your destination with a full RV battery
The problem is well known and yet always annoying: despite a powerful alternator, the RV battery is not fully charged even on long journeys. The VOTRONIC charging converters, which charge the RV battery quickly and gently in accordance with the battery manufacturer's specifications, provide a remedy. Even on short journeys, the battery is charged with the full charging current. Losses due to long charging cables in large vehicles and voltage fluctuations at the alternator (Euro 6) are perfectly compensated.
Product features
- Replaces the conventional cut-off relay
- Suitable for all alternators
- High charging capacity even for short journeys
- Full charge for longer journeys
- Optimised charging characteristics for acid, gel, AGM and lithium LiFePO4 batteries
- Significantly better energy balance with conventional alternators
- Automatic power control
- Parallel operation to increase power possible
- Simple installation, no intervention in the starter circuit
- Incl. temperature sensor 825
Technical data
- Device type: VCC 1212-30
- Rated voltage (input/output): 12 V/12 V
- Adjustable charging current (limit/max.): 20 A/30 A
- Battery capacity (recommended/up to): 60 ... 200/260 Ah
