LevelM support system for MB Sprinter vans from 2006/04
LevelM support system for MB Sprinter vans from 2006/04 E&P
The LevelM hydraulic jack system from E&P enables the convenient and fully automatic alignment of motorhomes in a perfectly horizontal position. Intelligent control electronics optimally distribute the weight of the vehicle across several jacks to avoid torsional forces. The set includes 4 jacks with a load capacity of 2000 kg each, which is sufficient for most motorhomes. The LevelM precisely compensates for unevenness and gradients, and the system can also be controlled manually. For special requirements, such as emptying the water tank, a specific tank emptying position can be saved. In manual mode, individual vehicle sides can also be raised individually.
A special feature of the system is the automatic integration of compatible air suspension systems. Before the leveling process, the air is released from the suspension, which provides optimal protection.
For maximum safety, the system is equipped with a lock that only allows activation when the ignition is switched off. In an emergency, the supports can be safely retracted using an emergency operation. LevelM combines comfort, precision and safety to create an ideal leveling system for demanding motorhome owners.
A permanently installed control panel is included in the delivery. For an additional charge, the system can also be supplied with a convenient, removable touch control panel (item no. 87 422), which can also be used as a remote control outside the vehicle.
The system cannot be subsequently converted from a standard to a touch control unit!
Features:
- completely hydraulic and fully automatic at the push of a button
- stable and secure stand
- horizontally in a few minutes
- 2000 kg lifting capacity per support
- Immobilizer: only works when the ignition is switched on
- manual emergency operation in case of power failure
- Weight from approx. 58 kg
Scope of delivery:

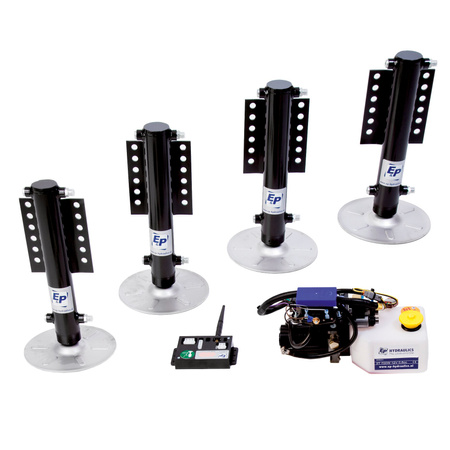

4 x hydraulic cylinders, central hydraulic unit, electronic control unit, permanently installed control panel, hose and connection material.
