PK23-3-SS PICO Blue Set Standalone I Silver - Rev23
PK23-3-SS PICO Blue Set Standalone I Silver - Rev23

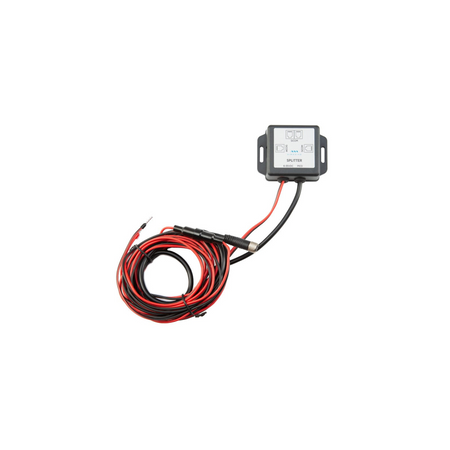

This set is for you if you want to dive deep into monitoring and see precisely what is happening in your system. With the PICO Blue set you can monitor 1 main battery or battery bank, up to 4 auxiliary batteries, and up to 6 tanks or temperatures. It features 4 devices.

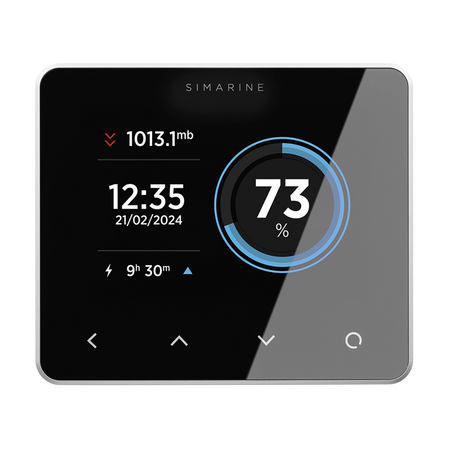

PICO battery monitor that displays data about batteries, tank levels, temperatures, fridge, solar, it helps you level your campervan, and even includes a barograph.

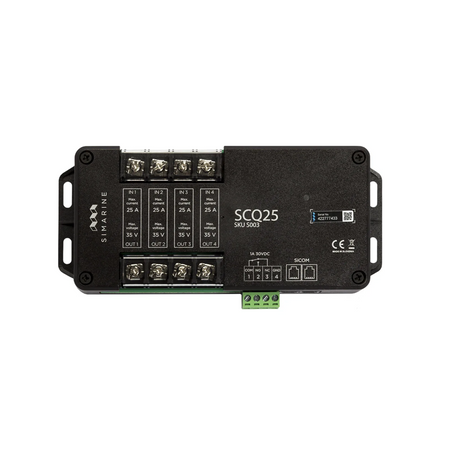

What makes this set a unique solution on the market is the SCQ25 module, which monitors the current flow of the 4 individual devices. So, if you want to know how much your fridge is using or how much your solar panels are charging, this set is what you need.
The SCQ25 module is here to reveal the truth. It allows for a maximum continuous current of 25 amps per channel. If you need more, you can wire the device in parallel across 2 channels and configure this setting in PICO.

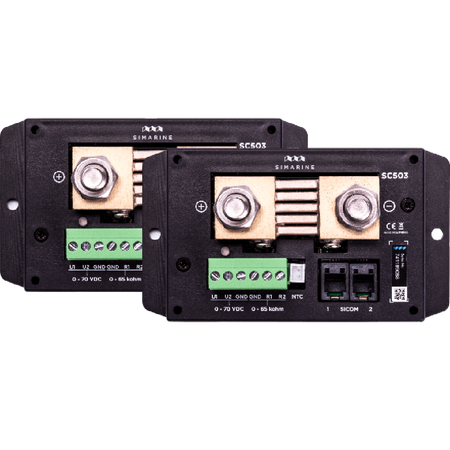

The SC503 shunt, which is included in this set, allows for a continuous current up to 500 amps. It has 2 resistance and 2 voltage inputs, and 1 socket for a temperature sensor.
It offers complete battery monitoring. You can use it to measure tank levels, temperatures, current of heavy consumers like inverters.

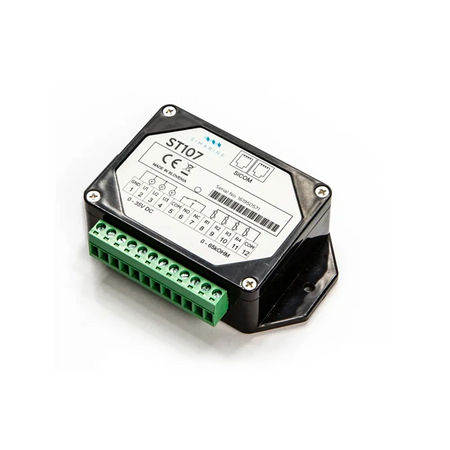

Additionally, the ST107 tank level and voltage module provides the system with 4 resistance and 3 voltage inputs. Its main purpose is to measure water, fuel, or other liquid levels, but you can also use it to measure voltage or temperature.
But, the features don’t end here. Both the ST107 and SCQ25 have 1 built-in programmable alarm signal relay that you can configure to output a signal of 1 amp when an alarm is triggered.
Technical charcteristics of individual elements
P202 PICO STANDALONE SILVER - Rev 2.0
Operating Power source voltage range: 6 - 35 VDCOperating Temperature range: -20°C up to 70°CPower consumption at 12 V Operating, WiFi On, 100 % illumination: 90 mAPower consumption at 12 V Operating, WiFi Off, 70% illumination: 35 mAPower consumption at 12 V Operating, WiFi Off, 0% illumination: 18 mAPower consumption at 12V Power Off, logger still active: 5 mADisplay capabilities - Current Range: -999.99 to +999.99 ADisplay capabilities - Current Resolution: 0.01 ADisplay capabilities - Voltage Range: 0 - 75 VDCDisplay capabilities - Voltage Resolution: 0.01 VDisplay capabilities - Voltage Amp hours (Ah): ±0,1 AhDisplay capabilities - Temperature Range: -40°C up to + 150°CDisplay capabilities - Temperature Resolution: 0,1°CWIFI Radio Frequency Band: 2,4 GHzMonitoring Capabilities UP TO number of Batteries: 6Monitoring Capabilities UP TO number of Shunts: 24Monitoring Capabilities UP TO number of Temperature sensors: 10Monitoring Capabilities UP TO number of Tank level sensors: 14Monitoring Capabilities UP TO number of Inclinometer sensors: 2Length (WITHOUT CONNECTOR), mm: 98Width (WITHOUT CONNECTOR), mm: 84Height (WITHOUT CONNECTOR), mm: 10Colour: SilverOperating Voltage range: 6 - 35 VDCOperating Temperature range: From -20°C up to 70°CPower consumption at 12 V Operating: 1.2 mACurrent measuring Range: 0.01 - 500 ACurrent measuring Accuracy: ± 1%Current measuring Resolution: 0.01 ACurrent measuring Sampling rate: 100 msMaximal current Continuous: 500 APeak current (<5min): 700 APeak current (<1min): 1000 AMaximal current Voltage drop at 300A: 41,6 mVMaximal current Maximal voltage on terminals: 35 VVoltage Inputs (U1, U2): 2Voltage Range: 0 - 75 VDCVoltage Accuracy: ± 0.3 %Voltage Resolution: 1 mVVoltage Sampling rate: 100 msResistance Inputs (R1, R2, JST socket): 3Resistance Range: 0 Ohm–65 kOhmResistance Accuracy: ±3 %Temperature sensor – NTC 10k Range: From –13°C to +80°CTemperature sensor – NTC 10k Accuracy (from –10 to +60°C): ± 3,0%Communication: SiCOMLength, mm: 125Width, mm: 70Height, mm: 22Battery connection: M10 boltsOperating Voltage range: 6 - 35 VDCOperating Temperature range: From -20°C up to 70°CPower consumption at 12 V Operating: 2.5 mACurrent measuring (per channel) Range: 0.01 – 25 ACurrent measuring (per channel) Accuracy: ± 1%Current measuring (per channel) Resolution: 0.01 ACurrent measuring (per channel) Sampling rate: 100 msMaximal current Voltage drop at 300A: 30 mVMaximal current Continuous: 25 APeak current (<1min): 35 ACurrent channels: 4Connectivity: SiCOMAlarm contact: 1Length, mm: 183Width, mm: 91Height, mm: 34Operating Voltage range: 6 - 35 VDCOperating Temperature range: From -20°C up to 70°CPower consumption at 12 V Operating: 2.5 mAVoltage Inputs (U1, U2, U3): 3Voltage Range: 0 – 75 VVoltage Accuracy: 1 mVVoltage Resolution: ± 0.3 %Voltage Sampling rate: 100 msResistance Inputs (R1, R2, 53, R4): 4Resistance Range: 0 Ohm – 65 kOhmResistance Accuracy: ± 3 %Resistance Sampling rate: 100 msConnectivity: SiCOMAlarm contact: 1Length, mm: 112Width, mm: 72Height, mm: 31Operacyjny Zakres napięcia
Operacyjny Zakres temperatur
Operacyjny Pobór mocy przy 12 V
Pomiar prądu Częstotliwość próbkowania
Maksymalny prąd Spadek napięcia przy 300A
Maksymalny prąd Maksymalne napięcie na zaciskach
Wejścia napięciowe (U1, U2) Zakres
Wejścia napięciowe (U1, U2) Dokładność
Wejścia napięciowe (U1, U2) Rezolucja
Wejścia napięciowe (U1, U2) Częstotliwość próbkowania
Wejścia rezystancji (R1, R2, R3, R4) Wejścia rezystancyjne (gniazdo R1, R2, JST) Liczba
Wejścia rezystancji (R1, R2, R3, R4) Wejścia rezystancyjne (gniazdo R1, R2, JST) Zakres
Wejścia rezystancji (R1, R2, R3, R4) Wejścia rezystancyjne (gniazdo R1, R2, JST) Dokładność
Czujnik temperatury – NTC 10k Zakres
Czujnik temperatury – NTC 10k Dokładność (od –10 do +60°C)
