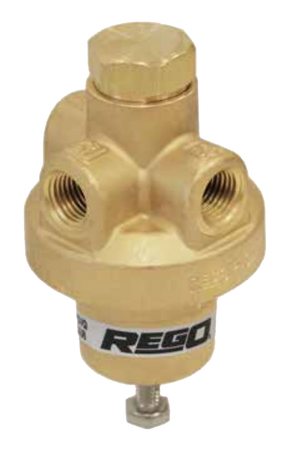

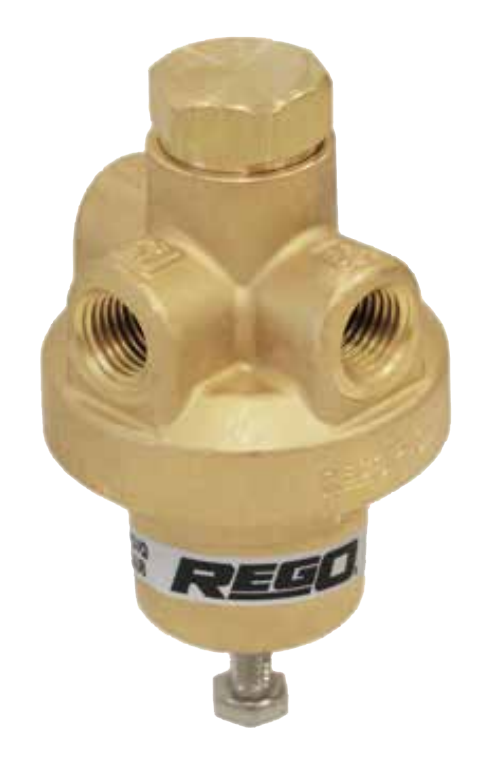

REGO CBC502-350 1/4” Pressure Builder / Economizer

REGO CBC502-350 1/4” Pressure Builder / Economizer
REGO CBC502-350 1/4” Pressure Builder / Economizer
REGO CBC502-350 1/4” Pressure Builder / Economizer
REGO CBC502-350 1/4” Pressure Builder / Economizer
Easy return of products within 14 days from the date of purchase without giving reasons

Application

The regulator combines the function of Pressure Building and Economizer functions in one compact unit. Available in Chart and Taylor-Wharton piping geometries and a variety of pressure ratings.

Features

  • All parts are copper alloy (brass), PTFE and stainless steel materials selected specifically for compatibility with cryogenic temperatures down to -320° F. (–196ºC)
  • PTFE seat helps assure a positive shut-off at cryogenic temperatures down to -320° F. (–196ºC)
  • High and low pressure builder/economizers are the same compact size designed to fit in close quarters.
  • Interchangeable with existing cryogenic regulator units.
  • Inlet screen helps prevent foreign material from entering the regulator.
  • Locknut is provided to maintain adjusting screw setting.
  • Maximum inlet pressure of 550 psig (37.9 barg)
  • Cleaned for oxygen service per CGA G-4.1
  • 100% Factory Tested.
  • Suitable for argon, CO2, nitrogen and oxygen.

Materials

  • Body Brass
  • Seat Disk  PTFE
  • Gaskets PTFE & Copper
  • Bonnet Brass
  • Diaphragm Bronze
  • Springs Stainless Steel
Cryogenic ¼” Combination Pressure Builder Economizer CBH502 CBC502 SeriesCombination Pressure Builder/Economizer CBH502 & CBC502 Series
rego 10 years warrantyPressure Builder/Economizer CBH502 & CBC502 Series

CBH502Series

Ordering Information

Part NumberInlet / Outlet Connections (F.NPT)"A""B""C""D"Factory Pressure Setting (psig)Operating Range (psig)
CBH502-015 ¼" ¼" 1.97” 2.89” 1.19” 15 psig (1.03 barg) 10-60 psig 0.7 - 4.1 barg
CBH502-125125 psig (8.6 barg) 50 - 175 psig 3.4 - 12.1 barg
CBH502-300300 psig (20.7 barg)50 - 175 psig 3.4 - 12.1 barg
CBH502-315315 psig (21.7 barg)50 - 175 psig 3.4 - 12.1 barg
CBH502-325325 psig (22.4 barg)50 - 175 psig 3.4 - 12.1 barg
CBH502-350350 psig (24.1 barg) 150 - 350 psig 10.3 - 24.1 barg
CBC502-01515 psig (1.03 barg)  10-60 psig 0.7 - 4.1 barg
CBC502-125125 psig (8.6 barg)  50 - 175 psig 3.4 - 12.1 barg
CBC502-300300 psig (20.7 barg)  50 - 175 psig 3.4 - 12.1 barg
CBC502-325325 psig (22.4 barg)  50 - 175 psig 3.4 - 12.1 barg
CBC502-350350 psig (24.1 barg)  150 - 350 psig 10.3 - 24.1 barg
Producer
Product code
CBC502-350
