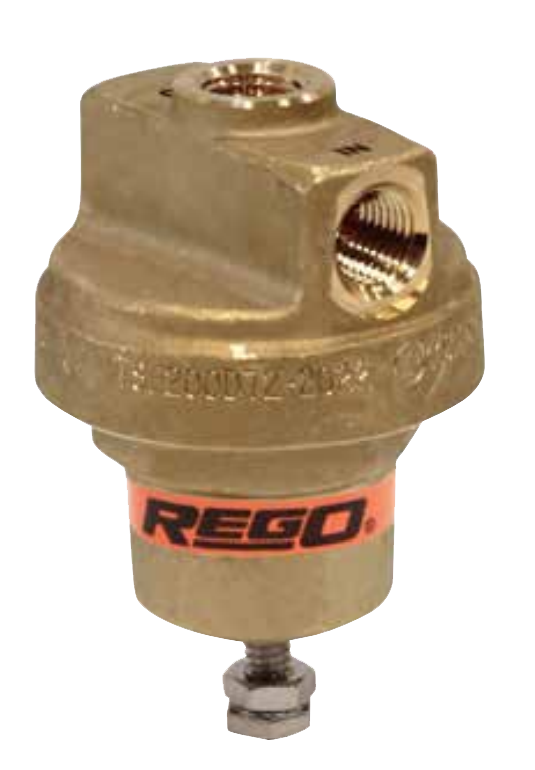

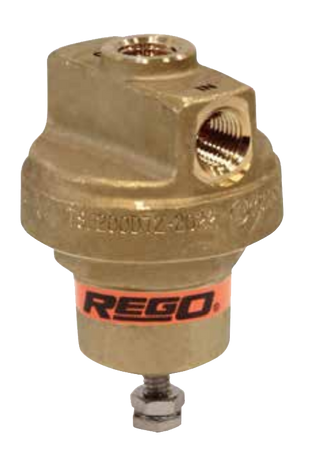

REGO ECL502-325 Cryogenic Economizer 1/4” F.NPT Pre-Set to 325 PSIG

REGO ECL502-325 Cryogenic Economizer 1/4” F.NPT Pre-Set to 325 PSIG
REGO ECL502-325 Cryogenic Economizer 1/4” F.NPT Pre-Set to 325 PSIG
REGO ECL502-325 Cryogenic Economizer 1/4” F.NPT Pre-Set to 325 PSIG
REGO ECL502-325 Cryogenic Economizer 1/4” F.NPT Pre-Set to 325 PSIG
REGO ECL502-325 Cryogenic Economizer 1/4” F.NPT Pre-Set to 325 PSIG
REGO ECL502-325 Cryogenic Economizer 1/4” F.NPT Pre-Set to 325 PSIG
Easy return of products within 14 days from the date of purchase without giving reasons

Application

ECL502 series cryogenic economizers are designed to be used as pressure reducing valves to automatically maintain a constant inlet or back pressure, normally closed at pressures below its set point and open at pressures above its set point. The ECL502 is primarily designed to assist in maintaining a desired system pressure ideal for Nitrogen, Oxygen, Argon and other cryogenic cylinder applications with a 100% performance improvement over RegO’s ECLXXX series. ECL502 series offers outstanding performance for maintaining LNG fuel line pressure.

Features

  • ECL502 series design provides premium flow characteristics allowing for fast pressure reduction while maintaining sensitive flow control at lower pressure settings.
  • All materials of construction- copper alloy, PTFE and stainless steel were selected for compatibility with cryogenic service.
  • 150 count mesh Monel screens installed into the inlet and outlet ports prevent debris from entering or damaging any downstream components.
  • Interchangeable with existing cryogenic economizer units.
  • Bi-directional flow for LNG fuel systems
  • Temperature range: -320°F to +165°F (-196°C to +74°C)
  • Max inlet pressure: Low Pressure Models ≤175: 375 psig (≤ 12,1: 25.3 barg), High Pressure Models >175: 550 psig (> 12,1: 37.9 barg)
  • Pressure setting range: 10-350 psig (0.7-24.1 barg)
  • Clean for oxygen service per CGA G-4.1
  • Design in accordance with ECE R110

Materials

  • Body Brass
  • Diaphragm Liner PTFE
  • Poppet Seat  Stainless Steel
  • Adjusting Screw Stainless Steel
  • Bonnet Brass
  • Screen Monel
  • Diaphragm Bronze
  • Springs Stainless Steel
Cryogenic Economizer ECL502 Rego
rego 10 years warranty Cryogenic Economizer ECL502 Rego Image 2

ECL Series

Ordering Information

Part NumberInlet / Outlet Connections (F.NPT) AWidth BCDEOperating Range (psig)
ECL502-22 ¼" 2.25” 57 mm 3.5” 89 mm .58” 15 mm 1” 25 mm 10-60 psig 0.7 - 4.1 barg
ECL502-100 50 - 175 psig 3.4 - 12.1 barg
ECL502-123
ECL502-140
ECL502-175
ECL502-325 150 - 350 psig 10.3 - 24.1 barg
Producer
Product code
ECL502-325
