Application

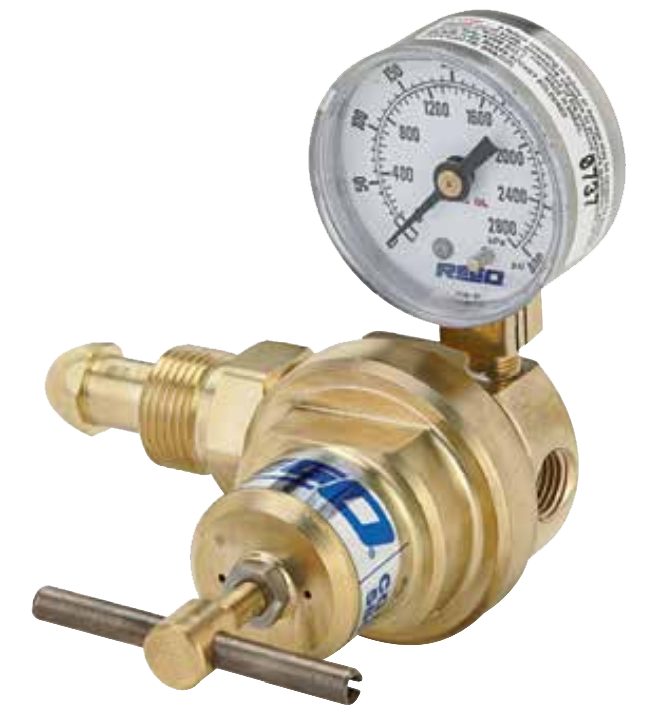

The RegO LCR Series pressure reducing regulator assembly controls the pressure from the gas use line or the discharge of any liquid cylinder with a flow capacity at least double the capacity of the cylinder vaporization coil. For use with oxygen, nitrogen, argon, or carbon dioxide liquid cylinders.
Features
- Easy adjusting screw to maintain pressure setting
- 100% Factory tested
- CGA fitting inlet connection for ready hook-up and ¼” F. NPT outlet.
- Gauges with applicable pressure ranges.
- Two delivery pressure ranges available
- Clean for use in Oxygen per CGA G-4.1
- Temperature range -320°F (-196°C) to + 165°F (74°C)
- Maximum inlet pressure 550 psig (37.9 barg)
- Inlet filter helps prevent foreign material from entering the regulator.
Materials
- Body Brass
- Seat Liner PTFE
- Bonnet Brass
- Diaphragm Gasket PTFE
- Diaphragm Bronze
- Backcap Gasket Copper
- Spring & Nut Stainless Steel
LCR Series
Ordering Information
Part Number | Gas | Liquid Cylinder Connection | Delivery Pressure Range |
---|---|---|---|
LCR200A580 | Nitrogen/Argon | CGA 580 | 25 to 200 psig (1.7-13.8 barg) |
LCR200A540 | Oxygen | CGA 540 | |
LCR200A320 | Carbon Dioxide | CGA 320 | 25 to 200 psig (1.7-13.8 barg) |
LCR350A580 | Nitrogen/Argon | CGA 580 | 100 to 350 psig (6.9-24.1 barg) |
LCR350A540 | Oxygen | CGA 540 | |
LCR350A320 | Carbon Dioxide | CGA 320 |
