RegO VFL-500203AA-7  LNG 7.25" Vent/Fill Breakaway

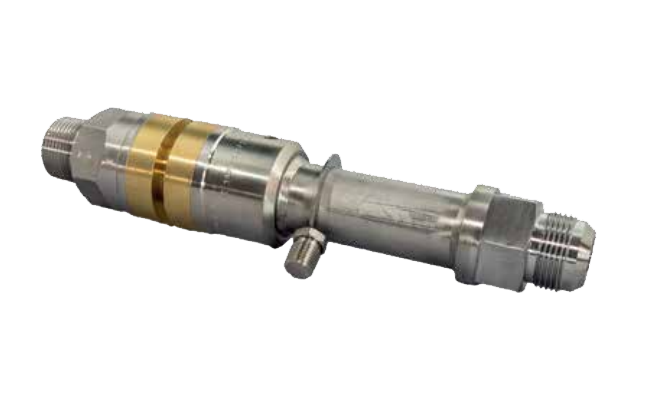

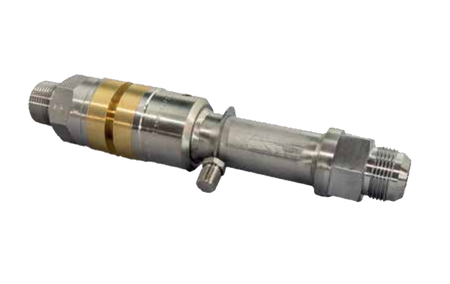

RegO VFL-500203AA-7 LNG 7.25" Vent/Fill Breakaway

14 days for easy returns
This product is not available in a stationary store
Safe shopping


The VFL Series are LNG vent/fill breakaway are designed to prevent pull away accidents, protect fill station/dispenser and eliminate unwanted product release


  • Max internal pressure 300 psig/20.7 barg (while fueling)
  • Max system pressure 550 psig/38 barg (static)
  • Temperature range -340°F to 140°F ( -206°C to 60°C).
  • Fill Breakaway Flow Capacity 50 GPM
  • Vent Breakaway Flow Capacity 10 GPM
  • 100% pressure tested


  • Housing : 304 Stainless Steel ASME SA479
  • Housing : Brass ASTM B16
  • Poppet : Brass ASTM B16
  • Spring : 302 Stainless Steel
  • Guide : Brass ASTM B16
  • Hose Adapter : 304 Stainless Steel ASME SA479
RegO VFL-500101NA-6 6" LNG Vent/Fill Breakaway

Ordering Information

Old Part NumberNew Part NumberInlet ConnectionOutlet ConnectionSensor PlugLengthAngled
14370VFL-500101NA-6 CGA 440 (⅝" 45° SAE)

¾" -14 NPTF Yes 6" CGA 440 (⅝ 45° SAE)
14390-4VFL-500202AN-71.00-11.5 MNTP SAE J514 ( 37° Flare JIC) No 7.25"
14390-8VFL-500203AN-7 M36x2.0 No
13740-4VFL-500202AA-7 SAE J514 ( 37° Flare JIC) Yes
VFL-500203AA-7 M36x2.0 Yes
14390-2VFL-500202AN-10 SAE J514 ( 37° Flare JIC) No 10.50"
VFL-500203AN-10 M36x2.0 No
13740-2VFL-500202AA-10 SAE J514 ( 37° Flare JIC) Yes
13740-6VFL-500203AA-10S M36x2.0 Yes
14585VFL-500202AN-10 SAE J514 ( 37° Flare JIC)

14390-5VFL-500202NN-10No SAE J514 ( 37° Flare JIC)
