UV-C LED water disinfection set
UV-C LED water disinfection set WM aquatec
The complete solution for clean water
The complete solution for water hygiene automatically ensures clean and safe drinking water. It offers a combination of pollutant filtration and water disinfection - all fully automatic and easy to use.
-
Filtration of dirt and pollutants:
Pollutants such as pesticides, heavy metals and chlorine are removed by an activated carbon filter . At the same time, the filter protects the system from dirt particles so that the downstream disinfection unit can work optimally. -
UV-C LED water disinfection:
The innovative UV-C LED technology ensures reliable disinfection of the water by making it germ-free immediately when it is drawn off - without the use of chemicals. The system is maintenance-free and does not require lamp replacement.

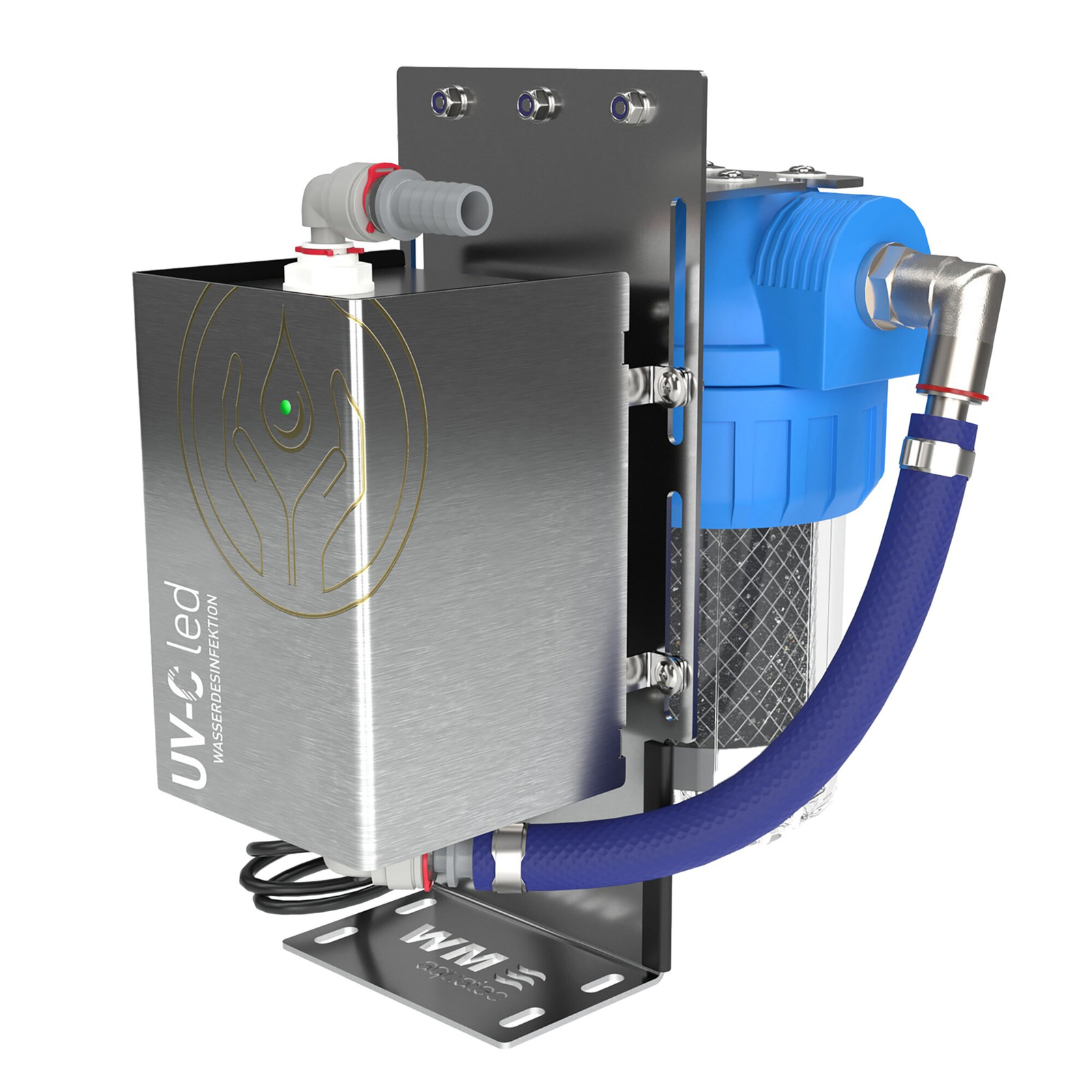

Scope of delivery:
- UV-C LED water disinfection unit, pre-assembled on a stainless steel mounting bracket
- Filter housing (size S) including activated carbon filter, also pre-assembled
Maintenance of the fresh water system:
It is important to maintain the entire system regularly to remove limescale and bacteria. For this, we recommend annual cleaning with DEXDA® Clean and KXpress Descaler , which can be used at the same time to save time. For automatic water conservation every time the tank is filled, the use of Silvertex or silver net is recommended.
Technical data
Flow rate: max. recommended up to 8.0 l/min
Water connections: 9/10 mm and 12/13 mm hose nozzle
Water pressure: max. 8.3 bar
Ambient temperature: max. 55 °C
recommended water temperature: 0 – 38 °C
Lifespan of UV unit: 5000 h water extraction
Disinfection performance of UV unit: up to 99.999%
Current consumption UV unit max.: 0.02 A (standby)/1.2 A (operating mode)
Supply voltage UV unit: 11 – 18 V DC
UV unit power max.: 14 W
With this solution you have fresh and clean water at all times – ideal for motorhomes, boats and other mobile applications.
