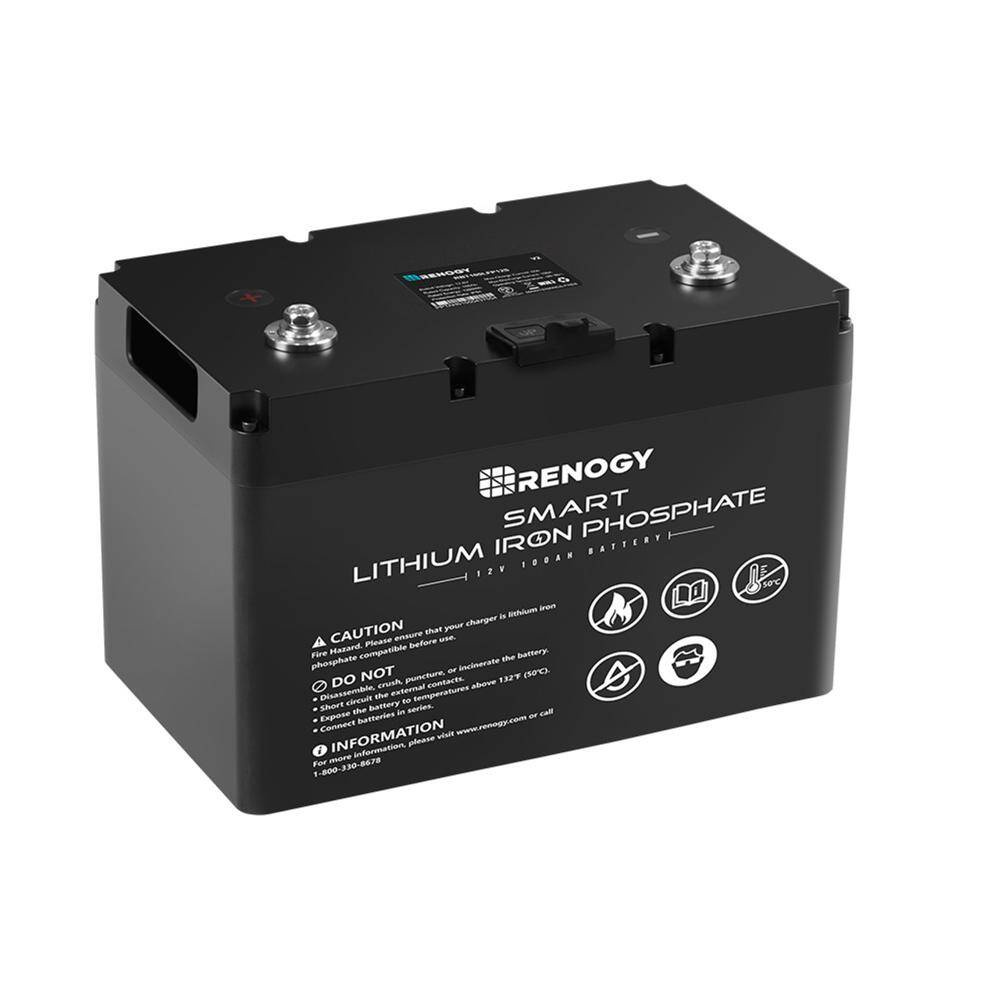

Akumulator 12V 100Ah Smart LiFePO4 Renogy ONE M1
The Renogy Smart Lithium Iron Phosphate Battery
The Renogy Smart Lithium Iron Phosphate Battery enables auto-balance among parallel-connections and provides more flexibilityfor battery connection. The integrated smart battery management system (BMS) not only protects this 12V 100Ah LiFePO4 batteryfrom various abnormal conditions but monitors and manages the charging/discharging process. The state-of-the-art battery cellsensure a long cycle life and exceptional discharge performance. If you’re searching for a deep cycle battery for caravan,cabin, or marine use, then this lightweight, auto-balanced, ultra-safe, long-cycle-life lithium-ion battery is the perfectplug-and-play solution for you! The Renogy Adventurer Li and Rover charge controller are fully compatible with this battery.Please kindly note that the new Renogy BT-2 bluetooth module with RJ45/RS485 port is compatible with this smart Li battery.If you have any questions regarding this product, please submit a case！ When connecting the batteries in parallel, a communicationcable is not needed to enable the auto-balancing function. When the battery voltage drops to 0V, please reactivate the batteryusing an external charging device that has the lithium battery activation function. Make sure to tighten the battery terminalssecurely and use appropriate size wiring. Failure to make a secure connection could result in overheating and battery damage.DO NOT string the battery in series. It is made ONLY for 12V parallel connections using the batteries of the same manufacturerand model. Please avoid too high a voltage difference between paralleled batteries, despite the auto-balancing function, toavoid triggering the over-current protection.
Specifications
- Rated Capacity: 100Ah
- Insulation Resistance: 500V DC, ≥ 10 MΩ
- Operating Charge Temperature: 32~131°F/ 0~55°C
- Maximum Continuous Charging Current: 50 A
- Operating Discharge Temperature: -4~140°F/ -20~60°C
- Maximum Continuous Discharging Current: 100 A
- Voltage Range: 10~14.8 V
- Communication Port: RJ45 (RS485 Protocol)
- Nominal Voltage: 12.8V
- Storage Temperature: -13~149°F/ -25~65°C
- Connection Method: Parallel (up tp 8)
- Cycle Life: ≥4000 Cycles @ 80% DoD
- Dimensions:11.4 x 6.8 x 7.4 inch / 289 x 172 x 187.5 mm
- Weight: 26 lbs. / 11.8 kg
- Certifications: UN38.3, MSDS, CE, UKCA, PSE, FCC, MIC (Lithium Cell)
- Battery Terminal Bolts: M8x1x14mm
- Protection Rate: IP54
- Additional Terminal Bolts: M8x1x20mm
- Built-in BMS: Over 20+ BMS Warnings & Protections
