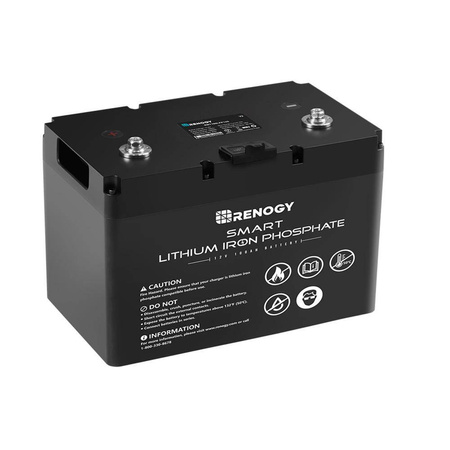

Akumulator 12V 100Ah Smart LiFePO4 Renogy Solar
The Renogy Smart Lithium Iron Phosphate Battery
The Renogy Smart Lithium Iron Phosphate Battery enables the auto-balancing among parallel connections and provides more flexibilityfor the battery bank configuration. The integrated battery management system (BMS) not only protects the battery from variousabnormal conditions but monitors and manages the charging and discharging process. The state-of-the-art battery cells ensuresan extended cycle life and exceptional discharge performance. With built-in intelligent self-heating, the battery is rechargeableeven in low-temperature conditions. If you’re searching for a deep cycle battery for caravan, cabin, or marine use, then thislightweight, auto-balanced, ultra-safe, long-cycle-life lithium battery is the perfect plug-and-play solution for you! Ifyou have any questions regarding this product, please submit a case！ NOTE: The normal operation of the self-heating functionrequires a stable charge current greater than 4A for each battery in the parallel battery bank. The self-heating functionwill not be able to operate normally if a PWM charge controller or a small current battery charger is used to charge the batteryat low temperatures.
Specifications
- DO NOT string the battery in series. ONLY connect batteries of the same manufacturer and model in parallel.
- Please avoid too high a voltage difference between paralleled batteries, despite the auto-balancing function, to avoid triggering the over-current protection.
- Rated Capacity 100 Ah
- Dimensions 12.99 x6.77 x 8.43 inch / 330 x 172 x 214mm
- Nominal Voltage 12.8 V Weight 28.7 lbs. / 13.0 kg
- Voltage Range 10~14.8 V
- Charge Temperature 32~131°F/ 0~55°C
- Cycle Life(0.5C,25℃) 80%DOD 2000 Cycles
- Discharge Temperature -4~140°F/ -20~60°C
- Maximum Continuous Charging Current 50 A
- Protection Rate IP65
- Maximum Continuous Discharging Current 100 A
- Communication Port Modbus
- Standard Operation Temperature 25℃±5℃ Certifications
- Storage Temperature -13~149℉ / -25~65℃
- UN38.3 YES
- MSDS YES
- FCC YES
- Connection Method Parallel(Up to 8)
- Accessories M8 Bolts x 2
- Warranty 3-year material and workmanship warranty
