Akumulator Core 12V 100Ah Deep Cycle LiFePO4

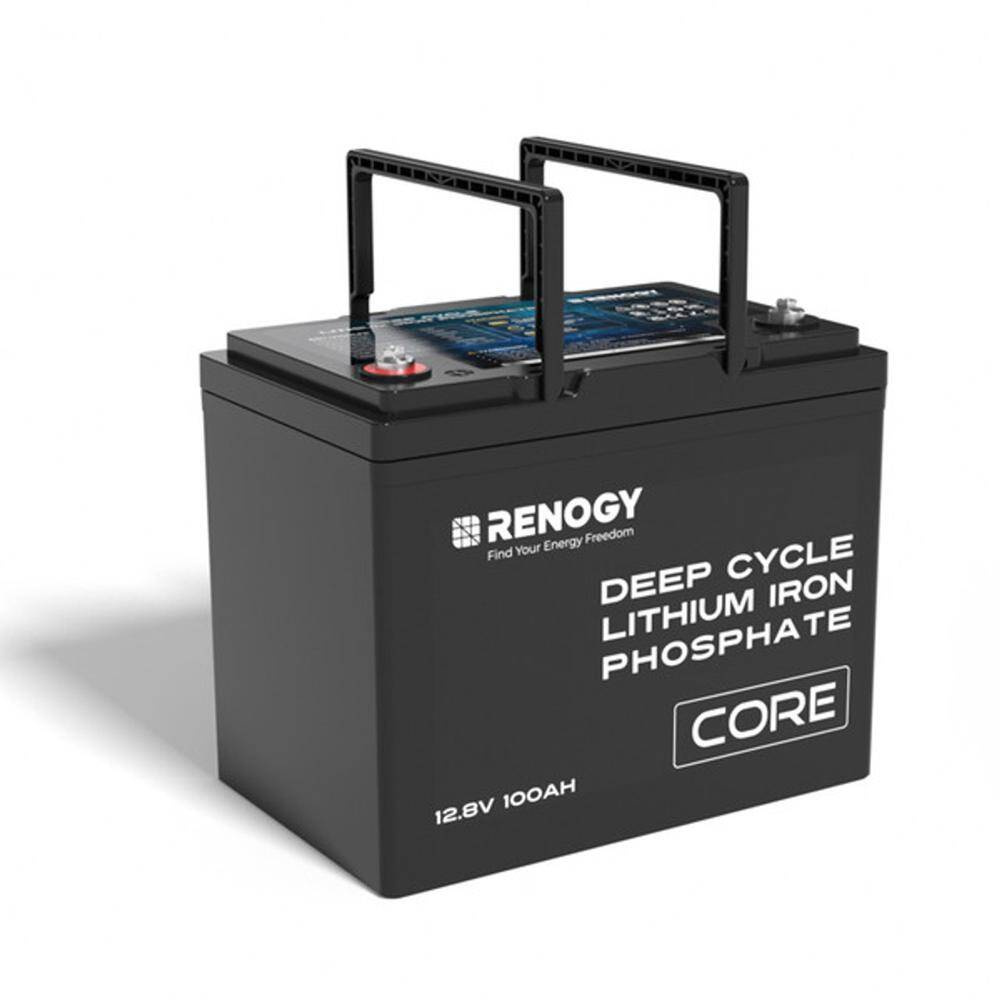

The Renogy Core Series 12.8V 100Ah Deep Cycle Lithium Iron Phosphate Battery
The Renogy Core Series 12.8V 100Ah Deep Cycle Lithium Iron Phosphate Battery is designed for the drop-in replacement of deep-cyclelead-acid batteries with its standard Battery Council International (BCI) group size. Weighing only half of the lead-acidcounterparts, the battery can be safely discharged to 100% Depth of Discharge (DOD), delivering twice the energy. Manufacturedwith automotive-grade battery cells, the battery features the highest safety standards and an extended 5000+ cycle life. Inaddition, the reliable Battery Management System (BMS) provides comprehensive protection to the battery. Battery Cell TypeLithium Iron Phosphate Rated Capacity (0.5C, 25°C) 100Ah Nominal Voltage 12.8V Voltage Range 10V to 14.8V Cycle Life (0.5C/1C,25°C) 5000 Cycles (80%EOL, 80%DOD) Dimension 10.6 x 6.9 x 8.6 in / 260 x 169 x 211 mm Operation Parameters Charge Voltage14.4V Maximum Continuous Charge Current 100A Maximum Continuous Discharge Current 100A Peak Discharge Current 300A@10s Charge Temperature Range 32°F to 131°F (0°C to 55°C) Discharge Temperature Range-4°F to 140°F (-20°C to 60°C) Storage TemperatureRange-13°F to 149°F (-25°C to 65°C) Operation Relative Humidity 10% to 95% Weight 23.15 lbs. / 10.5 kg Connection MethodSeries & Parallel (4S4P) Terminal Bolt Size M8 x 1.25 x 15 mm Recommended Terminal Torque 88.5 inch·lbs to 106.2 inch·lbs/ 10 N·m to 12 N·m Protection Rating IP65 Certification MSDS, UN38.3, FCC, CE, PSE, and UKCA
