DCC50S 12V 50A Pokładowa ładowarka DC-DC z MPPT(Nowa wersja)

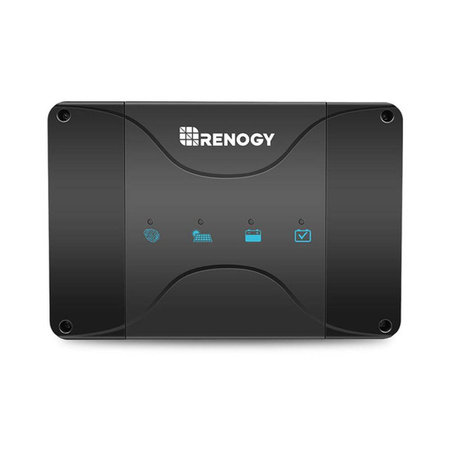

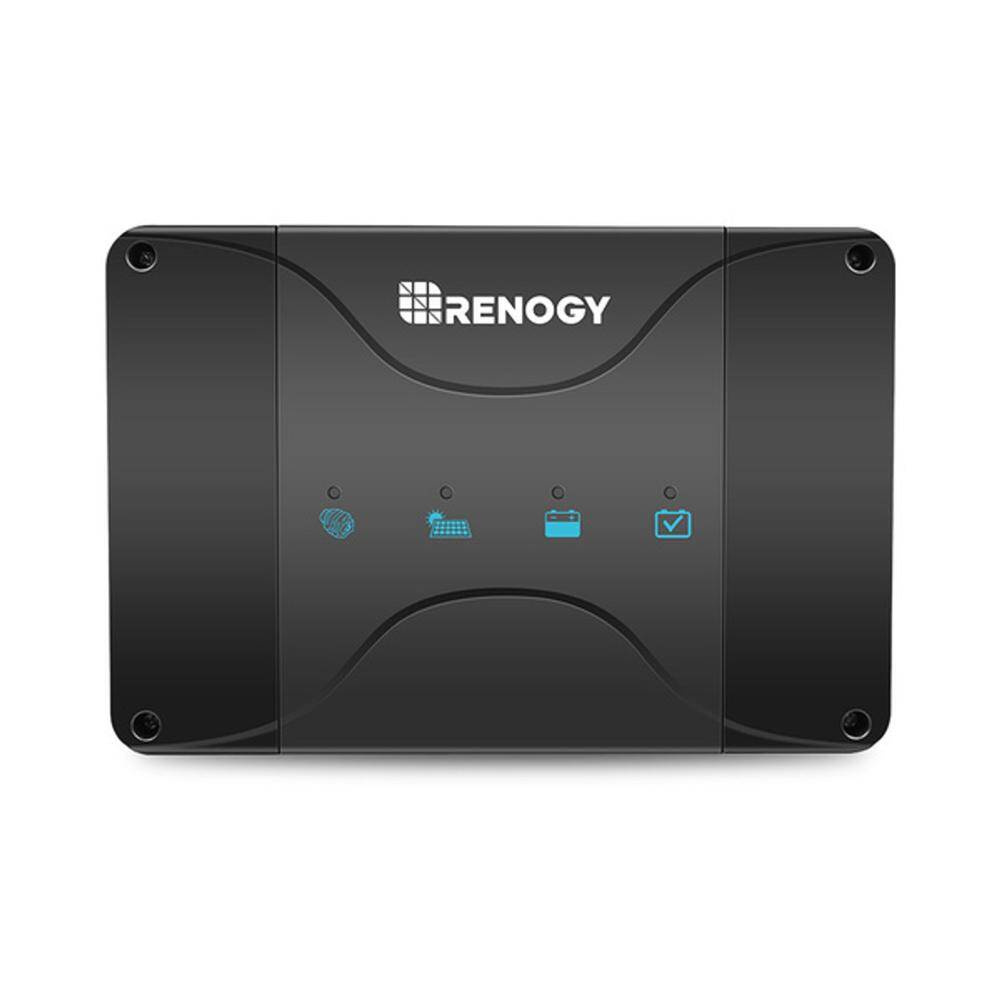

DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT
Renogy's DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT is designed to give you options! This multi-stage, multi-inputbattery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panelsconnected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow yoursolar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer!And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you'reusing Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusivelyusing the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in realtime.
Specifications
- System Voltage : 12VDC
- Battery Voltage Range : 9-16VDC
- Maximum Charging Current : 50A (25A Alternator / 25A PV)
- Battery Types : SLD/AGM, GEL, FLD, LISER
- Backup Battery Charging Mode : MPPT
- Charging Efficiency : Up to 97%
- Max. Solar Input Voltage : 25V
- Maximum Solar Input Power : 660W
- Alternator Input Voltage : Traditional Alternator: 13.2-16VDC Smart Alternator (Euro 6): 12-16VDC"
- Maximum Alternator Input Power : 660W
- Self-consumption : 60mA
- Operating Temperature Range : -31°F~149°F / -35°C~65°C
- Dimensions : 9.6 x 5.7 x 3.0 in / 244 x 146 x 77 mm
- Weight : 3.13 lbs / 1.42 kg
- OPTIONS: BT-2 BLUETOOTH MODULE
- Communication Protocol: RS485
- Port Type: RJ45
- Input Voltage: 5V or 12V
- Protection Grade: IP54
- Standby Power Consumption: 0.04W
- Operating Power Consumption: 0.05W
- Communication Range: ≤82ft
- Serial Baud Rate: Fixed Baud Rate 9600bps
- Cable Length: 5.00 m (16.4 ft)
- Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
- Installation Dimensions: 67.3 φ3.5mm（2.66 φ 0.14in）
- Operation Temperature: -20℃~85℃（-4°F to 185°F）
- Weight: 130g (4.58oz)
- OPTIONS: MONITORING SCREEN
- Supply Voltage: 5VDC
- Communication Port: RJ45 (RS485 Protocol)
- Supply Current: 30mA
- Display: Backlit LCD
- Power Consumption: <1W
- User Interface: 4 Front Menu Buttons
- Operating Temperature Range: -4°F~113°F / -20°C~45°C
- Mounting System: Wall Mount
- Voltage Accuracy: ±0.1V
- Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm
- Current Accuracy: ±0.1A
- Weight: 0.14 lbs / 62 g
- Wire Length: 16.4ft / 5m
- Certifications: FCC
- Material and workmanship warranty 2 Year
