Elastyczny Panel Monokrystaliczny 100W 12V Renogy
100 Watt 12 Volt Flexible Monocrystalline Solar Panel

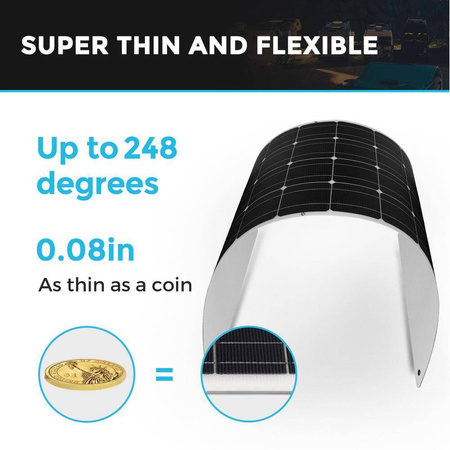

Traditional solar panels are rigid and often enclosed in tempered glass. The Renogy 100W Flexible Solar Panel is anythingbut traditional. Perfect for marine use or placement on top of a van or vehicle, the Renogy 100W Lightweight Solar Panel isthin and capable of flexing up to 248 degrees. At 4 pounds, this flexible solar panel weighs only a quarter of its traditional100W counterpart. Highly flexible, this lightweight panel can easily be installed on curved surfaces. This panel can alsobe used for other various applications, including providing power on a boat or teardrop trailer. Mounting Recommendation:Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used fornon-mobile applications. For detailed installation methods, please consult a local contractor for guidance. Note: No otheraccessories are equipped with the single panel. Please email us or refer directly to product listings if you want to knowmore information about accessories.
Specifications
- Solar Cells: 36 Monocrystalline cells
- Junction Box: IP 68
- Panel Dimensions: 48x21.6x0.08 In /121.92 x 54.9 x0.20 cm
- Weight: 4.2lbs (1.9kg)
- Out Cables: 12 AWG, 17.7 In(Negative Cable), 5.9 In(Positive Cable)
- Connectors: Single-contact Electrical Connectors
- Maximum Power at STC*: 100 W
- Module Efficiency: 15%
- Optimum Operating Voltage (Vmp): 18.9 V
- Optimum OperatingCurrent (Imp): 5.29A
- Open-Circuit voltage (Voc): 22.5V
- Short-Circuit Current (Isc): 5.75A
- Maximum System Voltage: 600 VDC
- Maximum Series Fuse Rating: 15 A
- Solar Cells: 36 Monocrystalline cells
- Overall thickness(with junction box): 22mm / 0.87In

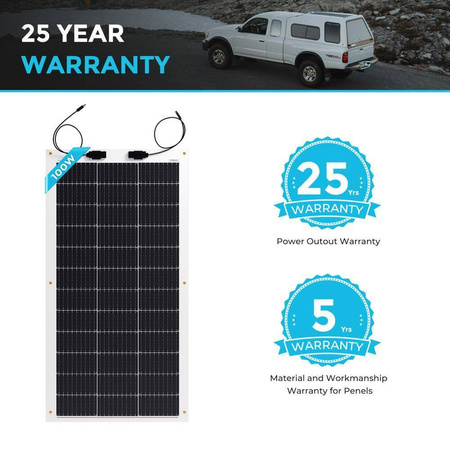

- 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate
- 5-year material and workmanship warranty
