Hub komunikacyjny do modułu BT-2

Bluetooth Communication Hub for BT-2 Bluetooth Module

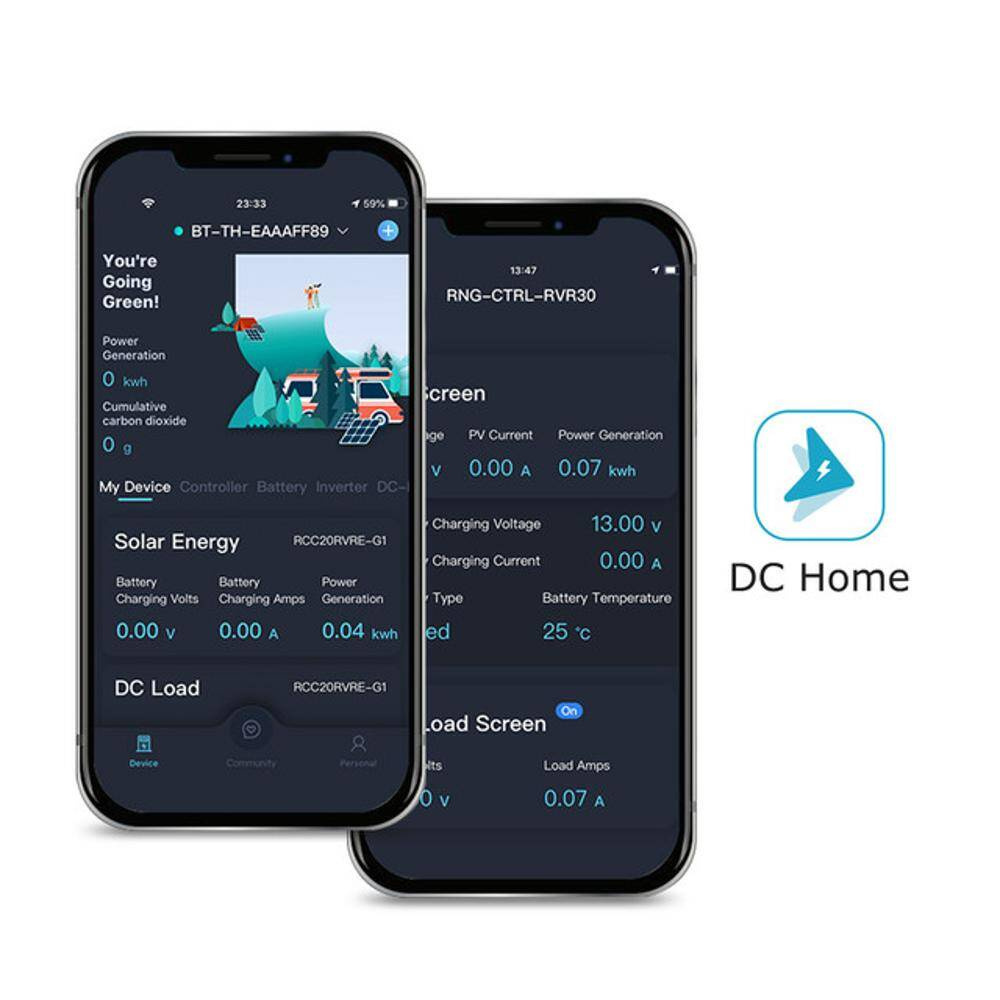

The Renogy Communication Hub allows you to connect multiple Renogy appliances with an RJ45 port and RS485 communication protocolto just one BT-2 Bluetooth module. Now you can use your phone to monitor multiple devices at the same time! The Renogy CommunicationHub also supports both RS485 and CAN communication protocols – giving you a wider selection of compatible devices.

Specifications

• Communication Protocol: RS485 CAN
• Port Type: RJ45
• Input Voltage: 9V - 60V
• Protection Grade: IP54
• Standby Power Consumption: 0.324W
• Operating Power Consumption: <0.35W
• Communication Range: ≤≤82ft
• Serial Baud Rate: RS485-9600 bps CAN-500 kbps
• Cable Length: 5.00m (16.4ft)
• Dimensions: 6.29 X 1.89 X 0.91in (160 x 48 X 23mm)
• Installation Dimensions: 151.4 φ3.5mm（5.96 φ 0.14in）
• Operation Temperature: -20℃~85℃（-4°F to 185°F）
• Weight: 125g (4.41oz)
• WARRANTY INFORMATION: Accessories 1-year material warranty
