Moduł Bluetooth BT-2 do produktów Renogy (port R485)

BT-2 Bluetooth Module for Renogy Products w/ RS485 Port

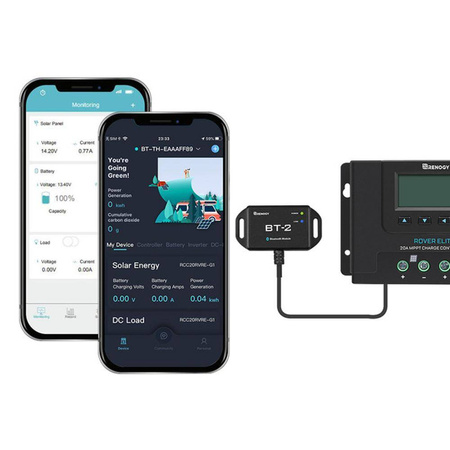

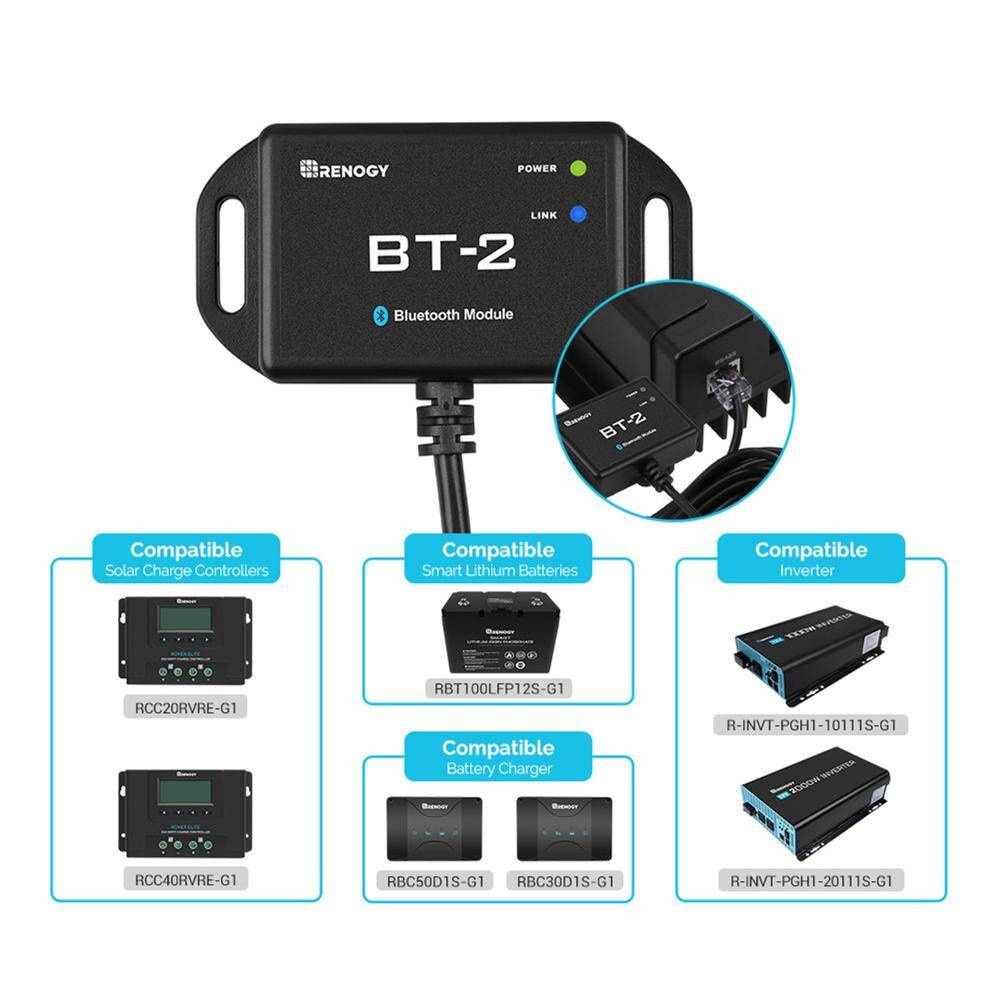

The Renogy BT-2 is the new generation Bluetooth module for select Renogy solar charge controllers, DC-DC battery chargers,smart lithium batteries, and inverters. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of thesystem data and allows users to change parameters through the Renogy DC Home smartphone App. The Renogy DC Home App can helpmake your off-grid power system smarter by giving you access to configure, monitor, update, and diagnose your Renogy productsfrom the convenience of your smart phone or tablet.

Specifications

• Communication Protocol: RS485
• Port Type: RJ45
• Input Voltage: 5V or 12V
• Protection Grade: IP54
• Standby Power Consumption: 0.04W
• Operating Power Consumption: 0.05W
• Communication Range: ≤82ft / 25m
• Serial Baud Rate: Fixed Baud Rate 9600bps
• Cable Length: 5.00 m (16.4 ft)
• Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
• Installation Dimensions: 67.3 φ3.5mm（2.66 φ 0.14in）
• Operation Temperature: -20℃~85℃（-4°F to 185°F）
• Weight: 130g (4.58oz)
• WARRANTY INFORMATION: Accessories1-year material warranty
