Moduł monitorowania RENOGY ONE M1

RENOGY ONE M1

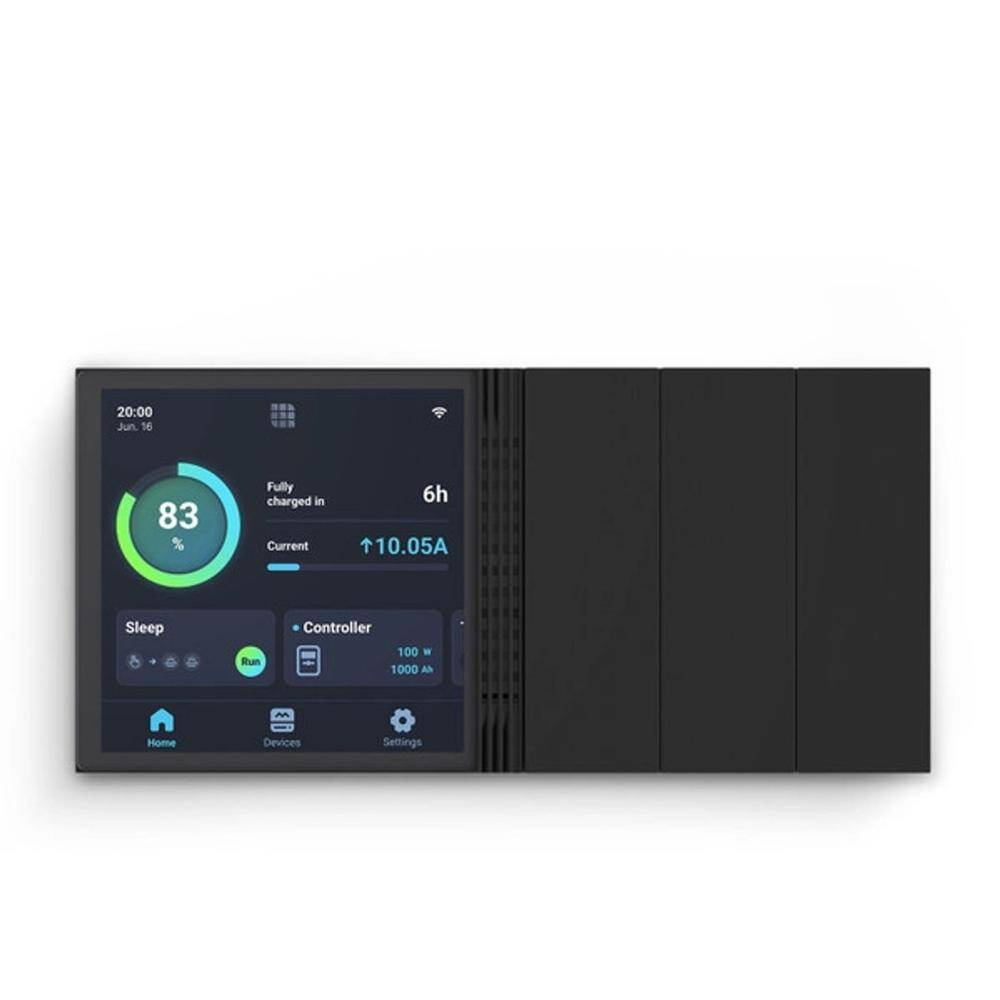

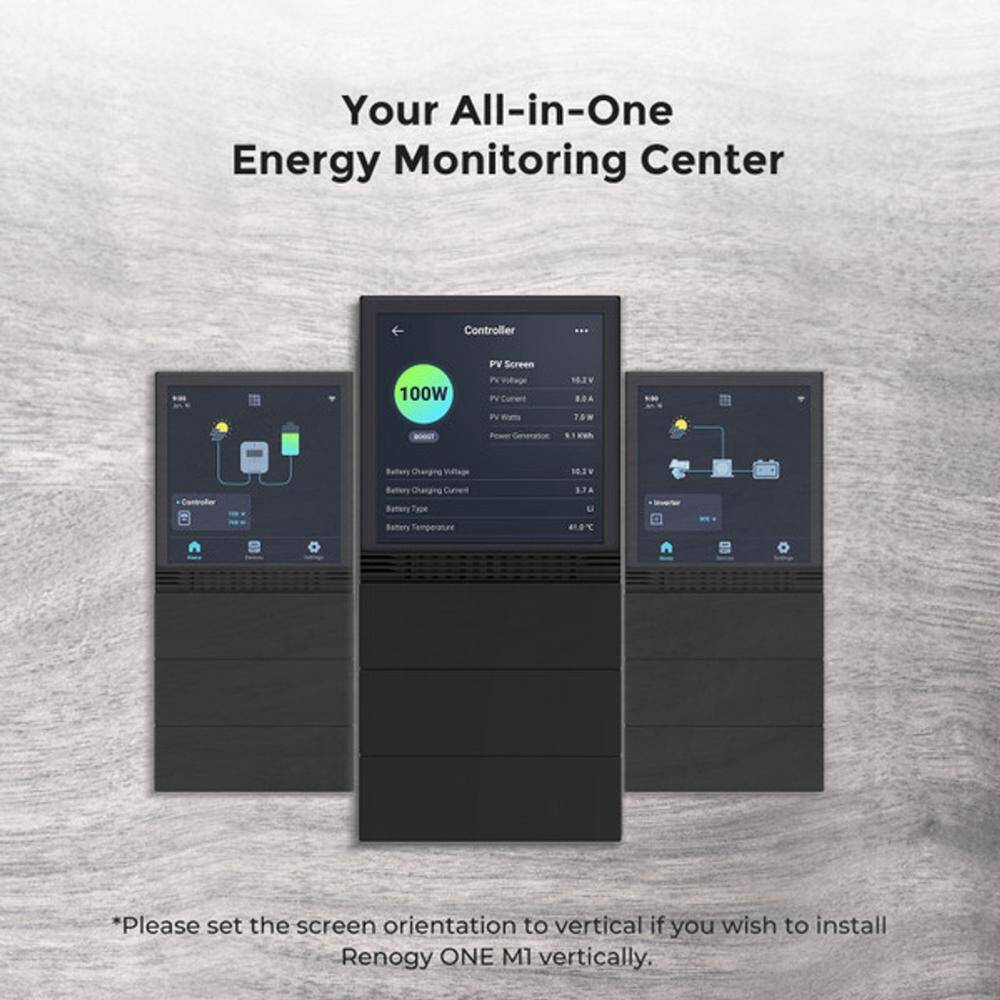

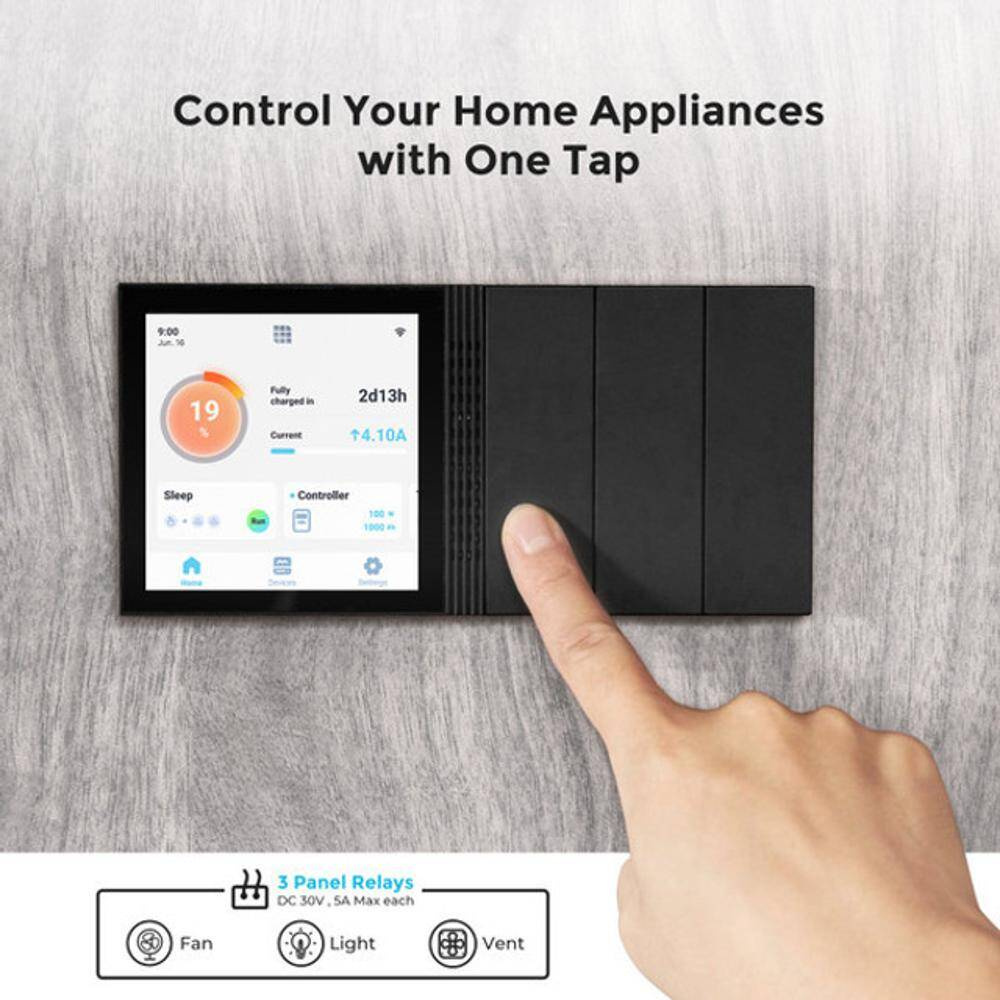

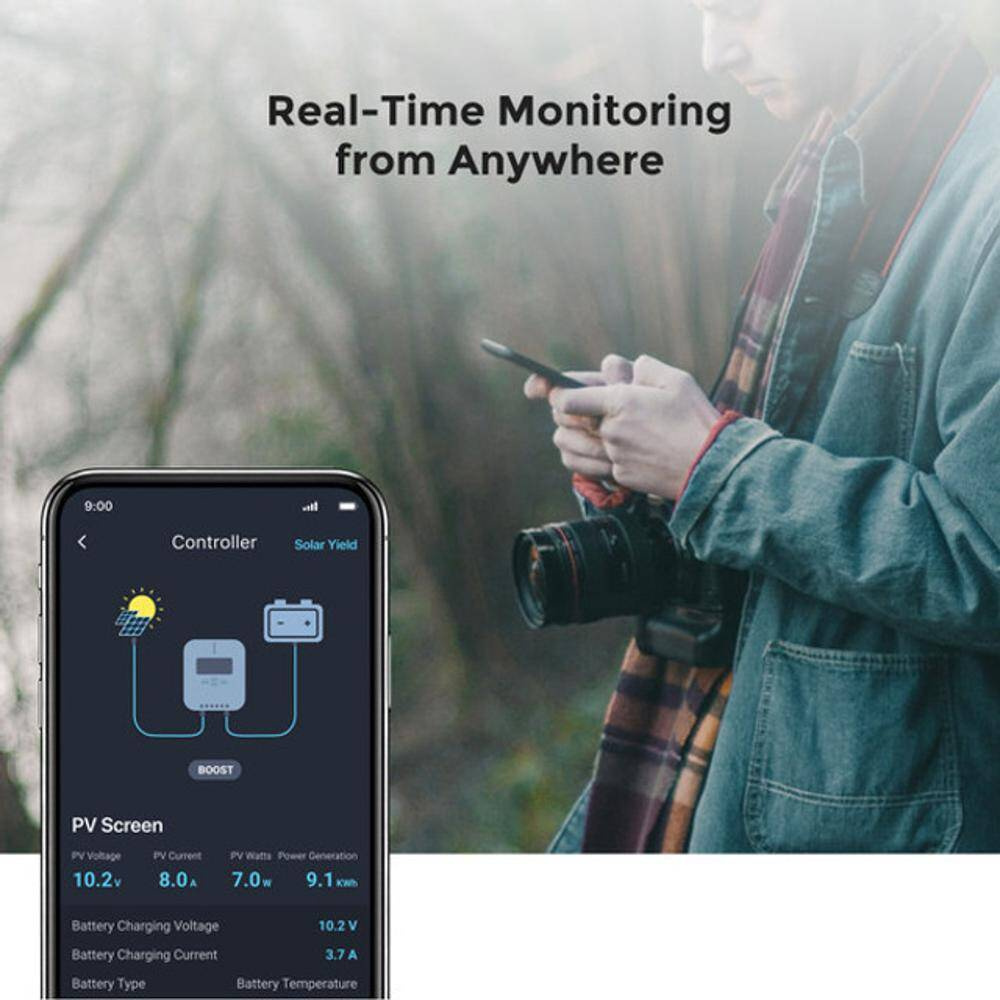

Introducing Renogy ONE M1, your all-in-one energy monitoring and off-grid smart living center that revolutionizes comfortwhen you live in your off-grid home or camper van. Renogy ONE M1 is the heart of your off-grid system with a sleek, flush-mounttouchscreen that looks great anywhere. A 4″ HD display lets you monitor every compatible Renogy device in your home from onescreen. And with the DC Home app you’ll have the same system monitoring and energy management wherever you go on your smartphone.=Live off-grid without compromising comfort with Renogy ONE M1. This power monitor gives you control of up to 3 devices ata time through the direct connection with panel relays. For instance, you can create an “Evening” mode that automaticallyturns on lights or a “Sleep” mode that dims the lights and shuts down the connected appliances. Renogy ONE M1 delivers peaceof mind with enhanced security features for your off-grid home or RV. This off-grid home energy monitor is compatible withour Door and Window Sensors, Motion Sensors and sends instant alerts right to your DC Home app if there’s a security breach.For any questions or comments about this product, submit a case on renogy.com. *Smart accessories are required for certainfeatures.

Specifications

• Model: RMS-LP4-G2
• Load: ≤30V DC, 5A Max
• Wireless Communication: Wi-Fi (IEEE 802.11b/g/n 2.4 GHz); Bluetooth 2.1/4.2 and Bluetooth LE; Zigbee (IEEE 802.15.4)
• Power Consumption: < 2.5W (standby)
• Touch Screen: 4 inches (480 x 480p) White backlight with adjustable brightness
• Installation: Flush mounting
• Casing Material: PC+ABS V0
• Operating Temperature: -20℃ to 50℃ (-4℉ to 122℉)
• Operating Humidity: 0% to 95% RH
• Operating Altitude: Less than 2000 m above sea level
• Power Supply: Rated Power 3.5W 1.Power Port: 8V DC-16V DC 2.Type-C Port: 5V DC
• Connection: Zigbee (IEEE 802.15.4)
• Ports: 1.USB Type-C (5V DC) 2.RJ45 (CAN & RS485) 3. 2-pin 2.54 mm pluggable terminal block (12V DC)
• Protocols: RV-C/Modbus/Zigbee 3.0
• Color: Black
• Dimension: 181.8 x 86.8 x 42.2 mm (7.16 x 3.42 x 1.66 in)
• Weight: 0.63 lbs/286 g
• Applicable Place: Indoor
• CERTIFICATIONS: CE, FCC: YES
• Warranty information: 2-year Prorated Warranty
