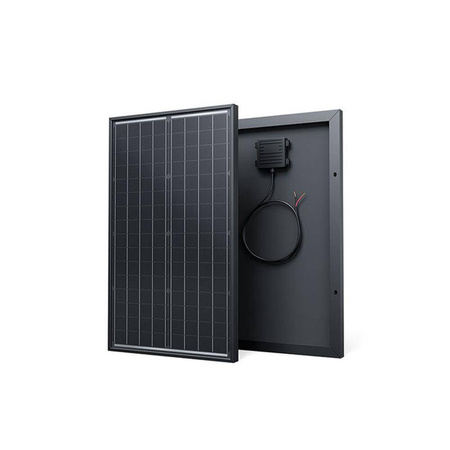

Panel Monokrystaliczny 320W 12V Renogy 2 szt.

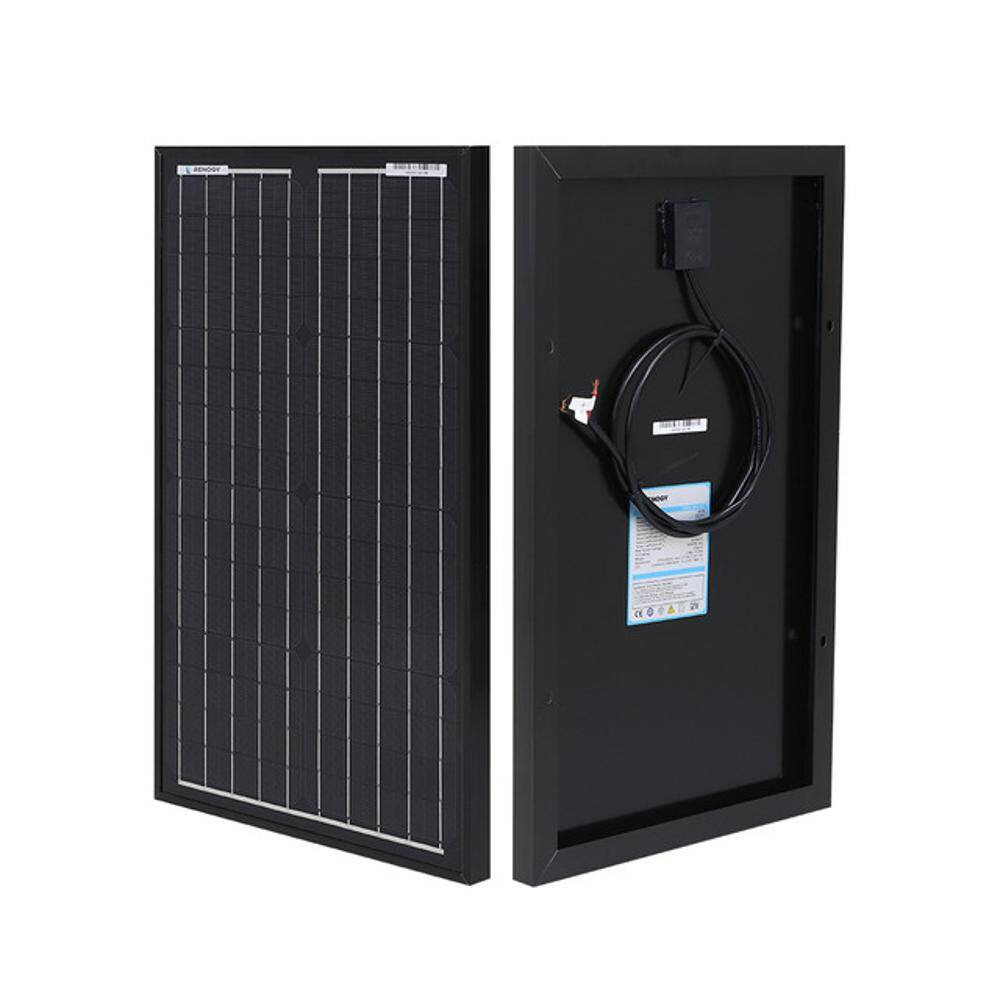

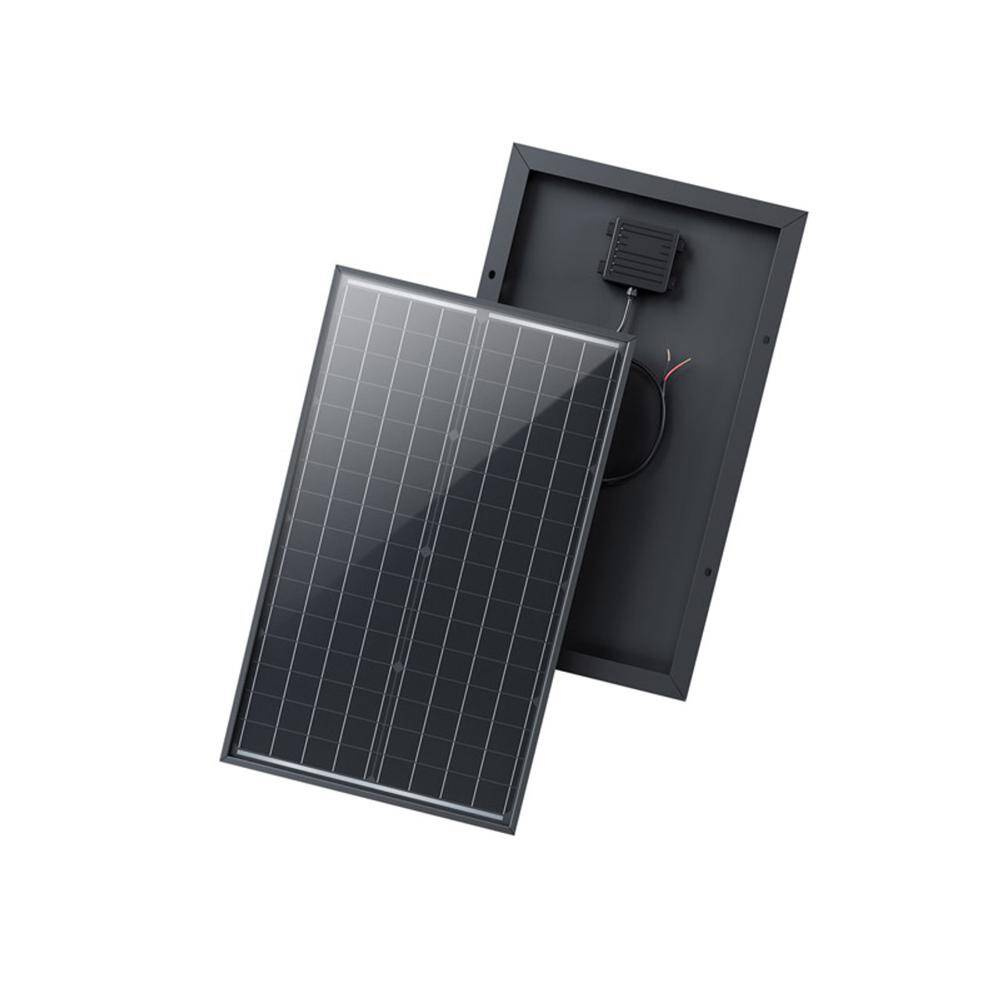

320 Watt Monocrystalline Solar Panel
Renogy 320W Monocrystalline Solar Panel can provide about 1600 Watt-hours of electricity per day (5-6 hours of direct sunlight),ensuring a consistent output over 80% for 25 years. The passivation layer added to the backside of PERC solar cells makesthem different from monocrystalline photovoltaic cells. The layer increases the panel's energy generation by boosting efficiency.Bypass diodes protect the solar cells from overheating and allow the solar panel to continue working by bypassing the underperformingcells when acci-dental shading happens. The anti-reflective low iron-tempered glass has a high transparency of up to 91.5%,allowing direct sunlight to be converted to more electricity. Also, this glass is rugged enough to resist external impact.The corrosion-resistant aluminum frame, and the glass that can withstand 5400Pa of snow loads and 2400Pa of wind pressureallow solar panels to stay outside for a long time without damage or performance loss.
Specifications
- Output Cables: 12 AWG (0.9m length)
- Cell Type: Monocrystalline (156 x 156 mm)
- Number of Cells: 60
- Junction Box: IP68(1m, 1h) Rated
- Solar Connectors: IP67
- Maximum Power at STC: 320W
- Cell Efficiency: 21%
- Optimum Operating Voltage (Vmp): 33V
- Open-Circuit Voltage (Voc): 40.3V
- Optimum Operating Current (Imp): 9.70A
- Short-Circuit Current (Isc): 10.23A
- Operating Temperature: -40°F - 185°F / -40°C - 85°C
- Maximum Series Fuse Rating: 20A
- Certifications: CE, ISO, UL
- Maximum System Voltage: 1500V DC (UL)
- Weight: 39.7lbs / 18kg
- Dimensions: 65.6 x 39.4 x 1.4 in / 1666*1000*35 mm
- Material and Workmanship Warranty: 10 Years
