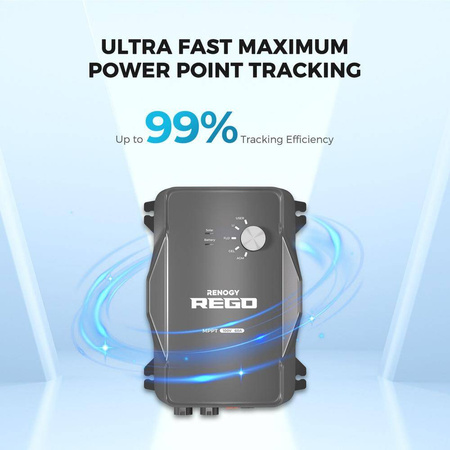

REGO 12V 60A MPPT Solar Charge Controller
The REGO 12V 60A MPPT Solar Charge Controller focuses on the simplified installation and comprehensive protections for thewhole solar system. Plug-and-play hookups for rapid connection, save on installation time than traditional controllers. Theintegrated high BPU (Battery Protect Unit) technology achieves the highest protection against battery cell damage and batteryfailure, safeguarding the entire system. With the most efficient MPPT technology with high tracking efficiency of up to 99%,maximum the power generated by solar panels to provide more power for your system. The compact and robust nature of the controllernot only has a sense of technology and fashion but also saves on installation space relative to the competition. Add the REGO12V 60A MPPT Solar Charge Controller, one of the most efficient and reliable controllers on the market yet to your system.
Specifications
- Nominal System Voltage: 12 V
- Rated Charge Current: 60A
- Max. PV Input Power: 800W
- MPPT Voltage Range: 15 - 100 VDC /12V
- Solar Input Voltage Range (VOC): 100 V
- Max Input Current (short-circuit, Isc): 50A
- Power Limiting Protection: Up to 800W/12V
- Battery Operating Range: 10 -16V
- Power Consumption: ≤0.5 W
- Ground Type: Common Negative Lug
- Battery Types: AGM/Sealed, GEL, FLOODED, LFP, USER*
- Electronic Protections: Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection
- Operating Temperature Range: -20 ℃ - 60℃
- Storage Temperature Range: -25 ℃ - 65℃
- Operating / Storage Humidity: 0%-90% RH
- Temperature Compensation: '-3mV / ℃ / 2V (Non-Lithium)；'0mV / ℃ / 2V; no compensation (Lithium)
- Dimensions: 9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm
- Weight: 5.07 lbs/ 2.30kg
- Terminals Size: Anderson PP75
- OPTIONAL ACCESSORIES
- Remote Monitor: Bluetooth Module BT-2 (RS485 / CAN bus signal)
- CERTIFICATIONS CE and RoHS compliant: YES
- FCC Class B Part 15 Compliant: YES
- Material and workmanship warranty: 5 Year
