Regulator solarny 36V/48V 10A Rover MPPT Boost Renogy UK

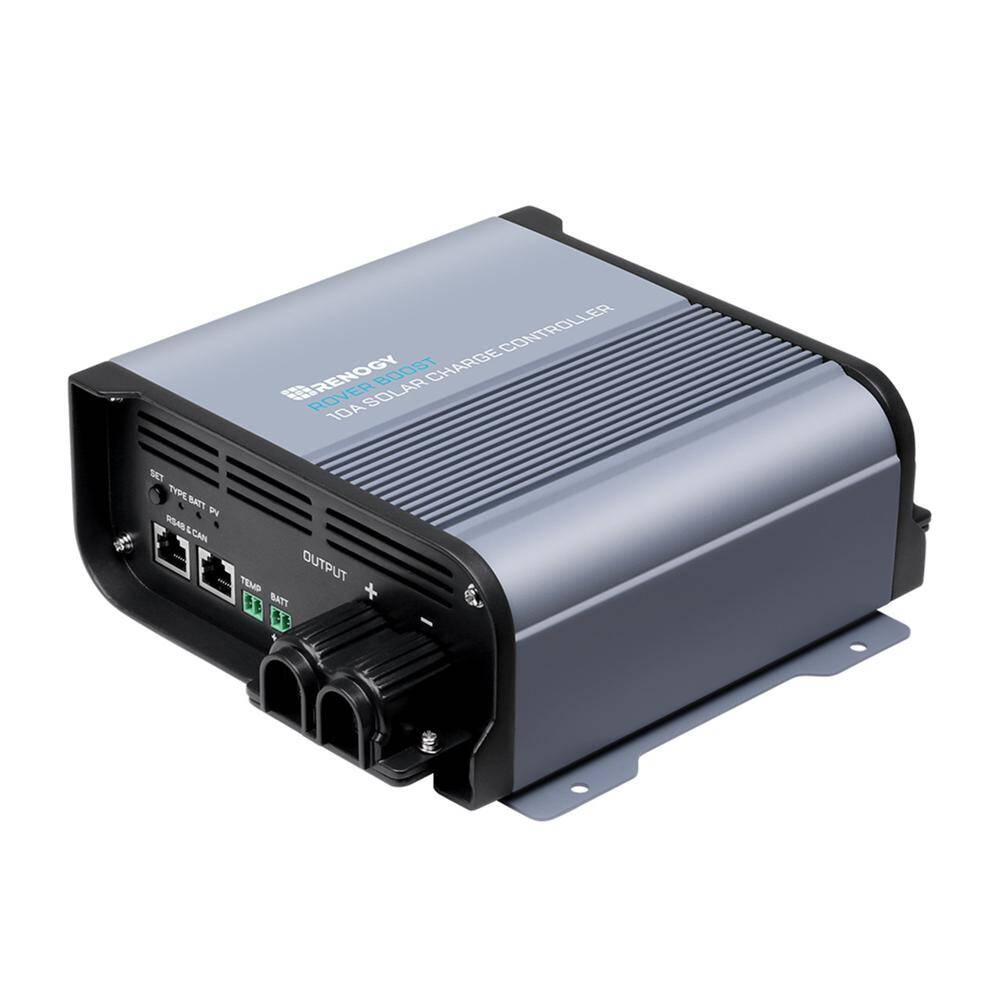

36V/48V 10Amp Rover MPPT Boost Solar Charge Controller
The 36V/48V 10Amp Rover MPPT Boost Solar Charge Controller is engineered to charge a 36V or 48V battery bank with just oneto two 36-cell solar panels. This powerful controller is the perfect fit for charging batteries in places with limited spacefor solar, such as a golf cart. The Rover Boost features 4-stage battery charging (Bulk, Boost, Float, and Equalization) withcharging presets for AGM/Sealed, Gel, Flooded, and Lithium batteries. It also supports the latest Bluetooth software, givingyou the option to add a Bluetooth module for remote monitoring and setting adjustments. This handy controller has numerousbattery bank, controller, and solar electronic protections for peace of mind, making it an optimized system you can trust.
Specifications
- Nominal System Voltage: 36V / 48V, Auto Recognition (Non-Lithium)
- Rated Charge Current: 10A
- Max. PV Input Power: PV Input Power: 500W/36V; 650W/48V；Charging Power: 450W/36V; 600W/48V
- MPPT Voltage Range: 15 ~ 25VDC / 36V；15 ~ 40VDC / 48V
- Solar Input Voltage Range (VOC): 15 ~ 25VDC / 36V；15 ~ 40VDC / 48V
- Max Input Current (short-circuit, Isc): 35A
- Power Limiting Protection: Up to 600W/36V; 800W/48V
- Battery Operating Range: 30 ~ 65 VDC
- Power Consumption: ≤ 2W
- Ground Type: Common Negative Lug (M3)
- Battery Types: AGM/Sealed, GEL, FLOODED, LFP, USER*
- Electronic Protections: Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection
- Protection Level: IP20
- Operating Temperature Range: -31°F ~ 149°F / -35℃ ~ + 65℃
- Storage Temperature Range: -40°F ~ 176°F / -40℃ ~ + 80℃
- Operating / Storage Humidity: 0-95% RH
- Temperature Compensation: '-3mV / ℃ / 2V (Non-Lithium)； 0mV / ℃ / 2V; no compensation (Lithium)
- Dimensions: 8.8 x 7.6 x 2.9 inch / 224 x 192 x 74.5mm
- Weight: 2.65 lbs / 1.2 Kg
- Max. Terminals Size: 16 ~ 2 AWG, M6-12x1
- CE and RoHS compliant: YES
- FCC Class B Part 15 Compliant: YES
- OPTIONAL ACCESSORIES
- Remote Monitor: Bluetooth Module BT-2 (RS485 / CAN bus signal)
- Material and workmanship warranty: 2 Year
