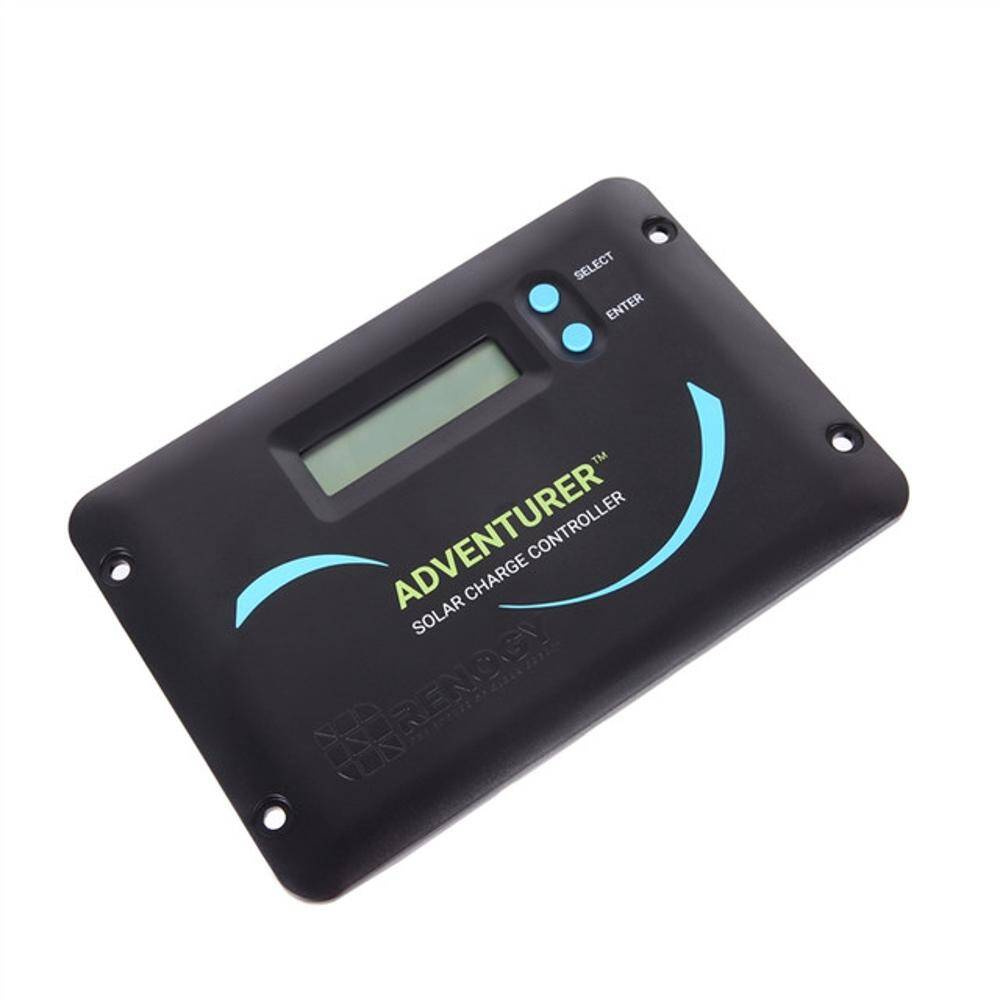

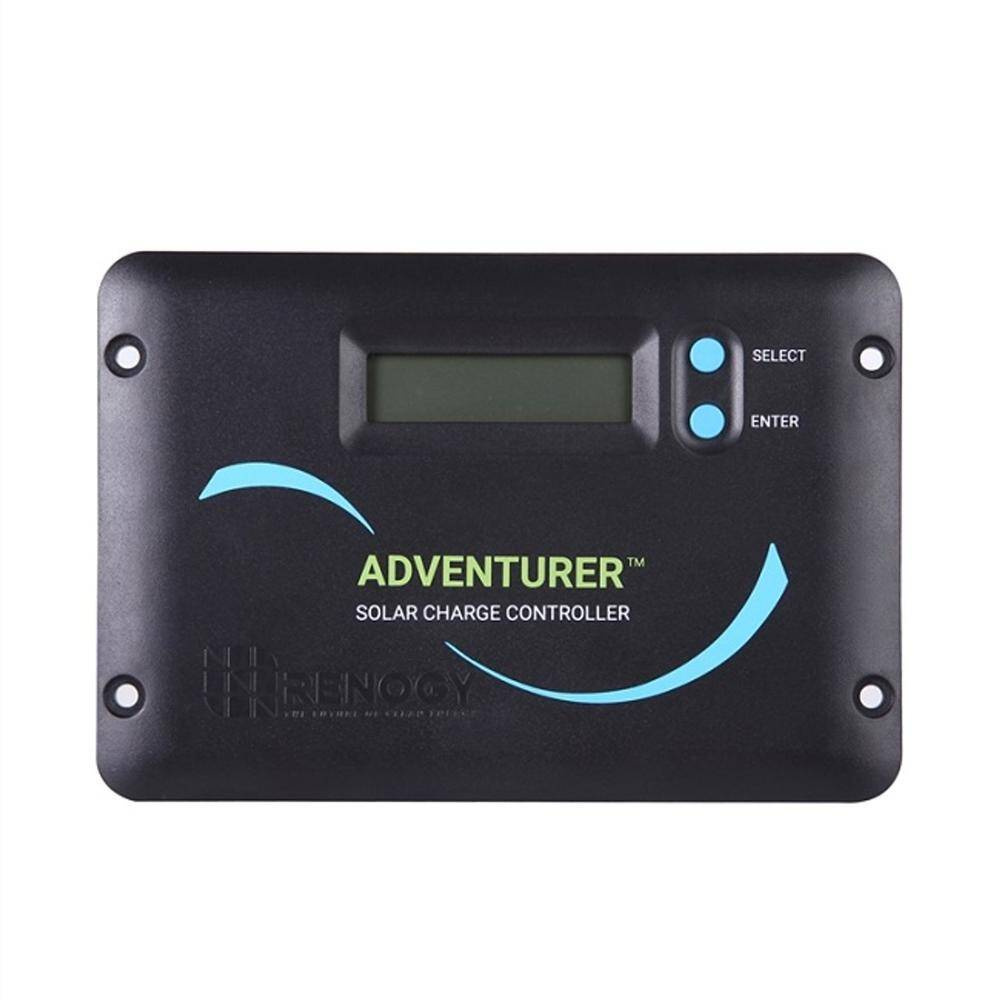

Regulator Solarny Adventurer Li 30A PWM z wyświetlaczem LCD
Adventurer Li 30A PWM Flush Mount Charge Controller w/ LCD
Meet the Adventurer Li 30A PWM Flush Mount Charge Controller w/ LCD, newly improved with two advanced features. Thanks toits programmable Lithium charging voltage, the 30A PWM solar charge controller is now capable of charging most Lithium batteriesavailable on the market. The second addition to the controller is the RS232 port, used to connect and communicate with theRenogy BT-1 Bluetooth module. By adding the BT-1 to the Adventurer-Li, you can now use the smartphone app, the Renogy DC Homesmart phone App, to monitor and adjust your solar system remotely. Unique in its form, the Adventurer-Li is a common-negativeground, flush mount controller, designed for an aesthetically clean and integrated look on RV and camper walls. However, ifflush mounting does not appeal to you, an included Surface Mount Attachment allows you to forgo it. Capable of charging both12V and 24V photovoltaic systems, the Adventurer-Li integrates highly efficient PWM charging to increase battery longevityby regulating the charge flowing from the solar panels to the battery bank. This charge controller comes equipped with a fullycomprehensive self-diagnostic system and electronic protection functions to prevent damage from installation mistakes or systemfaults.
Specifications
- Rated Battery Current: 30A
- Rated Load Current:20A
- Max. PV Input Short Current: 50A
- Max. Battery Voltage: 32V
- Max Solar Input Voltage: 100VDC
- Charge circuit voltage drop: ≤ 0.26V
- Discharge circuit voltage drop: ≤ 0.15V
- Working Temperature: -35°C to +45°C
- Max Terminal Size: 8AWG
- Rated Load Current: 10% to 90% NC
- Overall Dimension: 9.37 x 6.81 x 2.85 in(238x173x72.5mm)
- Net Weight: 4.41 lb.(2.0kg)
- Options: BT-1 Bluetooth Module
- Model: BT-1
- Input Voltage: 5V-12V
- Standby Power Consumption: 0.04W
- Operating Power Consumption: 0.05W
- Communication Range: ≤82ft
- Serial Baud Rate: Fixed Baud Rate 9600bps
- Cable Length: 5.00 m (16.4 ft)
- Dimensions: 2.6 X 2.01 X 0.61 In(66x51x15.5mm)
- Installation Dimensions: 57.5; φ3.2mm (2.26; φ0.13in)
- Operation Temperature: -20¡æ to 75¡æ (-4 F to 167 F)
- Protection Grade: IP67
- Weight: 120g (4.2oz)
- Charge Controller 2-year material warranty
