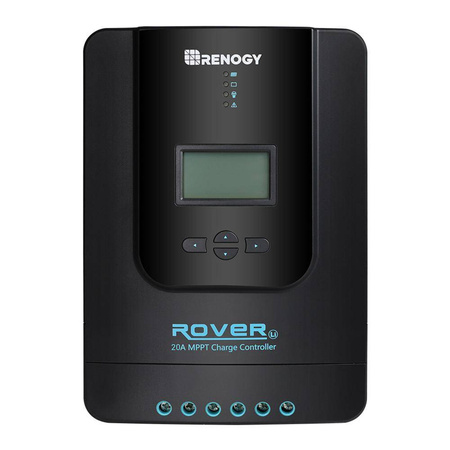

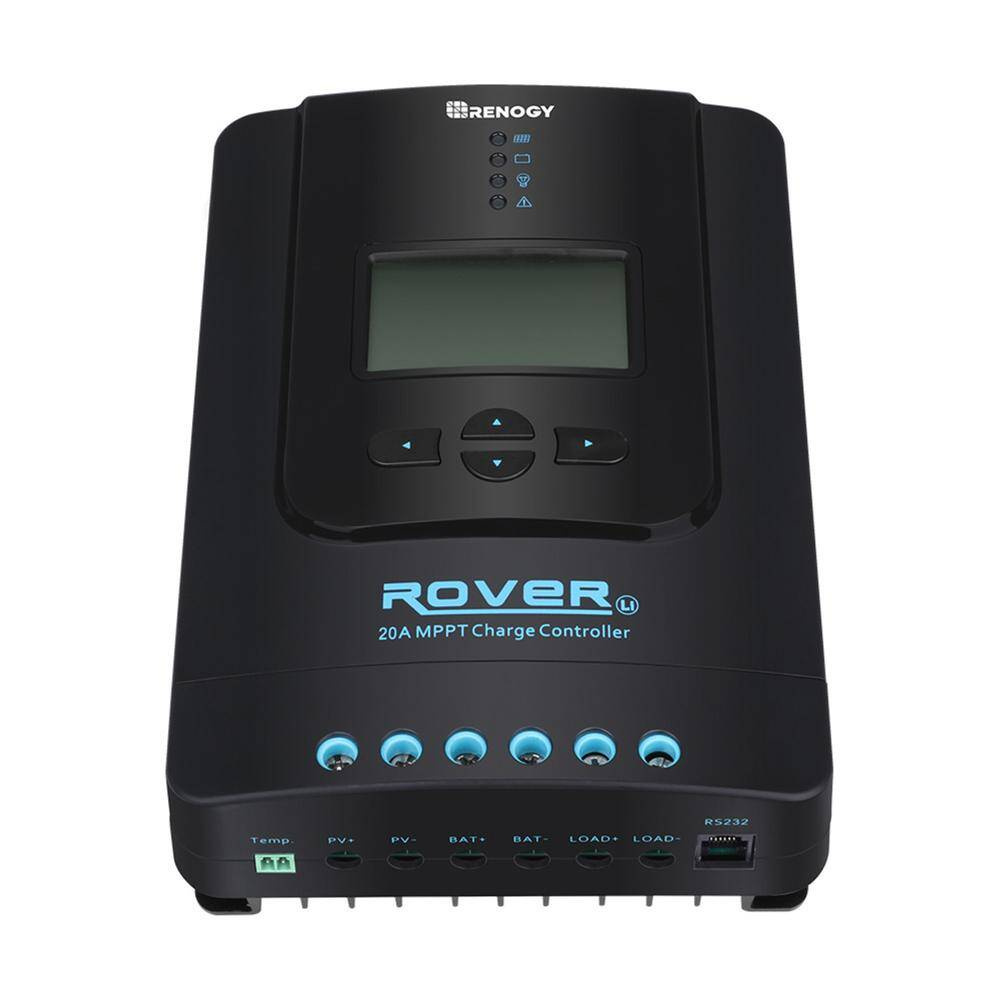

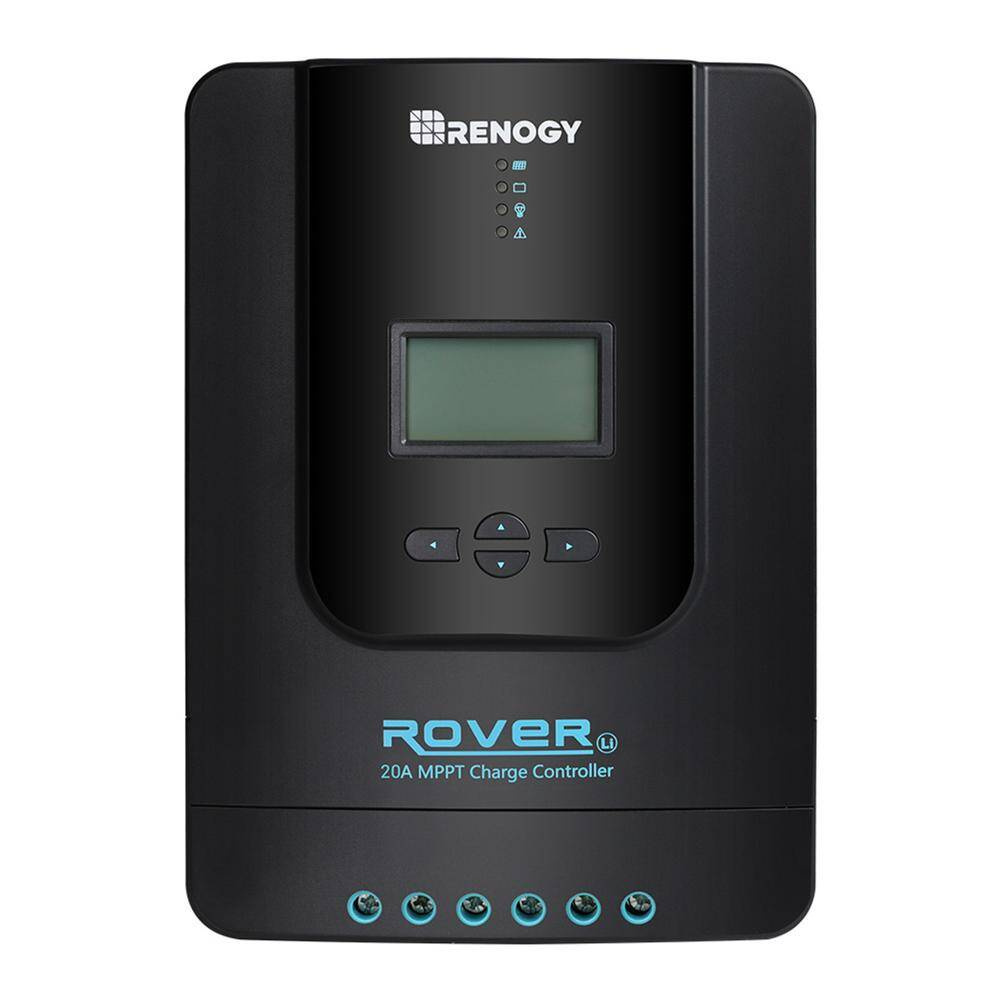

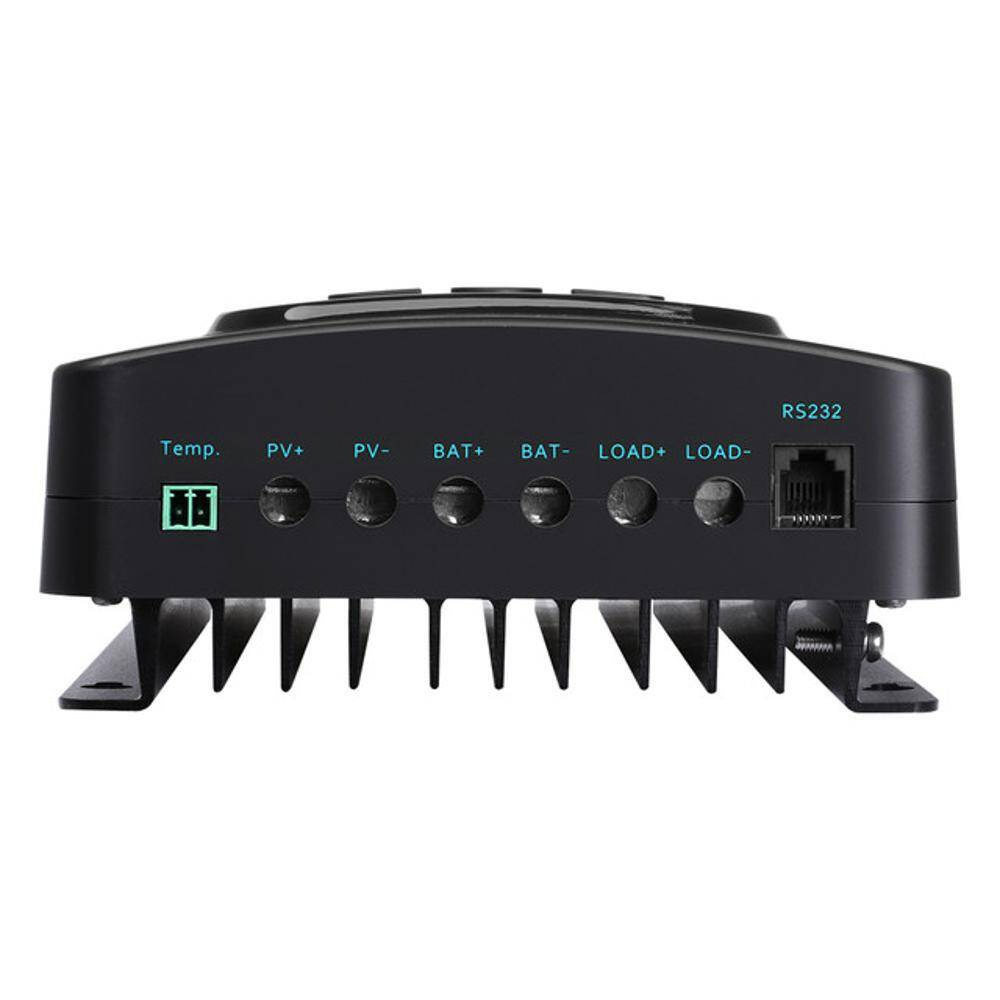

Regulator solarny Rover Li 20A MPPT

Adventurer Li 20A PWM Flush Mount Charge Controller w/Bluetooth

The Adventurer Li 20A PWM Flush Mount Charge Controller w/Bluetooth features a die-cast aluminum shell that is perfect forheat dissipation while also protecting against general wear and tear. This intelligent controller is not only capable of upto 99% tracking efficiency; but can also self-diagnose system faults. This charge controller displays error codes that canbe easily looked up. Capable of automatically detecting 12V/24V systems; this crucial system component can also handle variousbattery options such as GEL and Lithium. Pair this charge controller with the Renogy BT-1 and Renogy DC HOME app to view systemperformance in real time and make parameter changes without having to get up!

Specifications

• Nominal system voltage: 12V/24V Auto Recognition
• Rated Battery Current: 20A
• Rated Load Current: 20A
• Max. PV Input Short Current: 25A
• Max. Battery Voltage: 32V
• Max Solar Input Voltage: 100 VDC
• Mounting Oval: 0.30 x 0.18in(7.66x4.70mm)
• Net Weight: 3.08 lb(1.4kg)
• Discharge circuit voltage drop: ≤ 0.15V
• Overall Dimension: 8.27 x 5.94 x 2.34 in (210 x 151 x 59.5 mm)
• Enclosure: IP32
• Model: BT-1
• Input Voltage: 5V-12V
• Standby Power Consumption: 0.04W
• Operating Power Consumption: 0.05W
• Communication Range: ≤82ft
• Serial Baud Rate: Fixed Baud Rate 9600bps
• Cable Length: 5.00 m (16.4 ft)
• Dimensions: 2.6 X 2.01 X 0.61 In(66x51x15.5mm)
• Installation Dimensions: 57.5; φ3.2mm (2.26; φ0.13in)
• Operation Temperature: -20°C to 75°C (-4°F to 167 °F)
• Protection Grade: IP67
• Weight: 120g (4.2oz)
• Charge Controller 2-year material warranty
