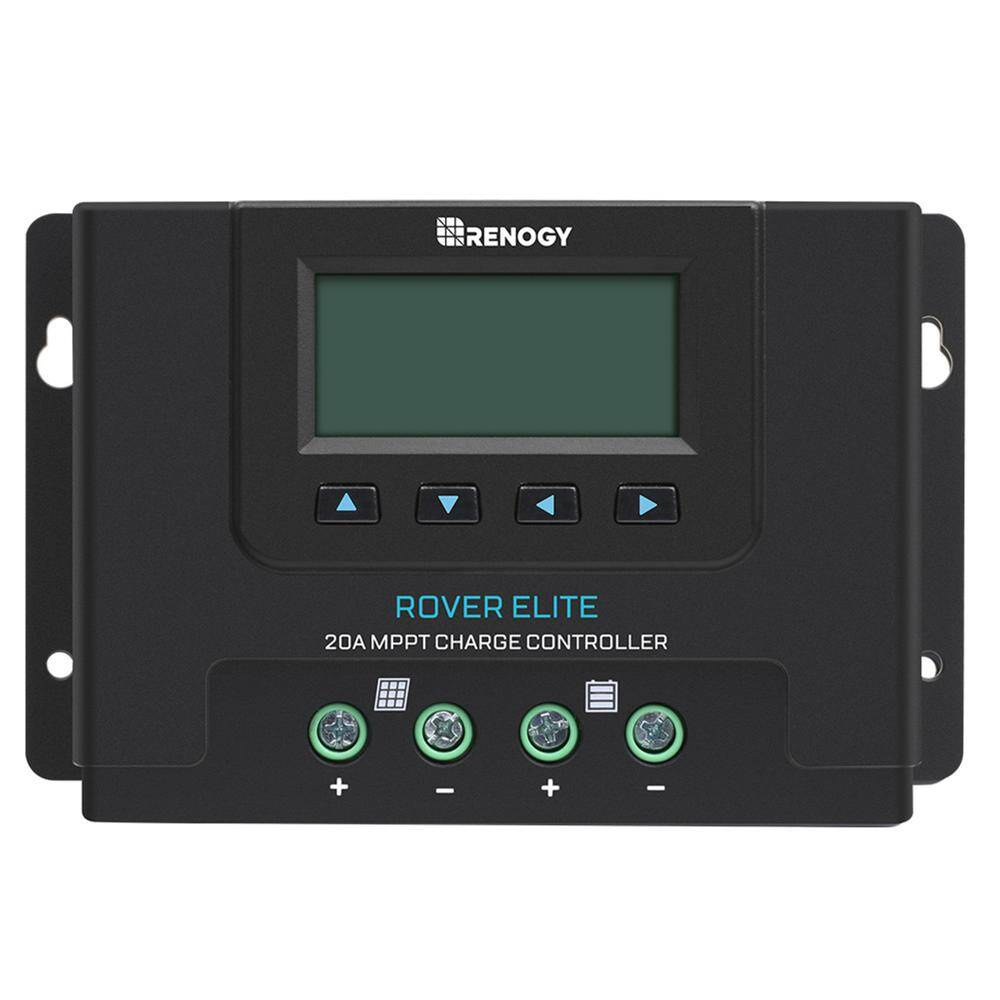

Rover Elite 20A MPPT Solar Charge Controller

The Rover Elite 20A MPPT Solar Charge Controller give you the most efficient charging for countless 12V or 24V off-grid solarapplications. Compatible with an assortment of batteries, including Lithium, the Rover Elite MPPT utilizes powerfully smarttracking technology to maximize solar charging energy to your battery. Additionally, the Rover Elite MPPT is equipped withmultiple battery, controller, and solar protections giving you peace of mind and an optimized system you can trust.

Specifications

• System Voltage: 12V/24V Auto Recognition
• Battery Rated Current: 20A
• Max Battery Voltage: 32V
• PV Input Voltage Range: 15V – 100V VOC
• Max Power Input: 12V @ 260W 24V @ 520W
• Self Consumption: ≤0.6W @12V;≤0.8W @24V
• Grounding Type: Negative
• Controller Terminals: 20-6 AWG
• Temperature Compensation: -3mV/C/2V, excludes LI
• Operating Temperature: -35°C~ 65°C/ -31°F ~ 113°F
• Storage Temperature: -40°C~ 80°C/ -40°F ~ 176°F
• Operating/Storage Humidity: < 90%, No Condensation
• Dimensions: 161.5 x 97.9 x 66.5 mm/ 6.36 x 3.85 x 2.62 in
• Weight: 0.75 kg/1.65 lbs
• Enclosure: IP32
• Communication: RS485
• Certification : FCC Part 15 Class B; CE; RoHS; RCM
• OPTIONS: BT-2 BLUETOOTH MODULE
• Communication Protocol: RS485
• Port Type: RJ45
• Input Voltage: 5V or 12V
• Protection Grade: IP54
• Standby Power Consumption: 0.04W
• Operating Power Consumption: 0.05W
• Communication Range: ≤82ft
• Serial Baud Rate: Fixed Baud Rate 9600bps
• Cable Length: 5.00 m (16.4 ft)
• Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
• Charge Controller: 2-year material warranty
