Wyświetlacz do DC-DC MPPT Battery Charger

Monitoring Screen for DC-DC MPPT Battery Charger Series

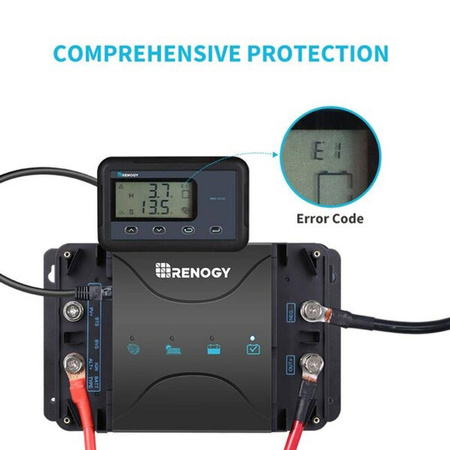

The RMS-DCDC is a high precision meter designed for DC-DC MPPT Series onboard battery chargers. Engineered for an aestheticallyclean and professional look once mounted, this meter can be flush-mounted and features a backlit LCD. Utilize the 4-key inputto navigate through the LCD for system information, configure charging parameters, as well as identify any error codes. TheRMS-DCDC is the perfect companion, offering operator feedback on your 2-battery system and keeping you up to date with importantsystem information.

Specifications

• Supply Voltage: 5VDC
• Communication Port: RJ45 (RS485 Protocol)
• Supply Current: 30mA
• Display: Backlit LCD
• Power Consumption: <1W
• User Interface: 4 Front Menu Buttons
• Operating Temperature Range: -4°F~113°F / -20°C~45°C
• Mounting System: Wall Mount
• Voltage Accuracy: ±0.1V
• Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm
• Current Accuracy: ±0.1A
• Weight: 0.14 lbs / 62 g
• Wire Length: 16.4ft / 5m
• Certifications: FCC
