Wyświetlacz do Rover Elite Series

Monitoring Screen for Rover Elite Series

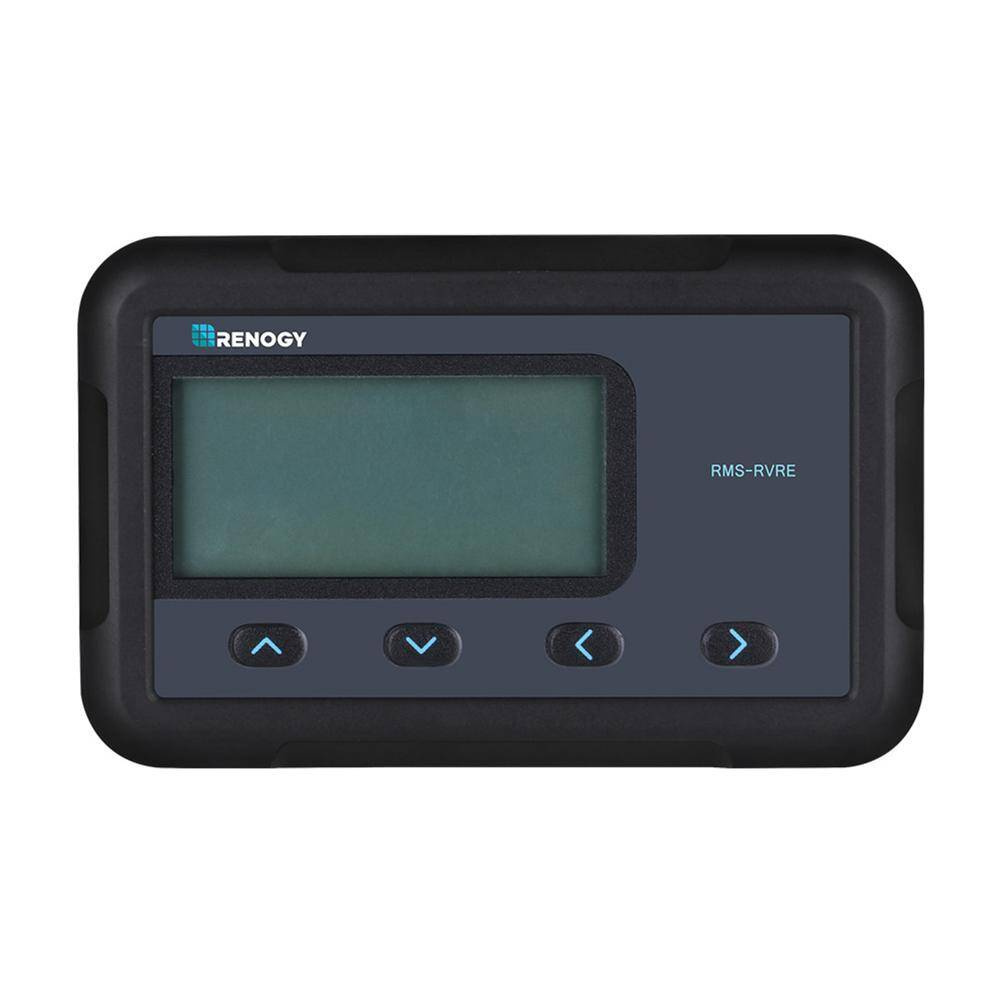

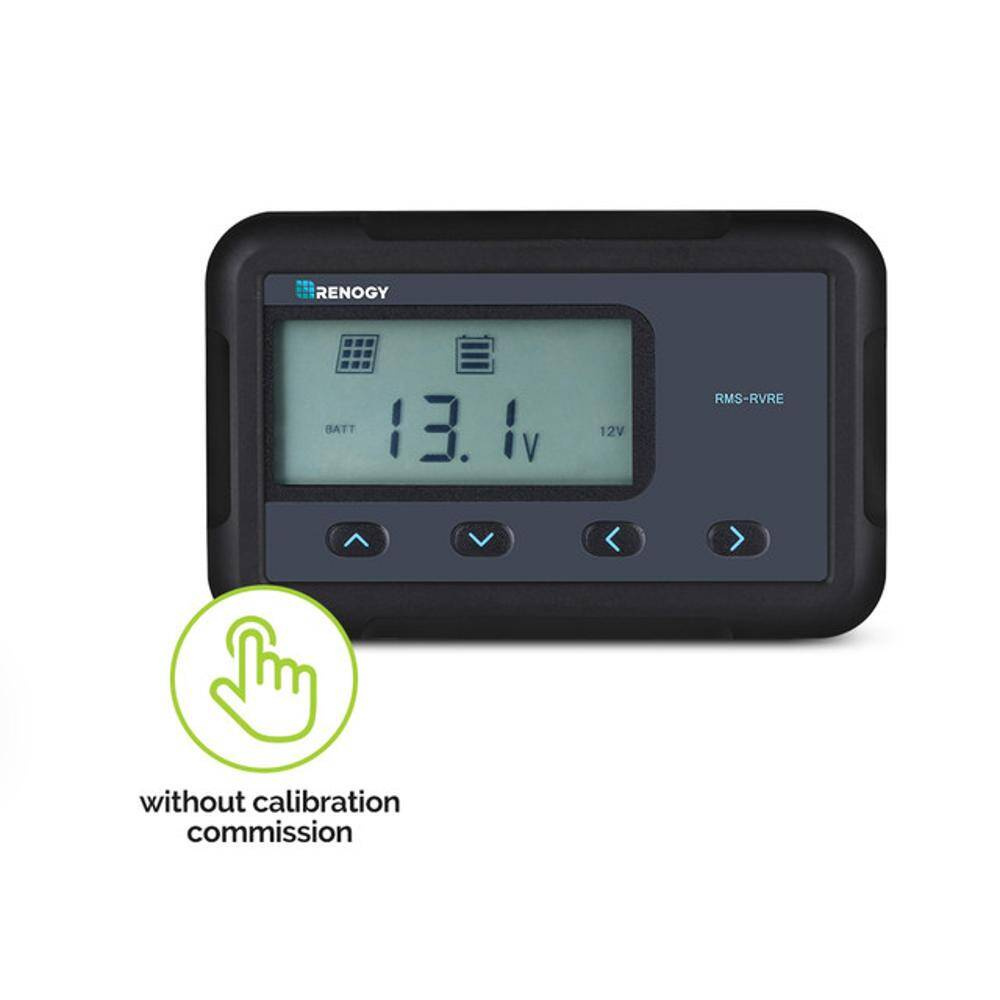

The RMS-RVRE is a high precision meter designed for Rover Elite charge controllers. Featuring a backlit display and flush-mountable,it is engineered for an aesthetically clean and professional look on RVs or camper walls. Utilize the 4-key input to easilynavigate through your system information or modify quick parameters as well as identify any error codes. The RMS-RVRE is theperfect monitor companion to optimize any solar system! Kindly note that the monitor screen is incompatible with the RenogyRVR series charge controllers, only compatible with Rover Elite charge controllers.

Specifications

• Supply Voltage: 5VDC
• Communication Port: RJ45 (RS485 Protocol)
• Supply Current: 30mA
• Display: Backlit LCD
• Power Consumption: <1W
• User Interface: 4 Front Panel Menu Buttons
• Operating Temperature Range: -4°F~113°F / -20°C~45°C

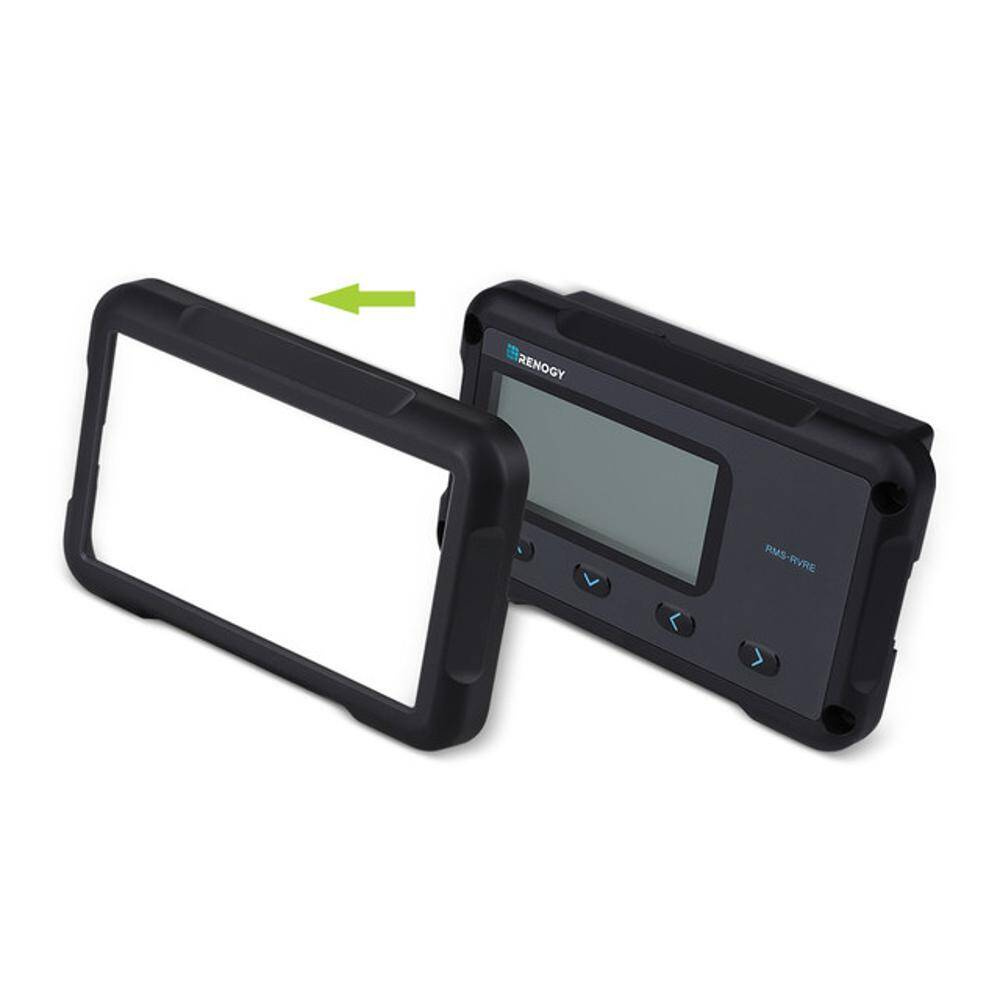

• Mounting System: Wall Mount
• Voltage Accuracy: ±0.1V
• Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm
• Current Accuracy: ±0.1A
• Weight: 0.14 lbs / 62 g
• Mounting Screw: M2.9x13mm
• Wire Length: 16.4ft / 5m
• Certification: ROHS FCC EMC
• WARRANTY INFORMATION: Accessories1-year material warranty
