Wyświetlacz do Smart Lithium Battery Series

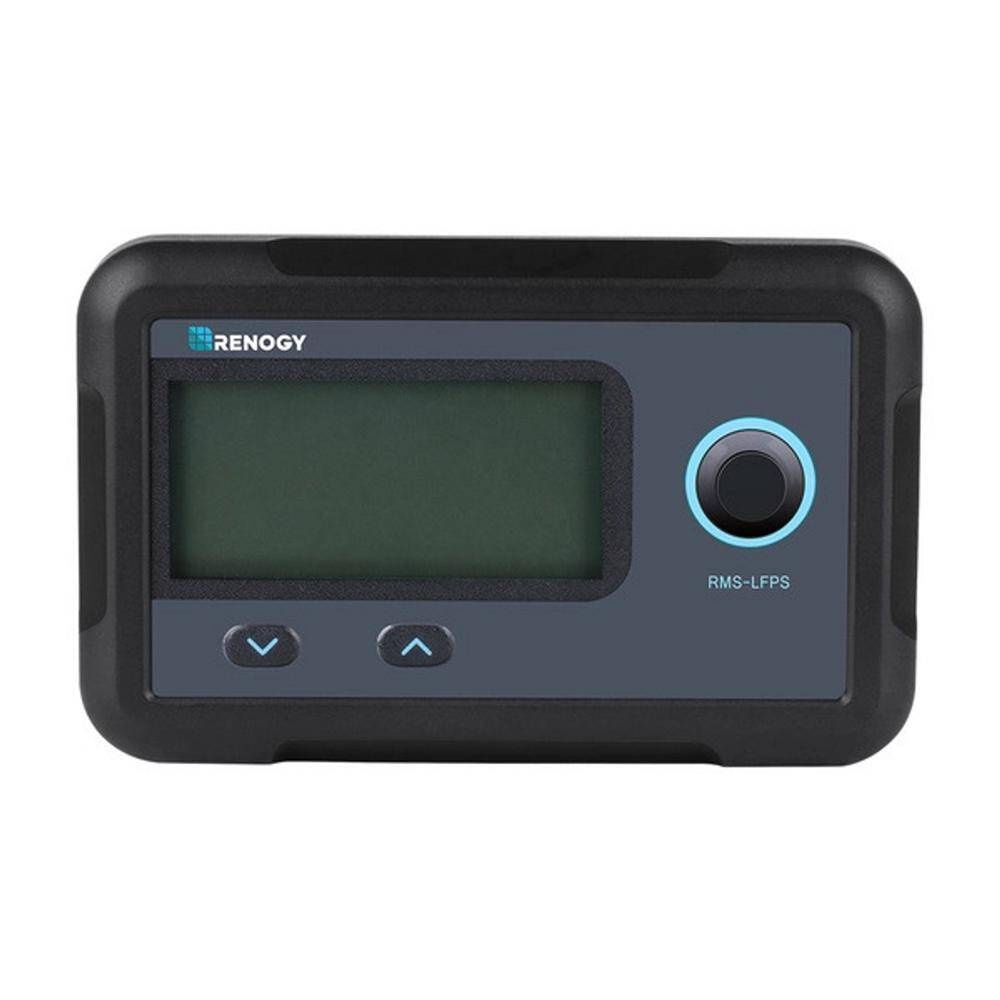

Monitoring Screen for Smart Lithium Battery Series

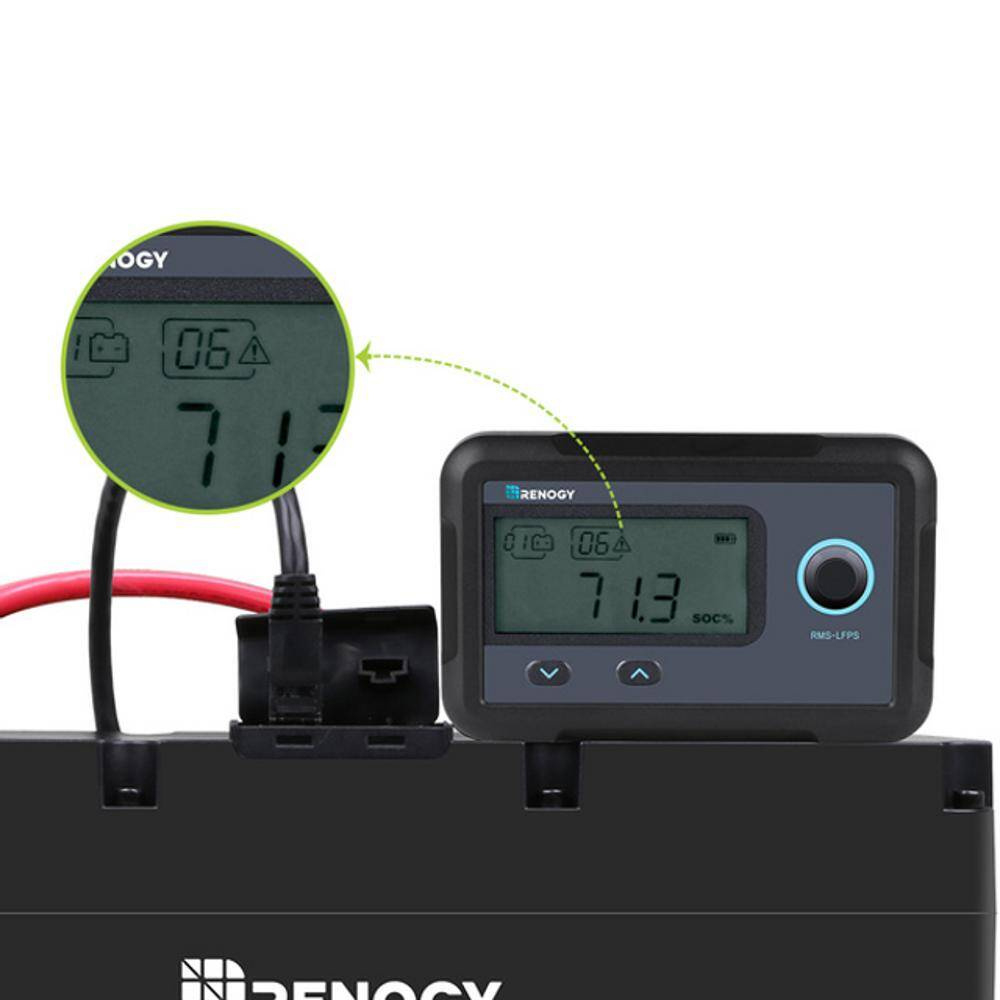

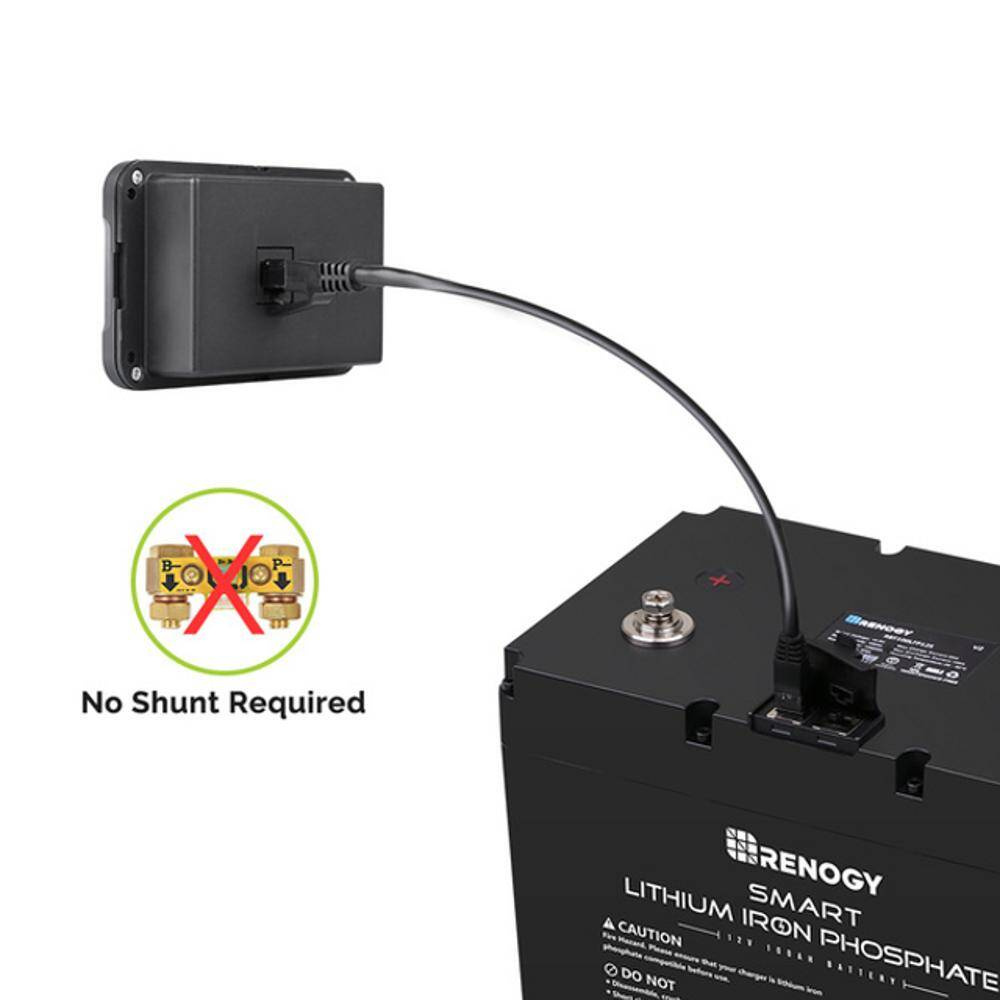

The Renogy Monitoring Screen for Smart Lithium Battery Series is a high precision meter only designed for Smart Lithium IronPhosphate Batteries (SKU: RBT100LFP12S, RBT100LFP12SH) in off-grid energy storage systems. Instead of measuring the currentflowing in/out of the battery bank using a shunt, it can communicate directly with the battery management system (BMS) andobtain more accurate state of charge (SoC) readings compared to traditional battery monitors. Other battery bank informationincluding voltage, current, capacity, remaining time, warning code, and number of paralleled batteries are also availableon the monitoring screen to help users avoid abnormal conditions and extend the lifetime of battery bank.

Specifications

• Supply Voltage: 12VDC
• Communication Port: RJ45 (RS485 Protocol)
• Supply Current: 30mA
• Display: Backlit LCD
• Power Consumption: <1W
• User Interface: 2 Front Panel Menu Buttons, 1 Power Button
• Operating Temperature Range: -4°F~113°F / -20°C~45°C
• Mounting System: Wall Mount
• Voltage Accuracy: ±0.1V
• Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm
• Current Accuracy: ±0.1A
• Weight: 0.14 lbs / 62 g
