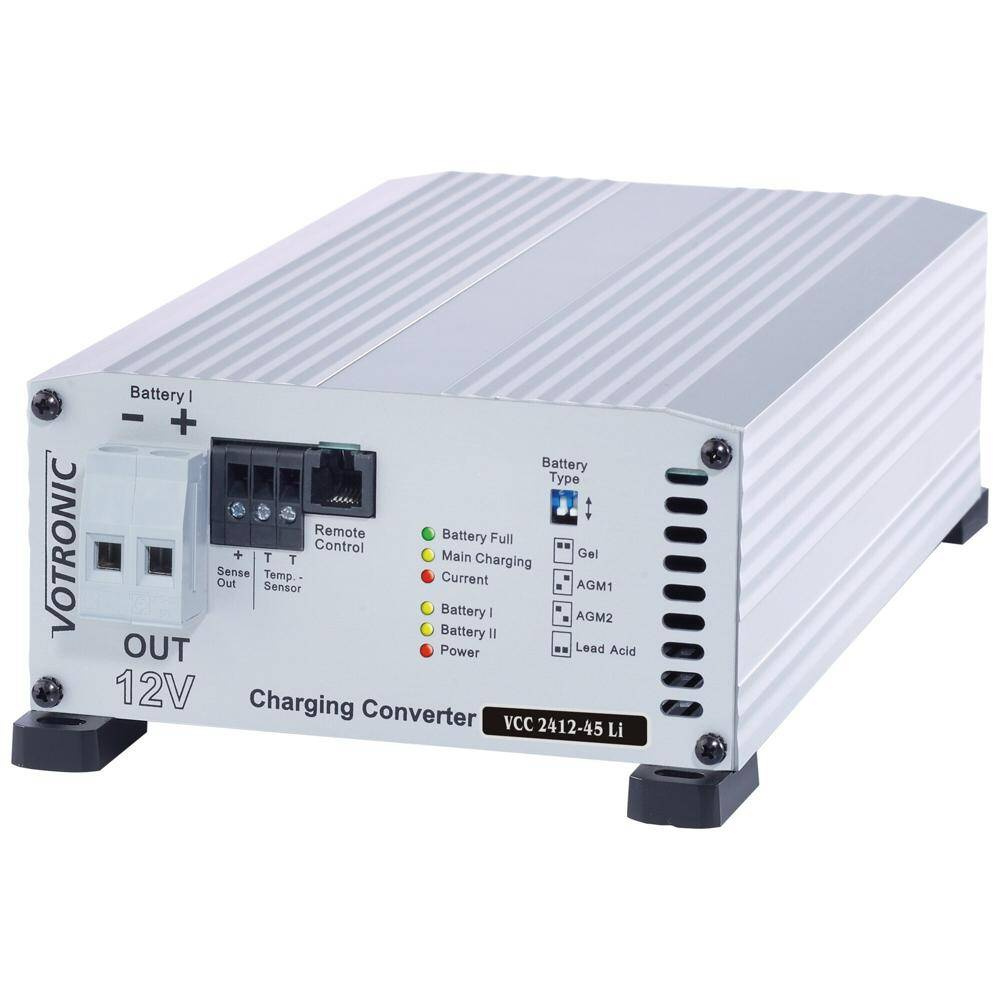

Fully automatic battery charging converter for LiFePO4 batteries in special vehicles, high-quality motorhomes and in the marine sector. Developed according to the latest standards for charging supply batteries in lithium LiFePO4 technology while travelling. In contrast to conventional cut-off relays, the charging converter automatically adapts the charging voltage to losses on the supply lines and fluctuating battery voltages. With 24 V input voltage, it is even possible to charge the 12 V supply battery without an additional alternator. The charging converter ensures the high quality of battery charging of the VOTRONIC chargers even while driving. The intelligent microprocessor charge control with "IU1oU2oU3" charging characteristics enables fast and gentle full charging and subsequent 100% charge retention of the batteries from any state of charge. At the same time, 12 V consumers connected in parallel can also be supplied, and overcharging of the batteries is reliably prevented even during extremely long journey times. The charging converters are characterised by their compact design, low weight (high-frequency switch mode technology) and powerfully dimensioned power components. This ensures full charging power even with long charging cables and strong voltage fluctuations on the starter battery, for example in vehicles that comply with the Euro 6 standard.
- The charging voltage is free of peaks and regulated in such a way that overcharging of the batteries is ruled out.
- Fully automatic operation via switching input (ignition, engine running, D+) and voltage control.
- Automatic, adjustable power control enables priority charging of the starter battery by the alternator in the event of an overloaded vehicle network, thus ensuring immediate starting capability.
- No discharge (current 0.000 A) of the batteries during standby or when the charging converter is switched off.
- Parallel and buffer operation: The battery continues to be charged or is kept fully charged during simultaneous consumption. The charging converter automatically calculates and monitors the adjustment of the charging times.
- Monitoring-free charging: Multiple protection against overload, overheating, overvoltage, short circuit, reverse polarity at the output, misbehaviour and battery back-discharge through electronic cut-off up to complete separation of charging converter and battery by means of built-in safety switches.
- Galvanic isolation between input and output: absolute separation of the battery circuits even in the event of a fault, important for 12 V/24 V mixed systems, prevents unwanted reverse discharges and suppresses interference in the vehicle electrical system.
- Charging cable compensation: Voltage losses on the charging cables are automatically compensated for.
- Built-in on-board power supply filter: Problem-free parallel operation with solar systems, wind and petrol generators, mains chargers etc. on one battery.
- Temperature monitoring and charge adjustment by battery temperature sensor (322/898), enables charging operation even outside the recommended LiFePO4 battery temperatures below 5°C and above 35°C.
Votronic has been passionately taking care of the complete power supply when travelling for over 35 years. Quality "Made in Germany" that you can rely on - whether you are travelling in a caravan or motorhome (even off the beaten track), with the fire brigade or in rescue and special operations vehicles. Electronics developed by people for people - with a lot of experience and, above all, with sense and understanding.
