This set is for you if you want to dive deep into monitoring and see precisely what is happening in your system. With the PICO Blue set you can monitor 1 main battery or battery bank, up to 4 auxiliary batteries, and up to 6 tanks or temperatures. It features 4 devices.
PICO battery monitor that displays data about batteries, tank levels, temperatures, fridge, solar, it helps you level your campervan, and even includes a barograph.
What makes this set a unique solution on the market is the SCQ25 module, which monitors the current flow of the 4 individual devices. So, if you want to know how much your fridge is using or how much your solar panels are charging, this set is what you need.
The SCQ25 module is here to reveal the truth. It allows for a maximum continuous current of 25 amps per channel. If you need more, you can wire the device in parallel across 2 channels and configure this setting in PICO.

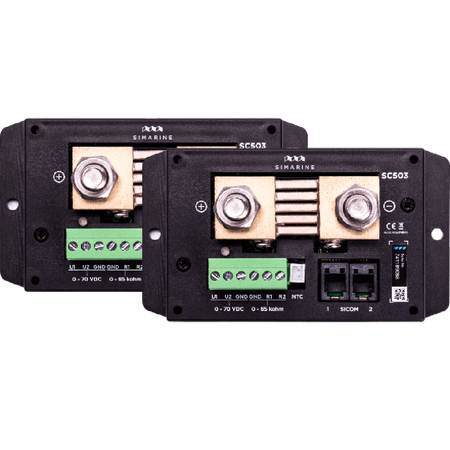

The SC503 shunt, which is included in this set, allows for a continuous current up to 500 amps. It has 2 resistance and 2 voltage inputs, and 1 socket for a temperature sensor.
It offers complete battery monitoring. You can use it to measure tank levels, temperatures, current of heavy consumers like inverters.
Additionally, the ST107 tank level and voltage module provides the system with 4 resistance and 3 voltage inputs. Its main purpose is to measure water, fuel, or other liquid levels, but you can also use it to measure voltage or temperature.
But, the features don’t end here. Both the ST107 and SCQ25 have 1 built-in programmable alarm signal relay that you can configure to output a signal of 1 amp when an alarm is triggered.
Technical charcteristics of individual elements

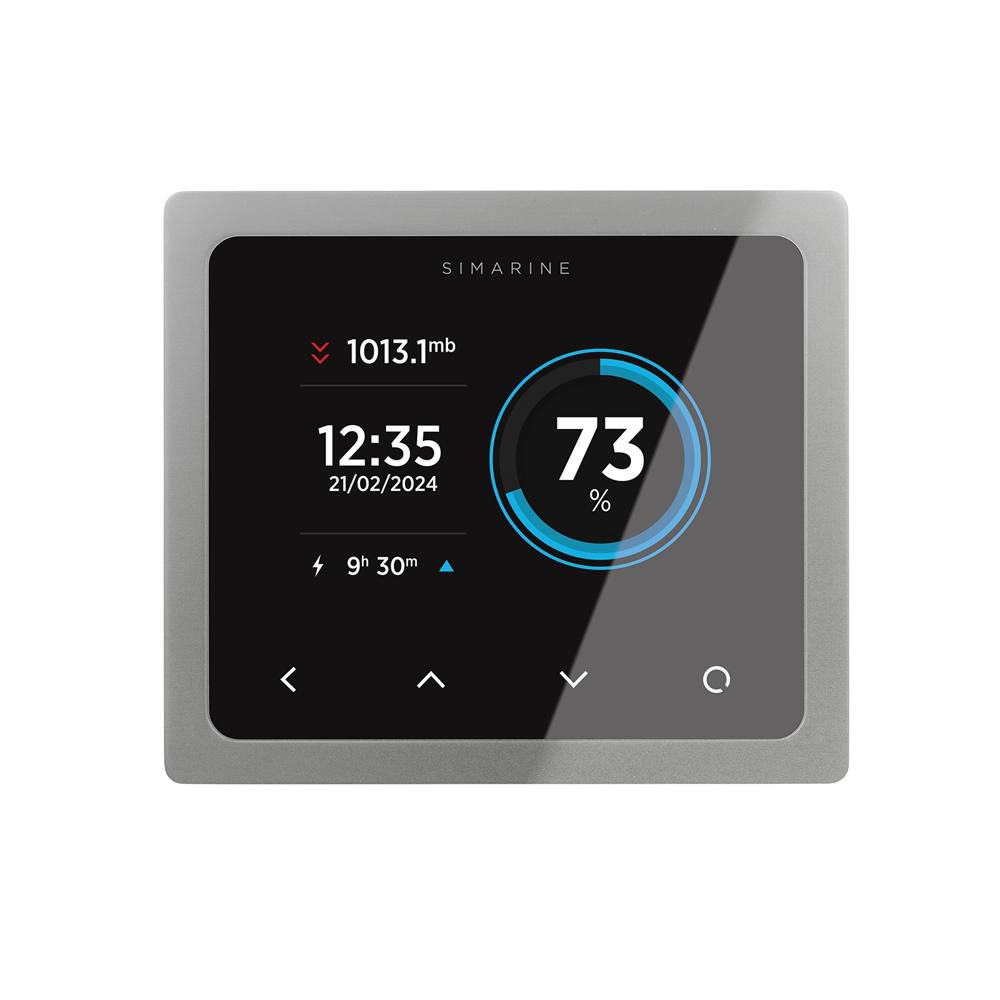

P204 PICO PANEL SILVER - Rev 2.0
Operating Power source voltage range: 6 - 35 VDC
Operating Temperature range: -20°C up to 70°C
Power consumption at 12 V Operating, WiFi On, 100 % illumination: 90 mA
Power consumption at 12 V Operating, WiFi Off, 70% illumination: 35 mA
Power consumption at 12 V Operating, WiFi Off, 0% illumination: 18 mA
Power consumption at 12V Power Off, logger still active: 5 mA
Display capabilities - Current Range: -999.99 to +999.99 A
Display capabilities - Current Resolution: 0.01 A
Display capabilities - Voltage Range: 0 - 75 VDC
Display capabilities - Voltage Resolution: 0.01 V
Display capabilities - Voltage Amp hours (Ah): ±0,1 Ah
Display capabilities - Temperature Range: -40°C up to + 150°C
Display capabilities - Temperature Resolution: 0,1°C
WIFI Radio Frequency Band: 2,4 GHz
Monitoring Capabilities UP TO number of Batteries: 6
Monitoring Capabilities UP TO number of Shunts: 24
Monitoring Capabilities UP TO number of Temperature sensors: 10
Monitoring Capabilities UP TO number of Tank level sensors: 14
Monitoring Capabilities UP TO number of Inclinometer sensors: 2
Length (WITHOUT CONNECTOR), mm: 108.5
Width (WITHOUT CONNECTOR), mm: 94
Height (WITHOUT CONNECTOR), mm: 10
Colour: Silver

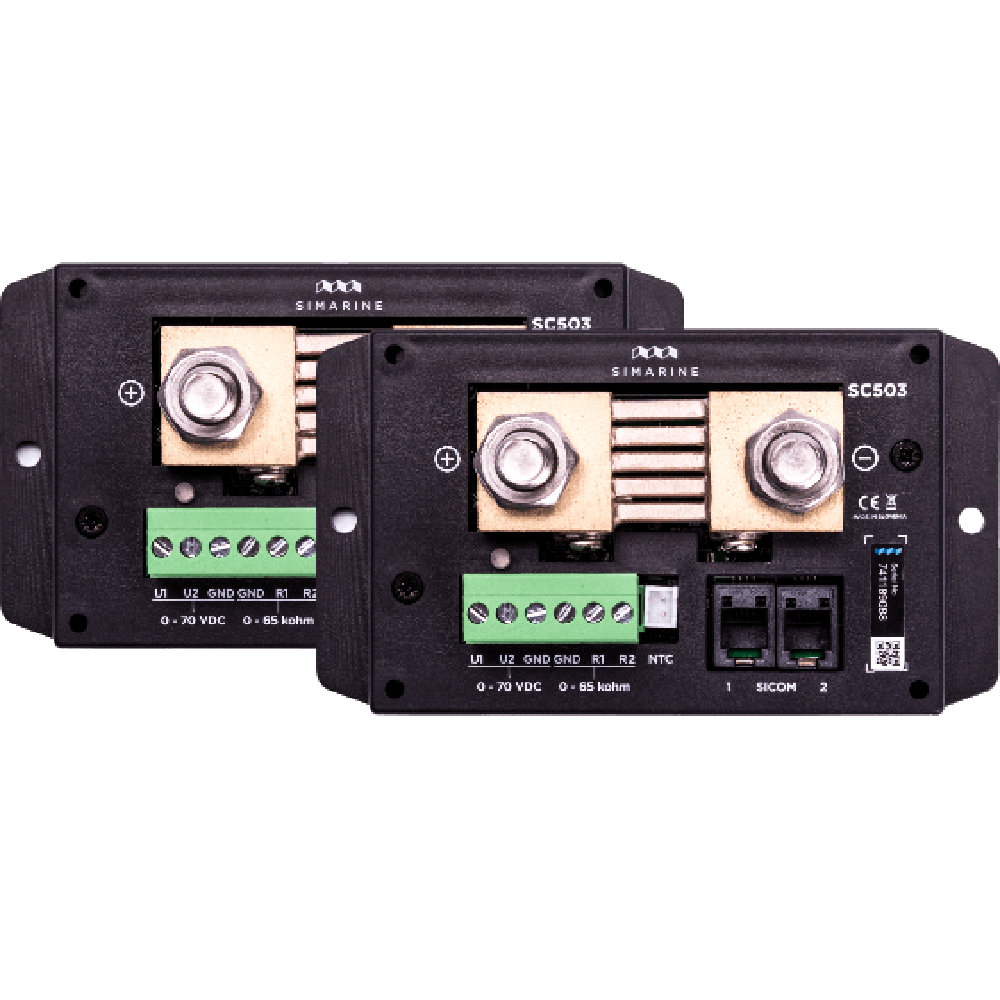

SC503 DIGITAL SHUNT 500A
Operating Voltage range: 6 - 35 VDC
Operating Temperature range: From -20°C up to 70°C
Power consumption at 12 V Operating: 1.2 mA
Current measuring Range: 0.01 - 500 A
Current measuring Accuracy: ± 1%
Current measuring Resolution: 0.01 A
Current measuring Sampling rate: 100 ms
Maximal current Continuous: 500 A
Peak current (<5min): 700 A
Peak current (<1min): 1000 A
Maximal current Voltage drop at 300A: 41,6 mV
Maximal current Maximal voltage on terminals: 35 V
Voltage Inputs (U1, U2): 2
Voltage Range: 0 - 75 VDC
Voltage Accuracy: ± 0.3 %
Voltage Resolution: 1 mV
Voltage Sampling rate: 100 ms
Resistance Inputs (R1, R2, JST socket): 3
Resistance Range: 0 Ohm–65 kOhm
Resistance Accuracy: ±3 %
Temperature sensor – NTC 10k Range: From –13°C to +80°C
Temperature sensor – NTC 10k Accuracy (from –10 to +60°C): ± 3,0%
Communication: SiCOM
Length, mm: 125
Width, mm: 70
Height, mm: 22
Battery connection: M10 bolts

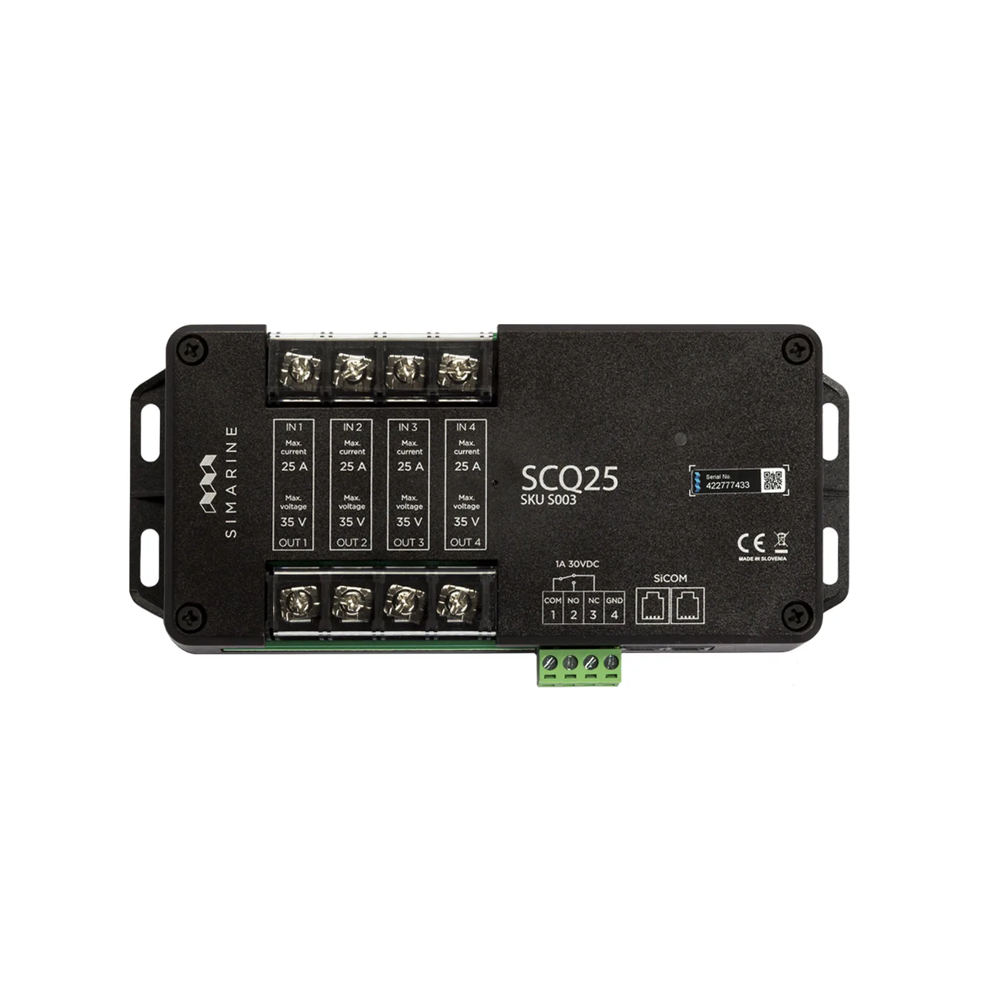

SCQ25 QUADRO SHUNT 4X25A
Operating Voltage range: 6 - 35 VDC
Operating Temperature range: From -20°C up to 70°C
Power consumption at 12 V Operating: 2.5 mA
Current measuring (per channel) Range: 0.01 – 25 A
Current measuring (per channel) Accuracy: ± 1%
Current measuring (per channel) Resolution: 0.01 A
Current measuring (per channel) Sampling rate: 100 ms
Maximal current Voltage drop at 300A: 30 mV
Maximal current Continuous: 25 A
Peak current (<1min): 35 A
Current channels: 4
Connectivity: SiCOM
Alarm contact: 1
Length, mm: 183
Width, mm: 91
Height, mm: 34

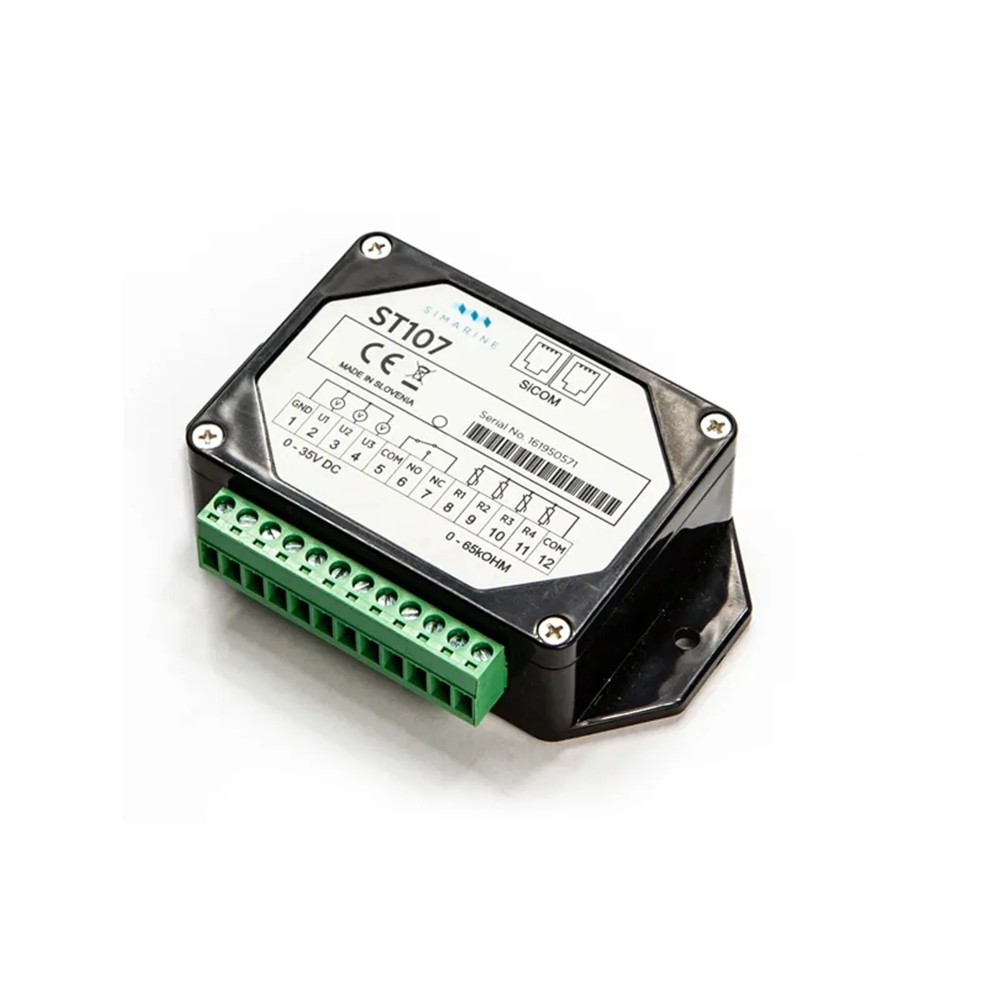

ST107 TANK MODULE
Operating Voltage range: 6 - 35 VDC
Operating Temperature range: From -20°C up to 70°C
