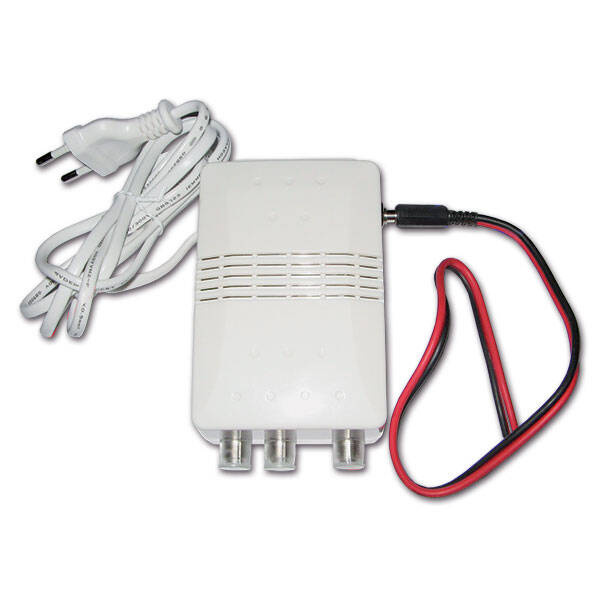

12 V / 230 V DVB-T2 signal amplifier for motorhomes and caravans - 2 TV outputs, VHF 20 dB and UHF 27 dB adjustment
ID produktu: 43066
- DVB-T2 terrestrial TV signal amplifier with dual 12 V and 230 V power supply. Two TV outputs, separate VHF and UHF adjustment, gain VHF 20 dB and UHF 27 dB, size 102 x 72 x 45 mm.
The amplifier sits between the terrestrial antenna and the TV. With a dual power supply it runs on the 12 V system on the road and on 230 V mains at the campsite. Two outputs let you connect two TVs to one antenna.
Features
- dual power supply: 12 V or 230 V
- one antenna input (IN) and two TV outputs (OUT1, OUT2)
- separate VHF and UHF gain adjustment
- gain: VHF 20 dB, UHF 27 dB
Dimensions
- 102 x 72 x 45 mm
Works with
- the DVB-T2 35 HD omnidirectional antenna, recommended together for better reception
DVB-T2 antennas and amplifiers for motorhomes
- 12 V DVB-T2 amplifier, 2 TV outputs
- DVB-T2 omnidirectional antenna 35 HD
- omnidirectional antenna Ø 28 cm
- Omni360 omnidirectional antenna Ø 30 cm
Technical data
| Parameter | Value |
|---|---|
| Type | DVB-T2 TV signal amplifier |
| Power supply | 12 V or 230 V |
| Inputs | 1 (antenna) |
| Outputs | 2 (TV) |
| Adjustment | separate VHF and UHF |
| VHF gain | 20 dB |
| UHF gain | 27 dB |
| Dimensions | 102 x 72 x 45 mm |
Questions and answers
Does it work on 230 V?
Yes, it has a dual power supply: 12 V or 230 V.
How many TVs can I connect?
Two, the amplifier has two TV outputs.
Can VHF and UHF be set separately?
Yes, both bands have separate adjustment.
What is the gain?
VHF 20 dB, UHF 27 dB.
ID produktu
43066
Nominal voltage
12 V
230 V
Color
White
Length
10.2 cm
Width
7.2 cm
Height
4.5 cm
