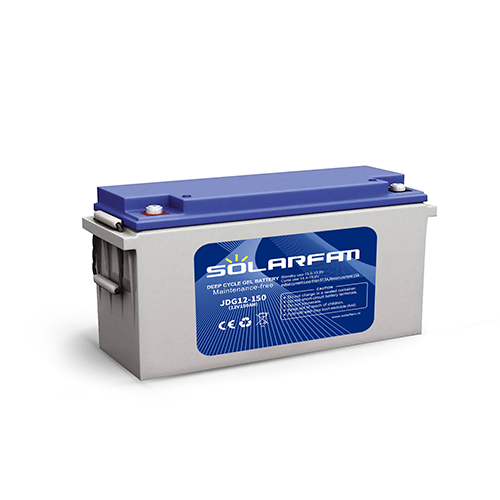

12V 150AH Gel Battery SOLARFAM

12V 150AH Gel Battery SOLARFAM

323,91 €
incl. VAT / szt.
Express checkout 1-Click(without registration)
14 days for easy returns
This product is not available in a stationary store
Safe shopping

Applications

  • Solar / wind energy and other new energy storage
  • UPS/EPS
  • Power systems
  • Telecommunications system
  • Emergency lighting、Auto control system
  • Other general purpose

General Features

  • Nanosilica colloidal electrolyte and high tin positive plate alloy design to enhance battery performance
  • Relatively rich electrolyte, high temperature and low temperature performance is superior
  • Long cycle life, excellent deep cycle discharge ability
  • Excellent charge acceptance ability
  • Precision sealing technology
  • Long life

Specification

Model JDG12-150
Battery Type GEL
Nominal Voltage 12V
Nominal Capacity 150Ah
Design life 12 years
Terminal M8
Approx. Weight Approx 45.0kg (99.2lbs)
Container Material ABS
Rated Capacity 150Ah    10Hour Rate (15.0A to 10.8V)
119Ah    3Hour Rate   (40.3A to 10.8V)
96.2Ah    1Hour Rate   (96.2A to 10.5V)
Internal resistance Full charged at 25˚C: 3.6 mΩ
Max. Discharge Current 1800A(5S)
Operating Temperature Discharge: -40 ~60℃(-40~ 140˚F)
Charge : -20 ~50℃(-4~ 122˚F)
Storage: -20 ~50℃(-4~ 122˚F)
Charge Method (25 ˚C) Charge current: Max.37.5A;Recom.15A
Float Charge voltage(-3mV/℃):



13.5-13.8V,recom.13.5V(Full floating system)

13.5-13.8V,recom.13.62V(Cycle use system)

Equalize charge:13.8-14.1V,recom.14.1V(-4mV/ ˚C)
Cycle charge:14.4-15.0V,recom.14.4V(-5mV/ ˚C)
Self discharge 3% of capacity declined per month at 25˚C
Symbol
FW-AKU-08
Producer code
SOLARFAM-JDG12-150
