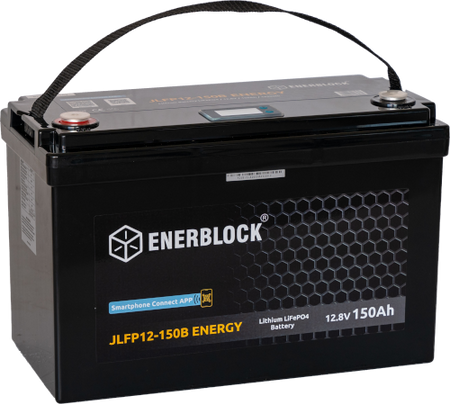

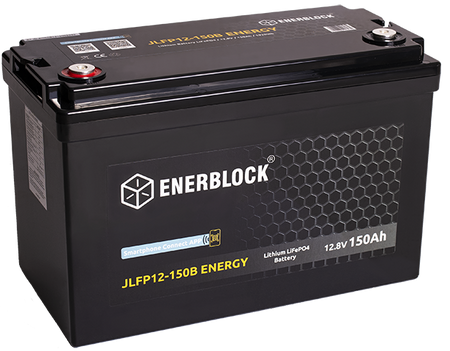

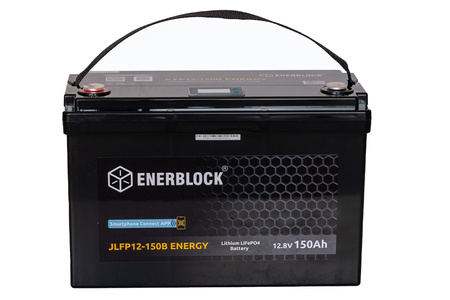

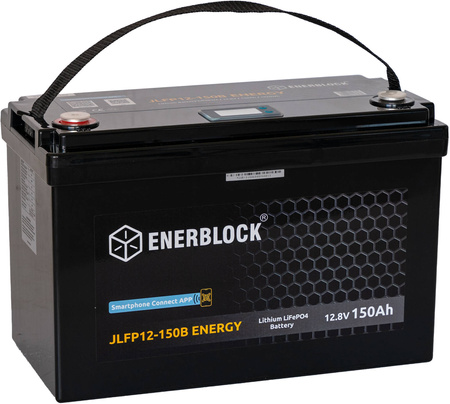

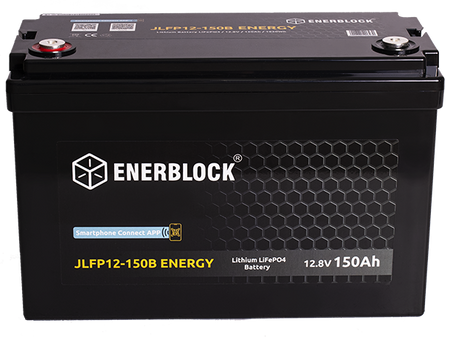

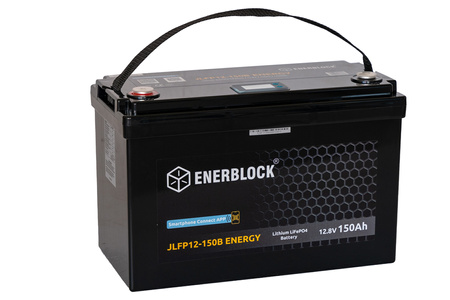

Battery LITHIUM ENERGY LiFePO4 ENERBLOCK 12.8V 150AH with heating mat / JLFP12-150B

ENERBLOCK LITHIUM LiFePO4 batteries from the JLFP series are a new generation source of mobile energy. Lithium-iron-phosphate (LiFePO4) technology is the longer-lasting
and safest variant of lithium-ion technology. The installed BMS control system controls the charging and discharging process, protecting the battery against
overcharging (>15V), too deep discharge (<10.5V) and overheating. Compared to "traditional" lead-acid technology, including AGM and GEL, ENERBLOCK LITHIUM batteries
are characterized by much greater resistance to deep and frequent discharges. The expected service life of the JLFP series is up to 3,500 work cycles with a maximum
discharge of up to 80%. These batteries do not have a memory effect, and the state of partial or constant discharge does not negatively affect their service life.
Unlike lead-acid technology, in LiFePO4 technology the battery capacity does not decrease as the current consumption increases. Additional advantages include very
low weight, low self-discharge, wide operating temperature range and the ability to quickly charge the battery.

ENERBLOCK LITHIUM batteries are used in electric devices and vehicles. Both in industry and the hobby industry. They are a perfect solution for marine applications such

as yachts or fishing boats, where the low weightof the battery is a significant convenience for its user.

SPECIFICATIONS

• Weight:          16kg
• Voltage:         12,8V
• Capacity:       150AH
• Energy:          1920Wh
• Dimensions:   T.330mm x W.170mm x T.220mm
• Terminal:        Gwint M8
• Lifespan:        3500 cycles
• Maximal constant discharge current                 :100A
• Maximal peak discharge current (<3s)             : 300A
• Operational temperature (discharge):         -20C - +55C
• Operational temperature (charging):          -20C - +50C
• Operational temperature (storage):            -20C - +55C

Advantages of LITHIUM LiFePO4 over  AGM/GEL

• 3x lower weight
• Much higher lifespan (3500 cycles)
• Higher performance (constant capacity not dependent on discharge current)
• Fast charging (2-3h)
• Partial discharging doesn't degrade battery

BMS System protects battery from:

• overcharge (>15V)
• deep discharge (<10V)
• overheating
• reverse polarization
• overcharging in freezing temperatures

LCD Display

Battery has integrated LCD display which shows battery charge state

1. % charge level
2. Battery Voltage (V).

LCD display is not waterproof. Flooding CAN cause display damage.

APPLICATIONS

• UPS backup systems
• Yachts and boats
• Campers
• Telecomm systems
• Backup lighting
• Alarm systems, fire supression systems
• Photovoltaics, Windfarms
• Electric scooters, mobility scooters
• Parking meters, Circulation pumps
• Medical installations
