180W Solar panel 1370x680x30mm SOLARFAM
Advantages:
- The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 21.2%.
- Shingled string welding process, beautiful and neat.
- Using tempered glass, high transparency.
- Anti-corrosion EVA effectively protects the battery panel.
- Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
- Lightweight and flexible features can make it seamlessly integrated into your vehicle.
- Packed in a single carton, with protective corners on all four corners.
- OEM and ODM supported.

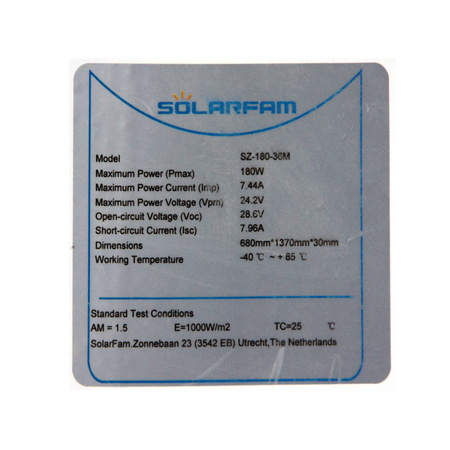

Specification:
Mechanical DataStandard Test Conditions AM=1.5, E=1000W/m2, TC=25℃ | |
Nominal Power | 180W |
Cell Type | Monocrystalline |
Cell Efficiency | 21.2% |
Maximum Power Current (Imp) | 7.44A |
Maximum Power Voltage (Vmp) | 24.2V |
Open-circuit voltage (Voc) | 28.6V |
Short-circuit current (ISC) | 7.96A |
Maximum System Voltage | 1000V |
Output Tolerance | +3% |
Cable | 500mm / 2.5mm2 |
Connector Type | MC4 / MC4 Compatible |
Module Structure | Aluminum Frame / Glass / EVA /Backsheet (White) |
Junction box rating | ≥IP67 |
Number of Diodes | One |
Working Temperature | -40℃~+80℃ |
Packaging | |
Module Dimensions | 1370*680*30mm |
Module Weight | 11.83kg |
Brand
Symbol
FW-P-180 RIGID 1
Producer code
SZ-180-36-1370mm
Ramowy
Tak
Flex
Nie
Ogniwa
Monokrystaliczne
Moc szczytowa [W]
180
Długość [mm]
1370
Width (mm)
680
Głębokość [mm]
30
