2 x GasBank DUO + remote filling point DISH
- Refillable LPG Gas Cylinder

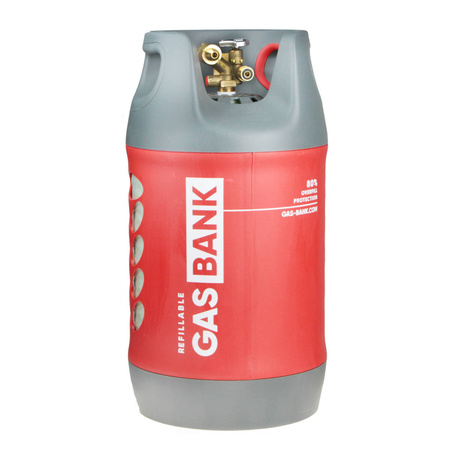

GasBank DUO 11kg - Refillable LPG Gas Cylinder - Lightweight Composite with Overfill Protection Valve - DIN (G12 KLF) Inlet/Outlet
Refillable gas cylinder for LPG storage used for BBQ, camping, cooking, heating at home, on campervan, caravan, motorhome, boat, for industrial burners and blowtorches or any application where the standard LPG bottle can be used.
Cylinder is made from lightweight composite material for durability and high protection demands, net weight of 11KG cylinder is only 5.51KG.

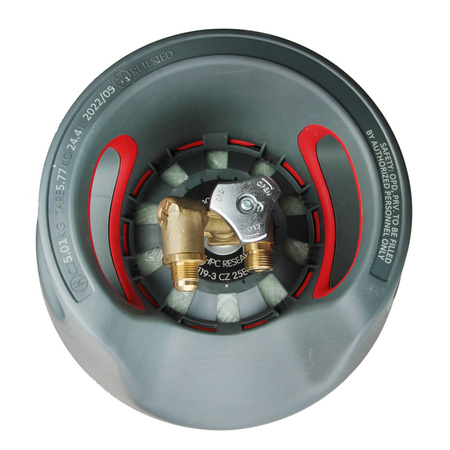

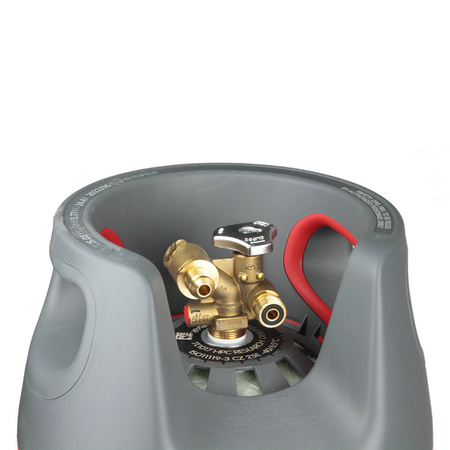

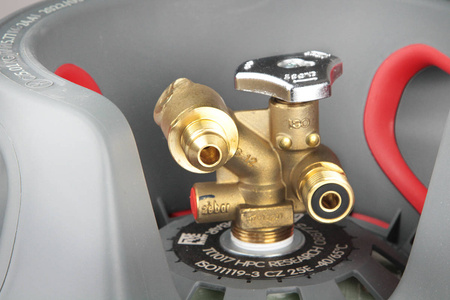

Cylinder is equipped with most common in Europe G12 inlet - outlet valve with rubber sealing, known also as KLF - Kleinflashe (G.12). Valve thread is W 21.8 x 1/14 lh. This type of valve is used in countries such as: Austria, Belgium, Bosnia and Herzegovina, Croatia, Czech Republic, Denmark, Finland, France, Germany, Hungary, Iceland, Ireland, Luxembourg, Netherlands, Norway, Poland, Russia, Serbia, Slovenia, Spain, Switzerland, United Kingdom.
Valve in opposite to standard bottles have unique build in OPD device to make safe refilling at any LPG station possible.

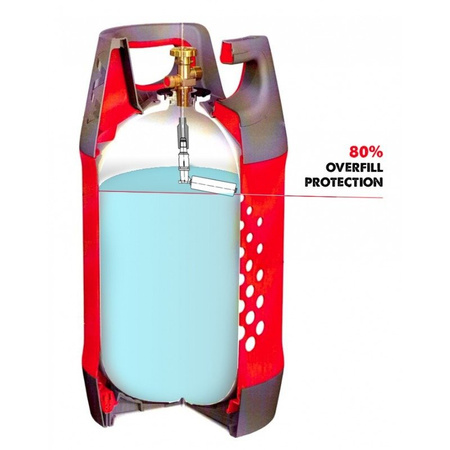

Automatic OPD valve (Overfill Protection Device) which automatically stops refilling pump when the gas level reaches 80%.
Cylinders with refilling adapters for different countries are available on the website as a different products.

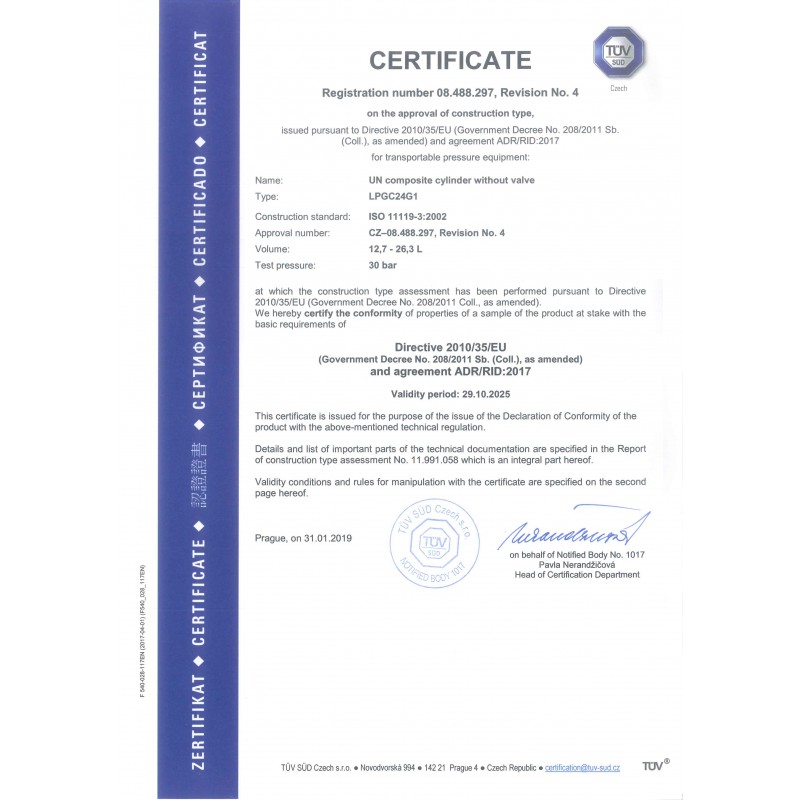

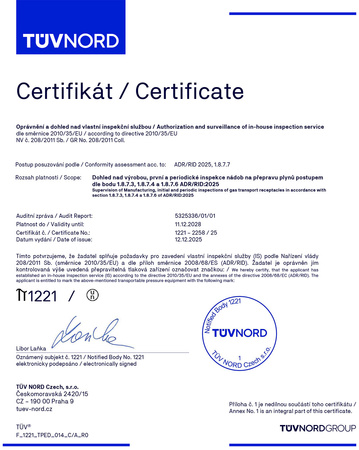

All GasBank cylinders are designed and produced in accordance with Directive 2010/35/UE. They all have the π safety mark issued by TÜV
Main advantages of composite cylinder:
- Safe refuelling propane butane cylinder for cooking, heating and many more, thanks to overfill protection valve
- Ultra low weight
- No rust
- Explosion proof in fire
- Great look
- Easy gas level control, transparent walls
- Cleaning and painting is not required
Technical data
- Check valve: TAK
- Manual shut-off valve: TAK
- Excess flow valve: NIE
- Pressure relief valve (PRV): TAK
- Automatic shut-off valve at 80% level - OPD: TAK
- Output: DIN (G12 KLF) (W21.8 x 1/14 lh)
- Input: external thread JIC 3/4UNF
- LPG level indicator: NIE
Hello,
we sincerely apologise for the very long wait – your question remained unanswered much longer than it should have.
Thank you for your question.
According to the information on the product page for the „2 x GasBank DUO 11kg + zestaw do napełniania typu DISH”, a DUO cylinder does not need to be disconnected from the installation during refilling. It is recommended to close the outlet valve (blue) while refilling, although it is not strictly necessary. Please always follow the manufacturer instructions and the rules of the filling station.
https://carbonzorro.com/pl/products/2-x-gasbank-duo-11kg-zestaw-do-napelniania-typu-dish-1273.html
Kind regards,
Carbon Zorro Team
