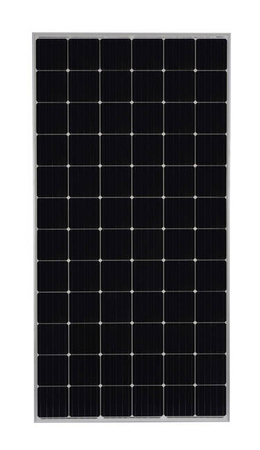

390W Solar panel 1979 x 996mm JA Solar

390W Solar panel 1979 x 996mm JA Solar

JA Solar Holdings Co.,Ltd is a world leading manufacturer of high-performance solar power products that convert sunlight into electricity for residential, commercial and utility-scale power generation . The company was founded in May 2005 and publicly listed on NASDAQ in February 2007. JA Solar has been the world's leading cell producer since 2010, and has firmly established itself as a tier 1 module supplier since 2012.

Key features

• 5BB design reduces cell series resistance and stress between cell interconnects to improve module reliability and conversion efficiency.
• High efficiency, up to 19.8% module conversion efficiency.
• Certified to 1500V DC IEC standard
• 50% more strings and fewer components enables cost reduction
• Anti-soiling surface reduces power loss due to dirt and dust.
• Exceptional performance in low light environments.
• Excellent mechanical load resistance: certified to withstand high wind loads and heavy snow loads.
• Strong salt and ammonia resistance confirmed by TUV NORD.
• Reliable quality- Positive power tolerance: 0~+5W. Modules divided by current to improve system performance. Resistance to potential induced degradation (PID) according to IEC 32804.
• Comprehensive certifications - IEC 61215, IEC 61730, UL1703, CEC Listed, MCS and CE. ISO 9001: 2008: Quality management systems. BS OHSAS 18001: 2007: Occupational health and safety management systems.

Technical Data

• STC rated power: 390W
• Module efficiency: 19,8%
• Implementation technology: Monocrystalline
• Finish colour: Silver Frame
• Temperature power drop factor: -0,370%
• Dimensions: 1979mm x 996mm x 40mm
• Weight: 22.3kg
• Warranty on product: 12 years
• Warranty on efficiency: 25 years
