40 Litres Motorhome Underslung Gas Tank Ø300mm by 646mm
40 Litres Motorhome Underslung Gas Tank Ø300mm by 646mm
40 Litres Motorhome Underslung Gas Tank Ø300mm by 646mm
40 Litres Motorhome Underslung Gas Tank Ø300mm by 646mm
Pojemność [L]40
Średnica [mm]300
Długość [mm]646

40 Litres Motorhome Underslung Gas Tank Ø300mm by 646mm

567,02 €
incl. VAT / szt.
Express checkout 1-Click(without registration)
This product is not available in a stationary store
Safe shopping

Motorhome Vapour Gas Tank with set of valves and box

Red vapour tanks are specially designed for campervans, caravans, motorhomes and any other RV vehicles as they provide gas in vapour phase.

The tank can be safely refilled trough dedicated filling point at every Autogas LPG service station.

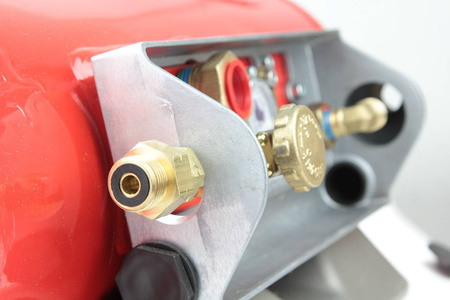

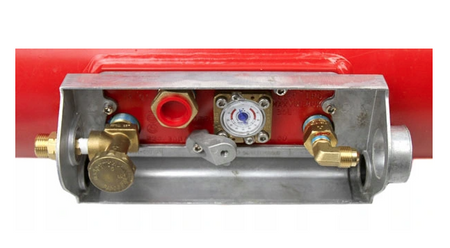

Valves

  • Manual outlet valve, thread without adapter: 1/4" NPT, with adapter: W21.8 LH
  • over pressure relief valve (PRV) - in case of sudden pressure increase (over 27 bar) the excess gas is released to the environment
  • gas level float with mechanical gauge
  • filling valve with 80% cut off valve (OPD), female thread without elbow: 3/8" NPT, with elbow 3/4" UNF JIC
Diameter [mm]Lenght [mm]Capacity [L]80% capacityEmpty weight [kg]Full tank weight [kg]
200 583 16 13L (6.76kg) 13.5 20
200 717 20 16L (8.32kg) 15 23
200 884 25 20L (10.4kg) 16.8 26.8
200 1052 30 24L (12.48kg) 18.9 30.9
230 630 23 18L (9.36kg) 14.5 23.5
230 809 30 24L (12.48kg) 16.5 28.5
230 1014 38 30L (15.6kg) 19.2 34.2
270 605 30 24L (12.48kg) 14.6 26.6
270 792 40 32L (16.64kg) 17.2 33.2
270 1069 55 44L (22.88kg) 21.7 43.7
300 646 40 32L (16.64kg) 17.2 33.2
300 935 60 48L (24.96kg) 21.8 45.8
300 1085 70 56L (29.12kg) 23.4 51.4
315 869 60 48L (24.96kg) 24.5 48.5
315 1007 70 56L (29.12kg) 28.4 56.4
360 629 55 44L (22.88kg) 24.9 46.9
360 936 85 68L (35.36kg) 33 67
360 1099 100 80L (41.6kg) 36 76
360 1298 120 96L (49.92kg) 40.2 88.2



Brand
Symbol
GB-ZP-040-300
Producer code
Z0173040
Parametry zbiornika
Pojemność [L]
40
Średnica [mm]
300
Długość [mm]
646
Wsporniki (2 szt.) - litera U
Tak
80% gas capacity
32L (16.64kg)
Waga na pusto [kg]
17.2
Waga na pełno [kg]
33.2
