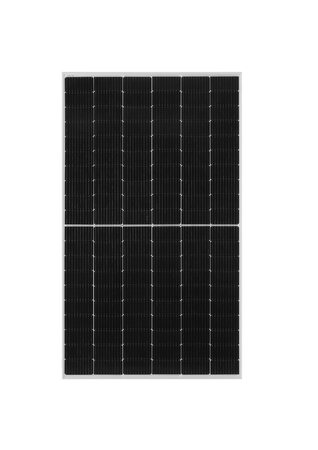

450W Solar panel 1903 x 1134mm Tiger Pro 60HC Jinko Solar

450W Solar panel 1903 x 1134mm Tiger Pro 60HC Jinko Solar

Key features

• Multi Busbar Technology - Better light trapping and current collection to improve module power output and reliability.
• Durability Against Extreme Environmental Conditions - High salt mist and ammonia resistance.
• Reduced Hot Spot Loss - Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.
• Enhanced Mechanical Load - Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
• PID Resistance - Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Technical Data

• STC rated power: 450W
• Module efficiency: 21,08%
• Implementation technology: Monocrystalline
• Maximum Power Voltage (Vmp): 34.06V
• Maximum Power Current (Imp): 13.36A
• Open-circuit Voltage (Voc): 41.33V
• Short-circuit Current (Isc): 13.93A
• Frame: Anodized Aluminium Alloy
• Junction Box: IP68 Rated
• Output Cables: TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length
• Front Glass: 3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
• Dimensions: 1903×1134×30mm (74.92×44.65×1.18 inch)
• Weight: 24.2kg
• 12 Year Product Warranty
• 25 Year Linear Power Warranty
• 0.55% Annual Degradation Over 25 years
