90° angled sink drain with plug, 1 1/4" thread, hose connector Ø 20 and 25 mm - motorhome, caravan, boat
- 90° angled sink drain with 1 1/4" thread, strainer and plug with handle. The stepped connector fits a Ø 20 mm or Ø 25 mm hose. The side outlet saves space under the sink in motorhomes, caravans and boats.

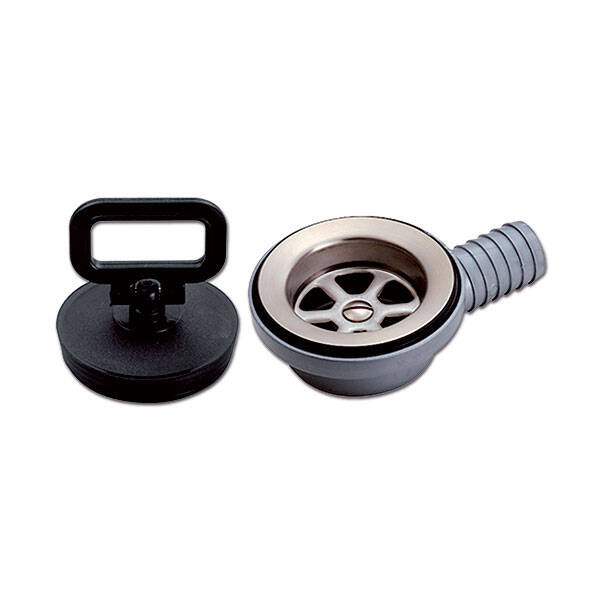

The 90° angled drain is a complete set for connecting a sink in a motorhome, caravan or boat. It consists of a strainer with flange, a seal, a body with a side outlet and a rubber plug with handle. The drain hose leaves from the side instead of straight down, so the drain takes little space under the sink and the hose is easy to route to the grey water tank.
Key features
- 90° side outlet - little space needed under the sink
- 1 1/4" thread
- stepped hose connector for Ø 20 mm or Ø 25 mm hose
- strainer with Ø 70 mm flange and rubber plug with handle
- seal included

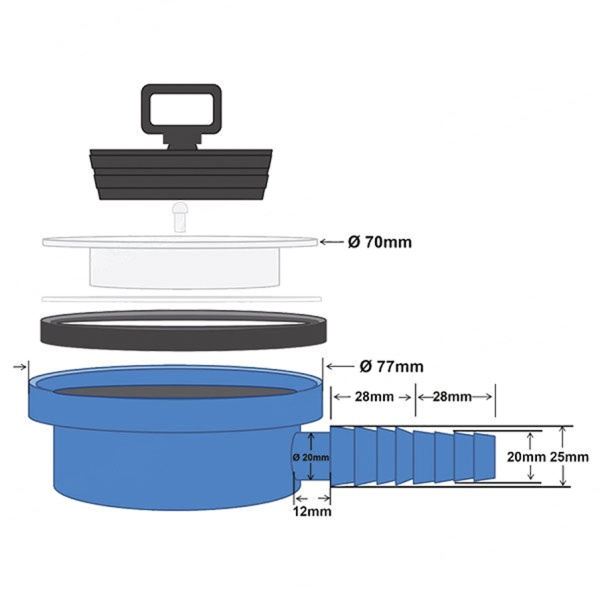

Dimensions
- strainer flange Ø 70 mm
- body Ø 77 mm
- thread and drain hole diameter Ø 58 mm
- plug Ø 50 mm
- hose connector: Ø 20 mm and Ø 25 mm, length 55 mm
Installation
- the strainer goes into the sink drain hole from above and the body is screwed on from below on the seal
- measure the drain hole of your sink before buying and compare it with the drain dimensions
- push the hose onto the matching step of the connector and secure it with a clip
- route the hose with a fall and without kinks so the water drains freely
Related products
- CAN angled sink drain Ø 55 mm with plug, 20/25 mm hose
- CAN 90° elbow sink drain for 54-55 mm hole, 20 or 25 mm hose
- FAWO 90° angled sink drain with plug - 30 mm hole, 19 mm hose
Technical data
| Parameter | Value |
|---|---|
| Type | 90° angled sink drain |
| Thread | 1 1/4" |
| Strainer flange | Ø 70 mm |
| Body | Ø 77 mm |
| Thread / drain hole | Ø 58 mm |
| Plug | Ø 50 mm, with handle |
| Hose connector | Ø 20 mm and Ø 25 mm, length 55 mm |
| Included | strainer, seal, body with connector, plug |
Questions and answers
Which hose does it fit?
The connector is stepped, so it fits a Ø 20 mm or Ø 25 mm hose. Secure the hose with a clip.
Is the plug included?
Yes. A rubber plug with handle, the strainer and the seal are included.
Will it fit my sink?
Measure the drain hole of your sink and compare it with the dimensions in the table: the strainer flange is Ø 70 mm and the thread Ø 58 mm.
Why an angled drain?
The hose leaves from the side, so there is more space under the sink and the hose is easier to route to the grey water tank.
Manufacturer
Carbon Zorro Sp. z o.o., ul. Humańska 8, 02-789 Warszawa, Poland.
