Air conditioning Telair Ultra Comfort 6000, 230 Volt

Air conditioning Telair Ultra Comfort 6000, 230 Volt Teleco

The idea behind the design of the Ultra Comfort 6000 is to create new spaces and utilize areas of the vehicle that would normally remain unused.

A light roof and free roof hatches

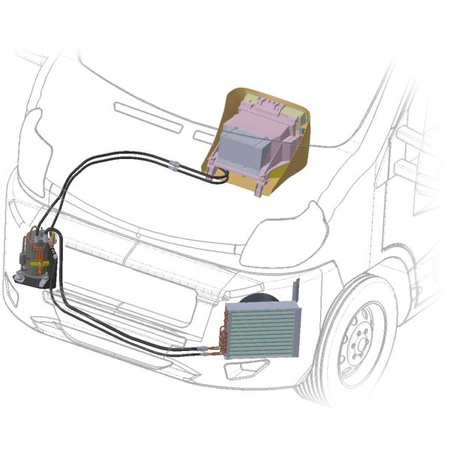

The innovative design moves the air conditioning units for motorhomes from the roof to the engine compartment, with the diffuser under the dashboard. This makes it possible to free up space on the roof, lower the center of gravity and, especially in vehicles with pop-up roofs, to install a separate air conditioning unit for the interior.

The Ultra Comfort 6000 air conditioning system fits perfectly into Teleco's "smart" ecosystem with the help of the optional ICW interface adapter and is designed to connect via WiFi to the on-board router, such as Teleco WLT24EX2 4G, item no. 70 765 (catalogue page 867). This means that the air conditioning can be controlled directly from the beach. When you return to the vehicle, you have a cool, comfortable environment without wasting unnecessary energy.

Easy installation

The installation of the Ultra Comfort 6000 is very simple as all the parts are connected by flexible hoses with quick couplings and the refrigerant gas is already charged into the air conditioning system. It is currently compatible with the engine compartments of Stellantis vehicles such as Fiat Ducato (series 7, 8, 9 and 2024), Citroen Jumper, Peugeot Boxer and Opel Movano from 2021/09. The air conditioning system is particularly recommended for recreational vehicles with a total length between 5 and 8 meters.

ventilation from below

Instead of cold air being blown from top to bottom, the Ultra Comfort 6000 introduces air from below, thus avoiding annoying cold shocks when passing through the interior.

Maximum silence and protection

The mechanical part is located in the engine compartment, so that the air conditioning is located outside the cabin in a soundproof room and less noise is noticeable.

Maximum security and protection

Since the Ultra Comfort 6000 is virtually invisible and installed in a closed compartment in the motorhome, it is protected from both bad weather and theft.

pet-friendly

The low noise level, ventilation from below and high performance make the Ultra Comfort 6000 a very good choice for pet lovers.

Technical data:

• power supply 230V
• current consumption < 3A
• cooling capacity 6000 Btu/h
• heating capacity 5700 Btu/h
• coolant R 134a
• operation for cooling and heating (heat pump)
• Fan speeds 3 (speeds) + automatic
• Ventilation with vertically and horizontally adjustable grilles
• moving air volume 360 ​​m ³ /h
• Display device: LCD, with cabin temperature display
• Controls: Remote control, APP
• Diffuser dimensions W 46 x H 37.2 x D 35 cm
• Weight 28 kg

Scope of delivery:

• indoor unit
• compressor
• capacitor

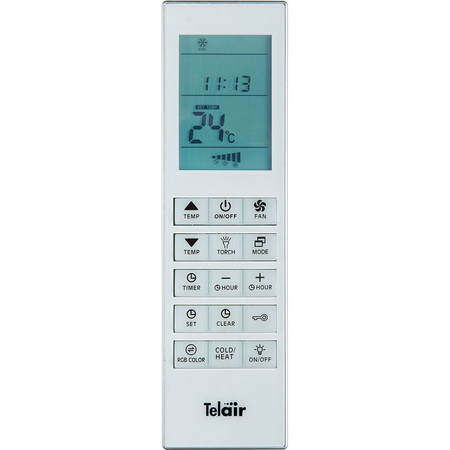

• remote control
• assembly materials
