AQUA HOT Gen 1 P6 E heating system - LPG 6kW + accessories
AQUA HOT Gen 1 P6 E heating system - LPG 6kW + accessories

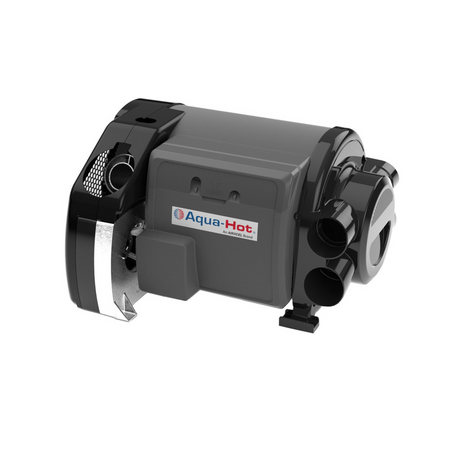

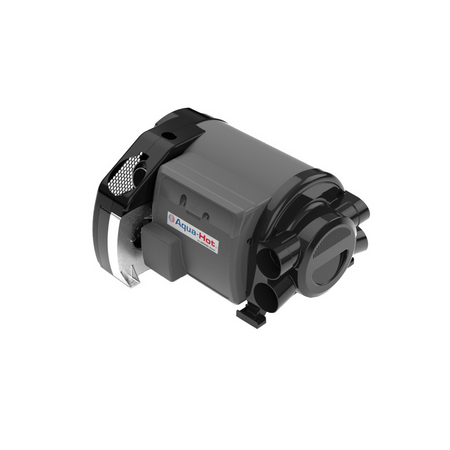

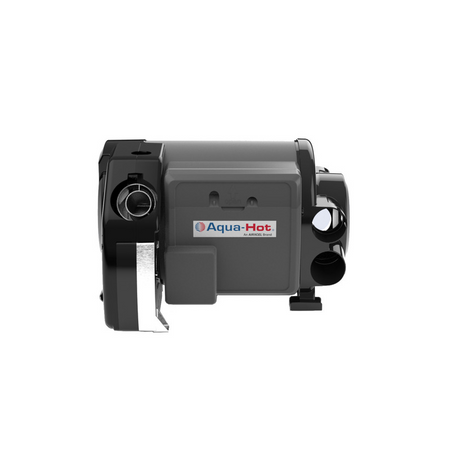

The Aqua-Hot Gen 1 P6 E is a compact forced-air heating system with a 10-litre water heater in one unit, powered by gas (propane-butane) and electricity, designed specifically for motorhomes. With the Aqua-Hot GEN1, you save space and energy. In addition, the electric mode saves fuel when the unit is connected to a 230 V mains supply.
The Gen1 is a multifunctional unit designed to save space and weight in the vehicle while providing the highest level of comfort.
Hot water - the Aqua-Hot Gen1 will heat (10 litres) of water to 60 degrees celsius in approximately 20 minutes.
Zone heating - 4 connection points for heated air are available, which can be ducted (60 mm) to different locations.
Anode-free (maintenance-free) design - unlike conventional water heaters, there is no anode to replace in the Aqua-Hot Gen1 water heater.
Three fuel options - it can run on diesel, petrol or propane.

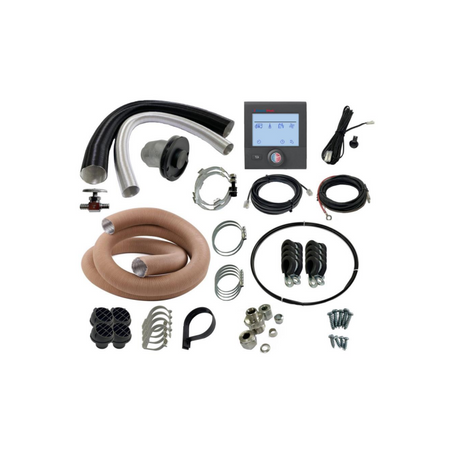

The Aqua-Hot Gen1 comes with everything you need to install the heater in your camper/caravan, with control panel, flexible hoses and outlet and inlet pipes.

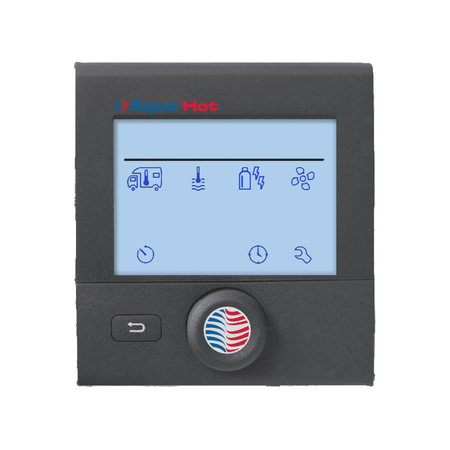

Control panel + connection cable (5.70 m)Temperature detector + cable (4.00 m)Power cable 12 V (4.00 m)Air inlet/outlet (1.00 m)Chimney set for external wallsAir duct (ØExt-65mm / ØInt 60mm) - 8,00mAir duct cover (Ø60mm) - 4 pcs.Sets of clamps for air intakes and air ductsLPG steel pipe Ø8 mm - 2.50 mFittings + ferrules for LPG pipe Ø8.00 mmFittings with gasket for LPG pipe Ø8.00 mmManual drain/reduction valve 1/2'' PEXTechnical characteristics
Type: Gas (Propane/Butane)Power: 12 V DC - 230 V ACWorking pressure: 30 mbarHeating power: 2,000 W / 4,000 W / 6,000 WElectric mode Power output: 900 W / 1,800 WFuel consumption: 160 - 480 g/hWater tank: 10 lCurrent consumption (12 V): Max. 5.6 A for a short time (average 1.3 A)Current consumption (230 V): 3,9 - 7,8 ADimensions (L x W x H): 510 x 450 x 300 mmWeight: 15.6 kgHot air flow rate: max. 287 m3/h -Water pump pressure: max. 287 m3/hWater pump pressure: max. 2.8 barSystem pressure: max. 4.5 barHot water options: 40°C - 60°CDrain at low pointNo anode designAutomatic timerTryb elektryczny Moc wyjściowa
Pobór prądu (12 V)
Max. 5,6 A przez krótki czas (średnio 1,3 A)
Wymiary (dł. x szer. x wys.)
Odpływ w najniższym punkcie
