AS Schwabe CEE 16 A to Schuko adapter plug 230 V, approx. 3.5 kW, IP44 - compact, for motorhome and caravan
- Compact AS Schwabe adapter from a CEE 230 V 16 A plug to a Schuko socket with hinged cover. Load up to 16 A, approx. 3.5 kW, IP44 rated. Housing made of highly break-resistant plastic. For motorhomes and caravans.

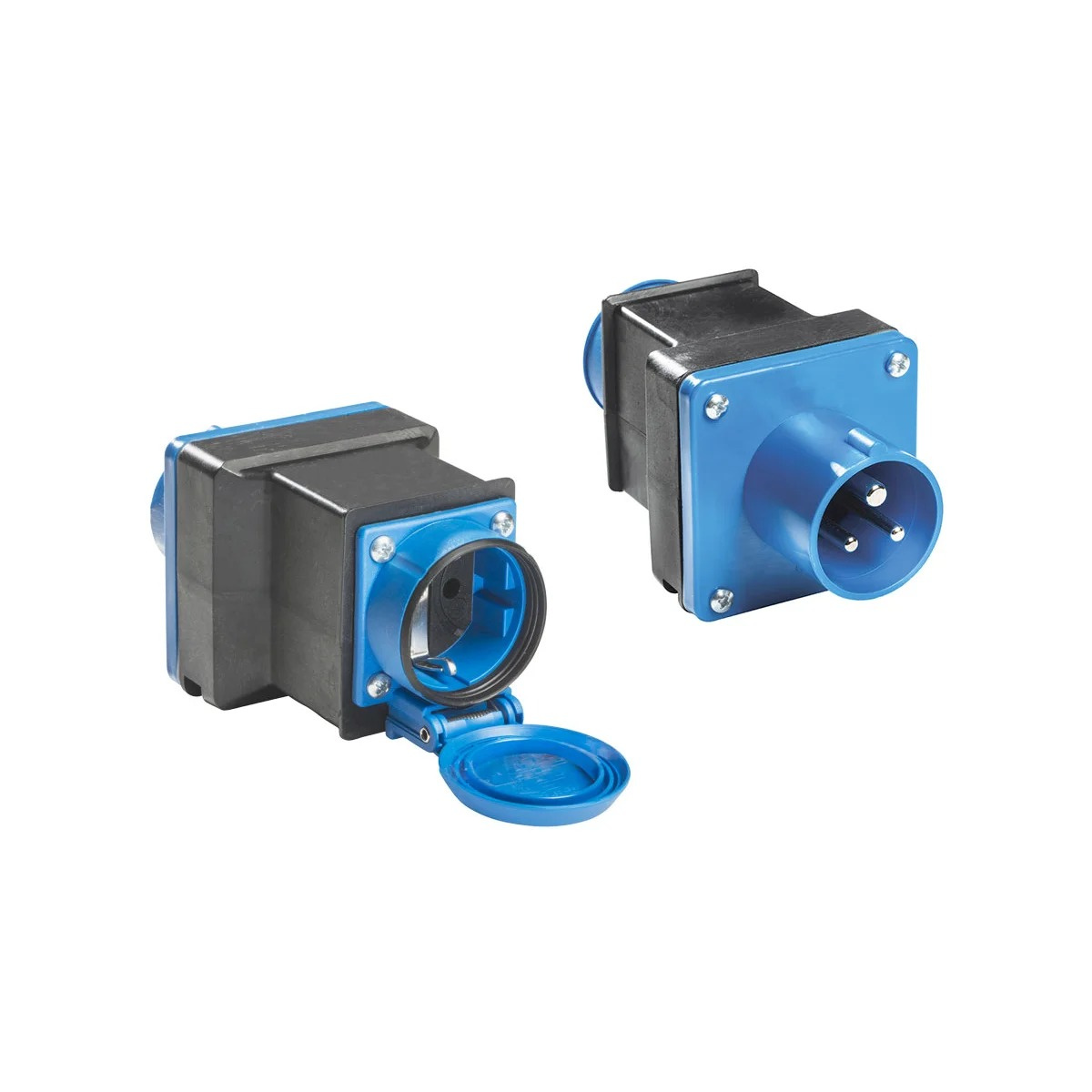

The AS Schwabe Caravan adapter plug 16 A turns a CEE plug into a standard Schuko socket. Plug it into the CEE socket on a campsite power post or a CEE extension cable and connect a device or cable with a Schuko plug. The adapter is compact, with no cable, handles a load of up to 16 A, approx. 3.5 kW and is rated IP44.
What it does
- powers devices with a Schuko plug from a CEE socket at a campsite, marina or building site
- connects a CEE extension cable to a cable or device with a Schuko plug
- small and cable-free, fits in a motorhome or caravan locker
Connections

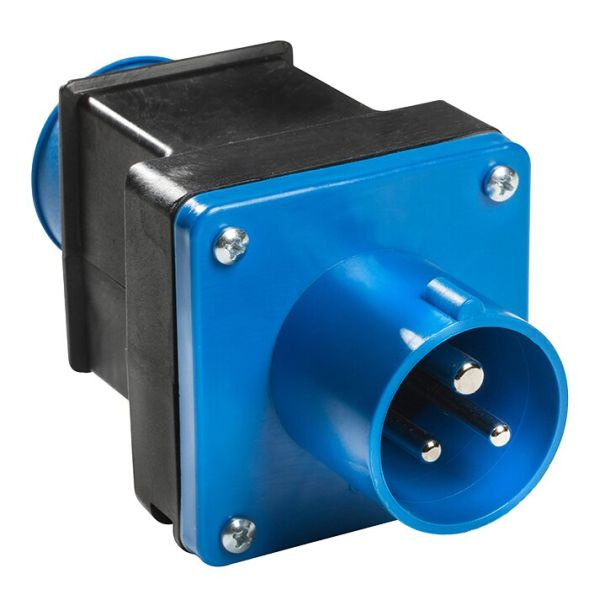

- input: CEE plug 230 V, 16 A, 3-pin
- output: 1 Schuko socket 230 V, 16 A with earthing contact

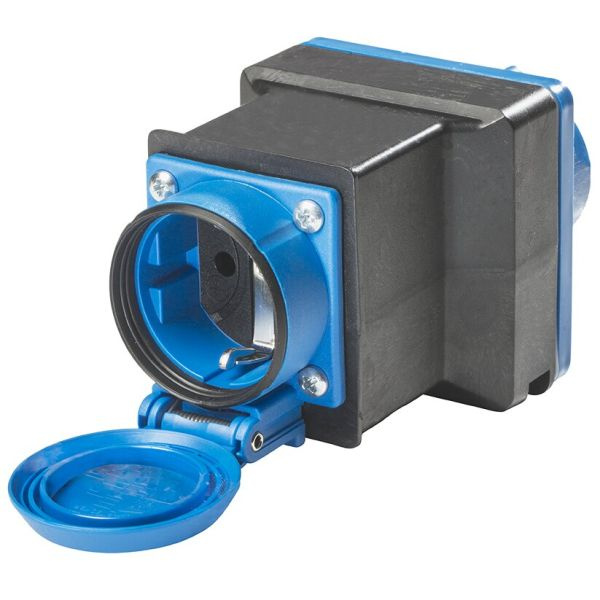

- Schuko socket with hinged cover
Safety and standards
- IP44 - protected against foreign bodies and splash water
- housing made of highly break-resistant special plastic
- tested to DIN VDE 0620-2-1 and IEC 60309
- the adapter has no protection of its own, it relies on the protection of the supply it is plugged into
Technical data
- voltage: 230 V
- current: 16 A
- power: approx. 3.5 kW
- dimensions (L x W x H): 14 x 7.5 x 7.5 cm
- net weight: 200 g (0.2 kg)
Related products
- AS Schwabe CEE adapter to French socket 16 A
- AS Schwabe Schuko to CEE adapter 16 A with 1.5 m cable
- AS Schwabe CEE extension cable 1.5 m 2.5 mm²
- AS Schwabe CEE extension cable 10 m 3x2.5 mm²
- AS Schwabe CEE extension cable 25 m 3x2.5 mm²
- AS Schwabe mobile CEE energy meter, MID certified
Technical data
| Parameter | Value |
|---|---|
| Brand | AS Schwabe |
| Model | Caravan adapter plug 16 A, approx. 3.5 kW |
| Input | CEE plug 230 V, 16 A, 3-pin |
| Output | 1 Schuko socket 230 V, 16 A with earthing contact |
| Socket cover | hinged |
| Max. load | 16 A, approx. 3.5 kW |
| Protection rating | IP44 |
| Fuse protection | none |
| Housing | highly break-resistant special plastic |
| Colour | blue, secondary colour black |
| Standards | DIN VDE 0620-2-1, IEC 60309 |
| Dimensions (L x W x H) | 14 x 7.5 x 7.5 cm |
| Net weight | 200 g (0.2 kg) |
| EAN | 4011160604942 |
| Quantity | 1 pc |
Questions and answers
What do I plug the adapter into?
Plug the CEE side into a CEE 230 V 16 A socket, for example on a campsite power post or a CEE extension cable. Connect a device or a cable with a Schuko plug to the Schuko socket.
What load can it take?
Up to 16 A, which is approx. 3.5 kW at 230 V.
Does the adapter have a cable?
No, it is a compact adapter plug without a cable.
Can I use it outdoors?
It is rated IP44, so it is protected against foreign bodies and splash water.
Does it have a fuse or RCD?
No, the adapter has no protection of its own. It relies on the protection of the supply it is plugged into.
Manufacturer
as - Schwabe GmbH, Merkurstraße 10, 72184 Eutingen im Gäu, Germany.
