Autolift 2 -Jack System

Autolift 2 -Jack System

Linnepe Autolift

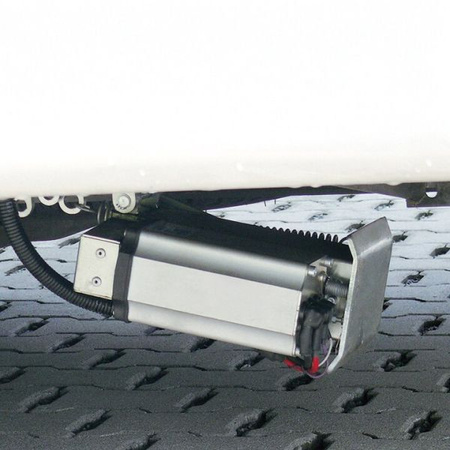

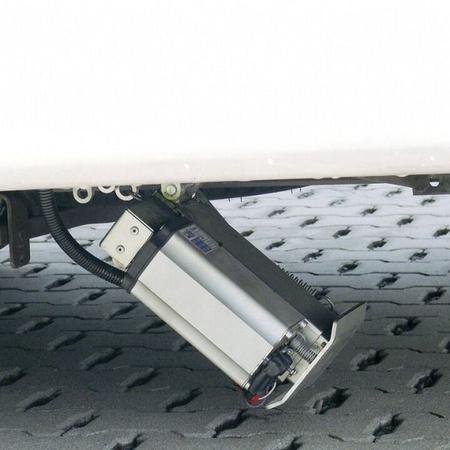

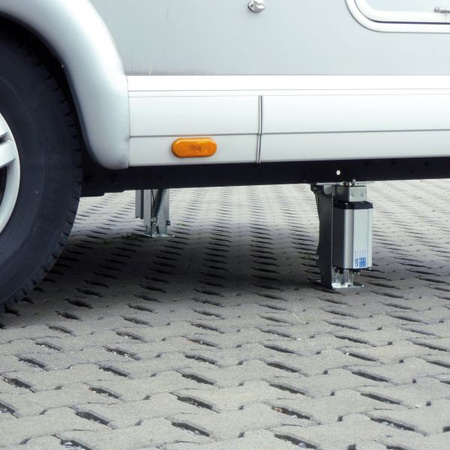

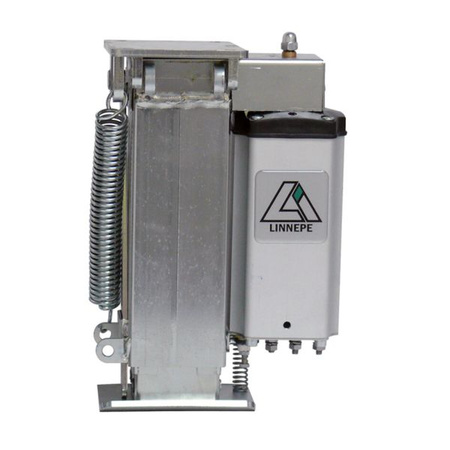

The fully-automatic support pillars with waterproof motors and connections provide permanent durability due to their sturdy, galvanized construction. The support pillars, which provide comfort and are easy to install to vehicle frame, are available as a 2- or 4-piece set.

• For all standard vehicle types up to 5.5 t
• 2 t lifting capacity per pilla
• No torsion powers due to even lifting provided by the pillars always being used in pairs
• Fully-automatic levelling of the 4-support pillar system
• Manual emergency control during power cut
• Lifting length: 180 mm
• Basic length: 300 mm (expendable for up to 430 mm)
• Weight per support pillar: 11 kg, completely: 49 kg
• Ground clearance of min. 330 mm has to be ensured

Scope of delivery:Support pillars, pre-connected central unit, control unit with connection cables, extension cables (2 x 40 mm, 2 x 20 mm, 2 x 10 mm length)
