Autoterm air outlet flange Ø 90 mm, black - body without grille, for Air 4D heater
ID produktu: 82558
- Black Ø 90 mm warm air outlet flange (body) for the Autoterm Air 4D parking heater. The grille or deflector is not included and must be ordered separately.

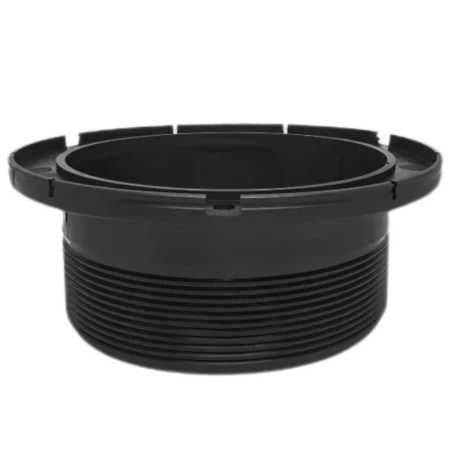

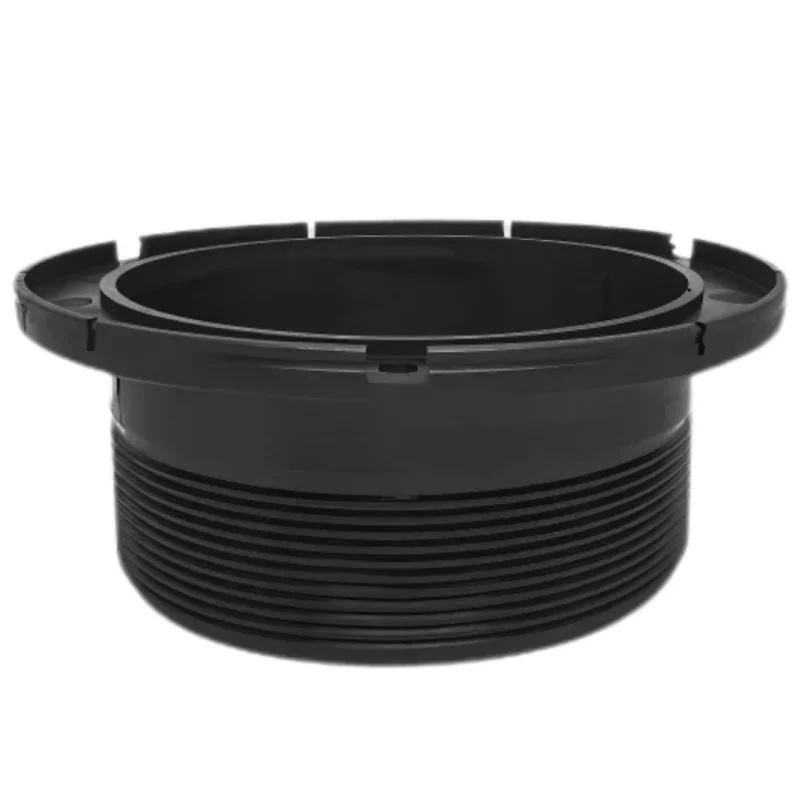

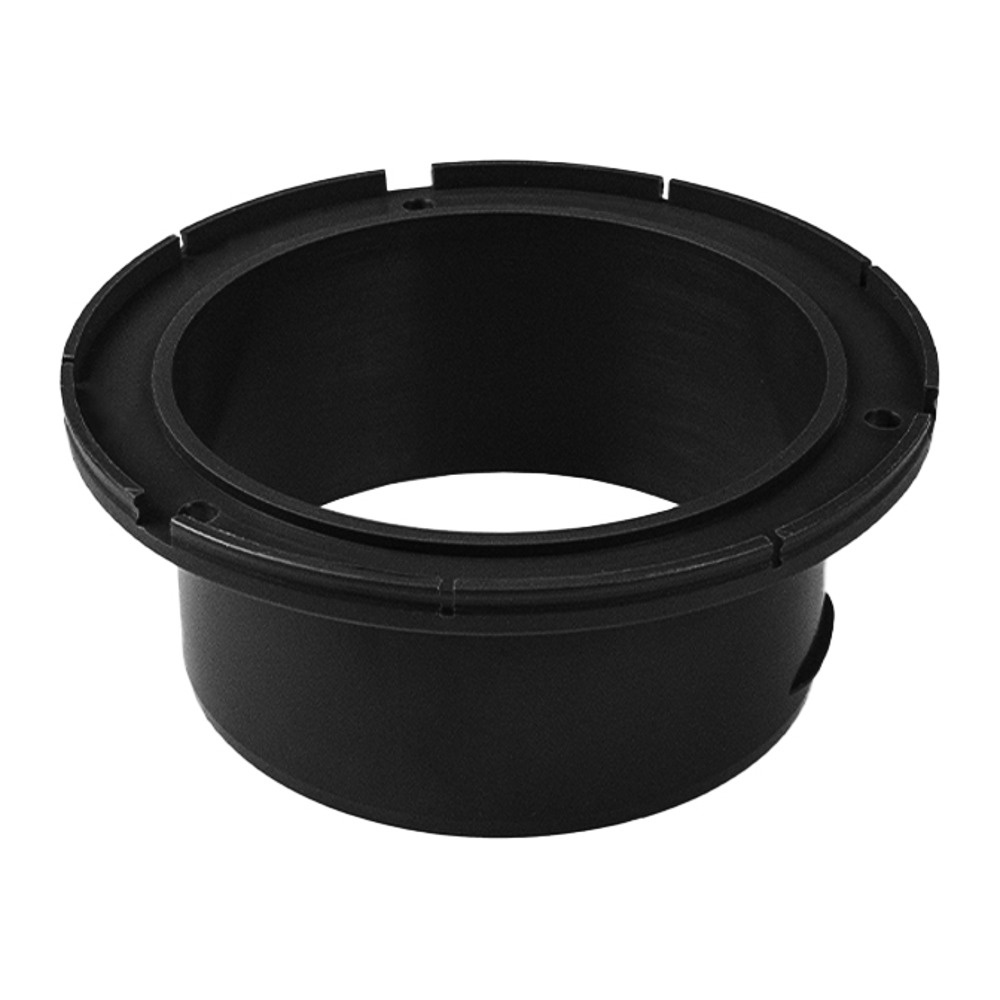

The Autoterm Ø 90 mm flange is the black body of a warm air outlet for the Autoterm Air 4D parking heater. It is fitted into a wall or panel and connected to a Ø 90 mm air hose. According to the manufacturer, the flange and the grille (deflector) are separate parts - the grille is not included.
Key features
- Ø 90 mm air outlet body, black
- for the Autoterm Air 4D heater
- without grille and deflector - order them separately
Compatible grilles according to Autoterm
- Ø 75/90 mm grille ATR2-G30D7590-BK
- Ø 90 mm skew grille P6334
- semicircular grille P9126
Part numbers
- older Autoterm part number of the Ø 90 mm flange: P4942
- current manufacturer version: ATR2-FD90-BK (black)
Related products
- air outlet Ø 75/90 mm
- Autoterm warm air hose Ø 90 mm, per metre
- Autoterm Air 4D installation kit
- Autoterm Air 4D heater with PU-5 panel
Technical data
| Parameter | Value |
|---|---|
| Brand | Autoterm |
| Type | air outlet flange (body) |
| Diameter | 90 mm |
| Colour | black |
| Heater | Autoterm Air 4D |
| Grille | not included, order separately |
| Compatible grilles | ATR2-G30D7590-BK, P6334, P9126 |
| Autoterm part numbers | P4942, newer version ATR2-FD90-BK |
Questions and answers
Is a grille included?
No. This is the body only, the grille or deflector is ordered separately.
Which heater does it fit?
The Autoterm Air 4D parking heater with a Ø 90 mm air hose.
Which grilles fit?
According to Autoterm: Ø 75/90 mm grille ATR2-G30D7590-BK, Ø 90 mm skew grille P6334 and semicircular grille P9126.
Manufacturer
AUTOTERM RIGA LLC, 72 Paleju street, Marupe, LV-2167, Latvia.
ID produktu
82558
Brand
Product length in centimeters
20
Product width in centimeters
12
Product height in centimeters
12
