Truma Aventa compact 2nd generation roof air conditioner - black, 1700 W cooling, 1200 W heating, vehicles up to 6 m
- Truma Aventa compact 2nd generation, black: roof air conditioner with heat pump for motorhomes and caravans up to 6 m. Cooling 1700 W, heating 1200 W, 230-240 V, 40 x 40 cm cut-out. Air distributor sold separately.

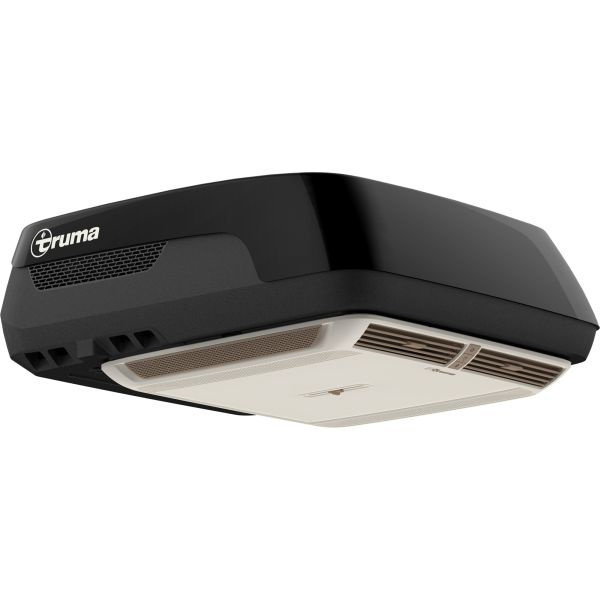

The Truma Aventa compact 2nd generation is a roof-mounted air conditioner for motorhomes and caravans up to 6 m long. It cools with 1700 W and, thanks to its integrated heat pump, can also heat with 1200 W. The infinitely variable compressor and indoor fan together with the night mode keep noise low, and the low starting current means it works on campsites with lower fuse ratings. This version has a black external unit.
Performance
- cooling: 1700 W (current 3.3 A at 230 V)
- heat pump heating: 1200 W (current 1.55 A), possible above approx. 4°C outside temperature
- air flow: 575 m³/h
- infinitely variable inverter compressor and indoor fan
- night mode and low starting current
Control

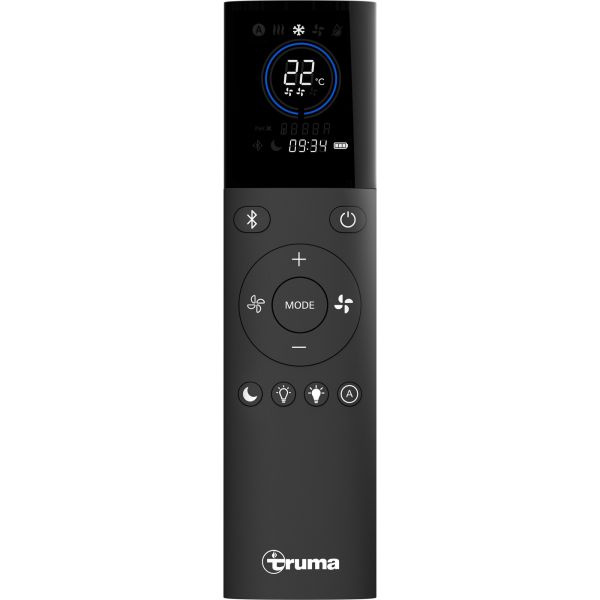

- Bluetooth remote control (supplied with the air distributor)
- Truma iNet X panel or app - iNet X Interface AC included
- alternatively the new Truma CP plus
- button on the air distributor starts the system with a 22°C preset
Installation
- roof cut-out 400 x 400 mm or 380 x 350 mm
- roof thickness 25-110 mm (manufacturer installation dimensions)
- external unit 786 x 577 x 245 mm (L x W x H)
- adapter frames for Fiat Ducato, Ford Transit and Mercedes Sprinter available separately
Warranty and origin
- 5-year parts warranty when installed by an authorised Truma partner
- designed and made in Germany (Munich area)
Matching products
- Aventa Basic air distributor - cappuccino
- Aventa Basic air distributor - stone (grey)

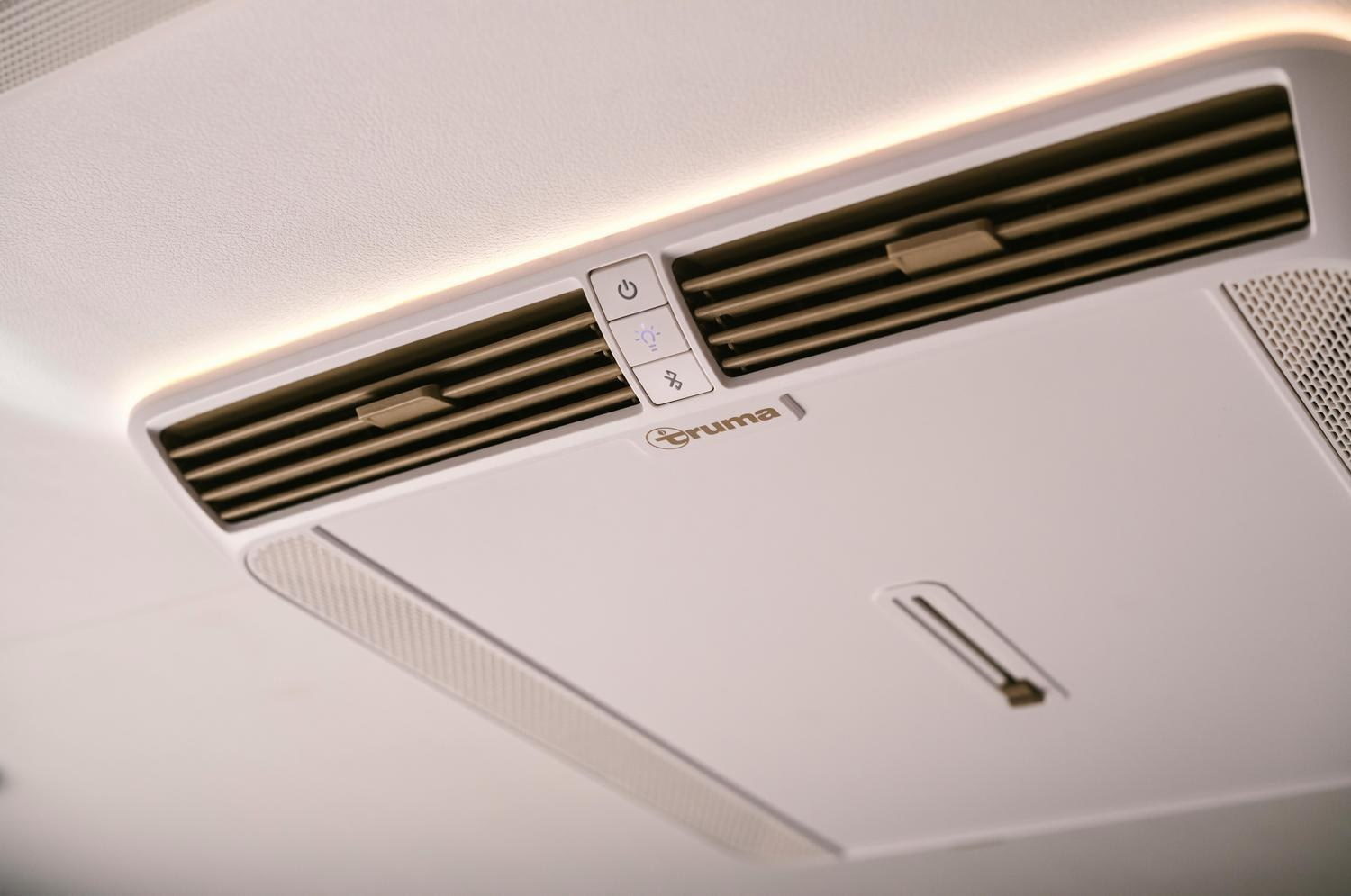

- Aventa Premium air distributor with LED lighting - cappuccino
- Aventa Premium air distributor with LED lighting - stone (grey)
- Truma Aventa compact 2nd generation - white, 1700 W
- Truma Aventa compact plus 2nd generation - white, 2200 W
- Truma Aventa compact plus 2nd generation - black, 2200 W
- Truma Aventa comfort 2nd generation - white, 2500 W
- Truma Aventa comfort 2nd generation - black, 2500 W
- adapter frame compact / compact plus 2nd generation - Fiat Ducato (PSA/PMA)
- adapter frame compact / compact plus 2nd generation - Ford Transit
- adapter frame compact / compact plus 2nd generation - MB Sprinter
- cover for Aventa compact 2nd generation
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Truma |
| Model | Aventa compact 2nd generation |
| External unit colour | black |
| Truma item no. | 44201-02 |
| EAN | 4052816044484 |
| Cooling power | 1700 W |
| Current - cooling (230 V) | 3.3 A |
| Heating power (heat pump) | 1200 W |
| Current - heating (230 V) | 1.55 A |
| Voltage | 230-240 V, 50 Hz |
| Air flow | 575 m³/h |
| Vehicle length | up to 6 m |
| External unit dimensions | 786 x 577 x 245 mm |
| Air distributor dimensions | 550 x 497 x 45 mm |
| Roof cut-out | 400 x 400 mm or 380 x 350 mm |
| Roof thickness | 25-110 mm |
| Weight incl. air distributor | 23.2 kg |
| Scope of delivery | external unit, iNet X Interface AC, installation template, installation and operating instructions |
| Warranty | 5 years on parts when installed by a Truma partner |
Questions and answers
Is the air distributor included?
No. The external unit needs an Aventa 2nd generation air distributor: Basic or Premium with LED lighting, in cappuccino or stone. The Bluetooth remote control comes with the air distributor.
Which vehicles is this model for?
Truma recommends the Aventa compact for vehicles up to 6 m long.
Can it heat?
Yes, the integrated heat pump heats with 1200 W when the outside temperature is above approx. 4°C.
What roof opening is needed?
A standard 400 x 400 mm or 380 x 350 mm opening, roof thickness 25-110 mm.
Manufacturer
Truma Gerätetechnik GmbH & Co. KG, Wernher-von-Braun-Straße 12, 85640 Putzbrunn, Germany.
