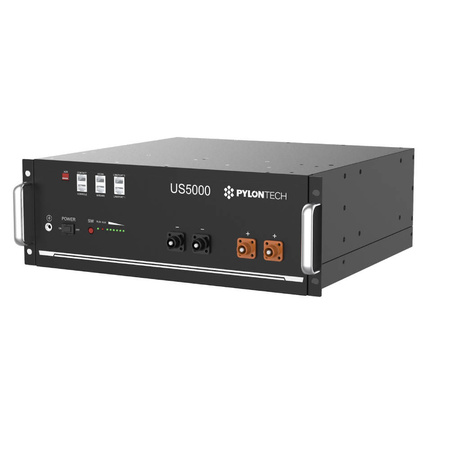

Battery LiFePo4 Pylontech 4.8 kWh US5000 1 phase 48V battery

Battery LiFePo4 Pylontech 4.8 kWh US5000 1 phase 48V

The PYLONTECH 48V US5000 4.8 kWh Lithium Battery is an economical and advanced solution for home energy storage, representing lithium-ion-phosphate battery technology. Its main advantage, besides its attractive price, is its significant compatibility with many brands of inverters on the market, as well as its modular format, which allows for simple installation in a 19' cabinet.

This PYLONTECH lithium battery has a weight of 40 kg, and the longevity - with over 8,000 cycles and a depth of discharge of 95% - ensures that there is no need to change the battery frequently. This means that the price of the battery is quickly compensated for.

The PYLONTECH 48V US5000 4.8 kWh battery includes a self-cooling module, battery balancing system (BMS) and simple configurations that can be customised to suit the needs of the installation or photovoltaic array. It offers parallel operation and rack or bracket mounting, offering users a range of configuration options.

Thanks to the technology used in the PYLONTECH US5000, the battery can be connected in parallel to up to 16 units with current Model C software. Using a hub, it is possible to place up to five blocks of 16 units each in the same installation.

The PYLONTECH 48V US5000 4.8 kWh lithium battery also includes multiple communication protocols that allow the battery to communicate to share charging parameters and proper operation. It is a maintenance-free, sealed module designed for indoor installation, offering all its functions without any maintenance over its lifetime.

• Nominal Voltage (VDC): 48
• Nominal Capacity (Wh): 4800
• Usable Capacity (Wh): 4560
• Depth of discharge (%): 95
• Dimension (mm): 442*420*161
• Weight (Kg): 39.7
• Discharge Voltage (VDC): 43.5 ~ 53.5
• Charge Voltage (VDC): 52.5 ~ 53.5
• Recommended Charge/Discharge Current (A) *: 80
• Max. continuous Charge/Discharge Current (A) *: 100
• Peak Charge/Discharge Current (A): 101-120@15min. 121~200@15sec
• Communication: RS485, CAN
• Configuration (max. in 1 battery group): 16 pcs
• Working Temperature(°C): 0°C ~50°C Charge, -10°C ~50°C Discharge
• Shelf Temperature (°C): -20°C~45°C
• Short current/duration time: <2000A/1ms
• Cooling type: Natural
• Breaker: No
• Protective class: I
• IP rating of enclosure: IP20
• Humidity: 5% ~ 95%(RH) No Condensation
• Altitude(m): 5S4000
• Certification: TUV/CE/UL/UN38.3
• Design life (year): 15+ (25°C 177 °F)
• Cycle Life (cycle) **: >8,000 25°C
• Reference standards: IEC62619, IEC63056, UL1973, UL9540A, IEC61000-6-2, IEC61000-6-3, UN38.3
