Battery Monitor
Battery Monitor

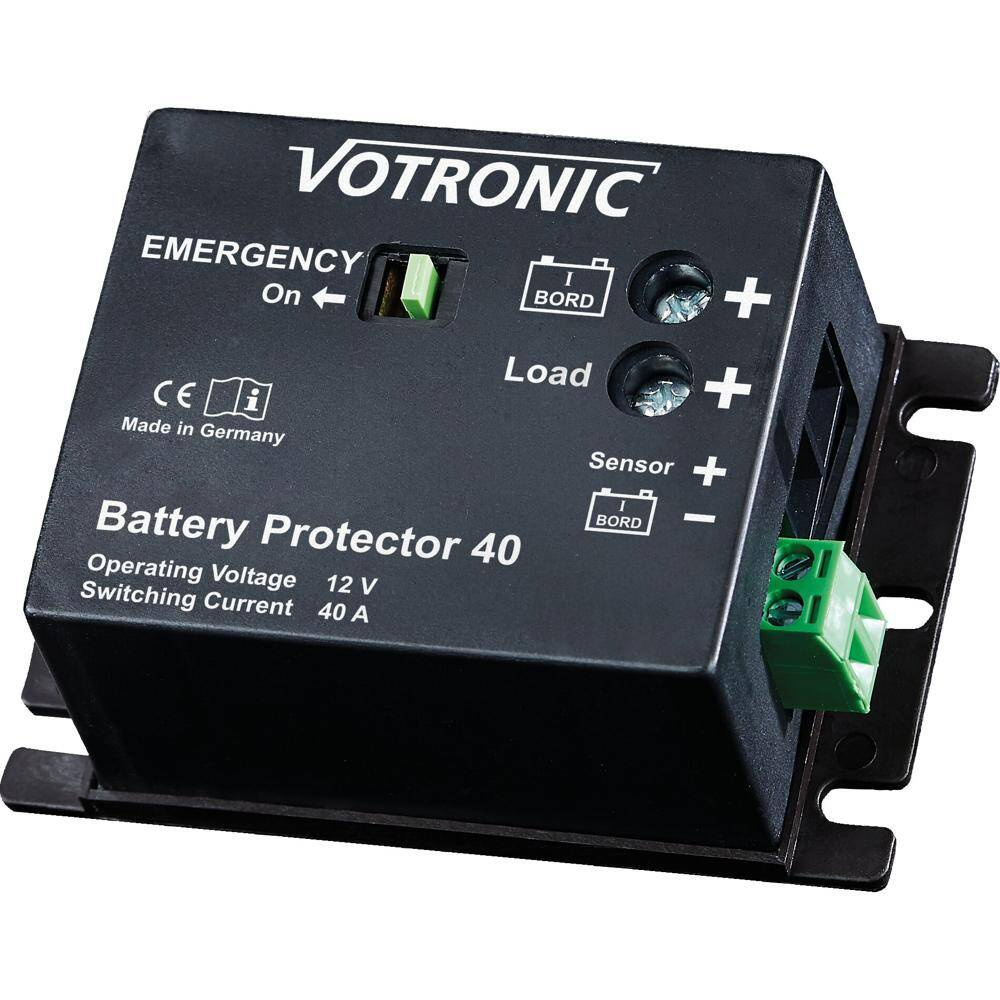

The VOTRONIC battery monitors are connected between the supply battery and the consumer and are suitable for all lead-acid battery types (acid, gel, AGM) and makes. On the one hand, they protect the RV battery from dangerous deep discharge and, on the other hand, they protect the consumers and equipment from overvoltage. The battery monitor can also be used as a remote-controlled battery main switch from an external switch. The devices can be switched on again at any time via an EMERGENCY ON function. A bistable power relay ensures extremely low power consumption (DIN EN 13976). Solid screw terminals round off the profile.
Details
- Switching current 40 A, briefly overloadable up to 60 A, externally visible switching status display
- EMERGENCY ON function via switch on the device, can also be operated remotely via external switch
- Automatic reset as soon as the battery voltage returns to the normal range (charging)
- Separate sensor cable and switching thresholds with hysteresis and timer functions for trouble-free operation
- Bistable power relay, very low power consumption, less than 3 mA (according to EN 13976)
- No self-consumption when switched off via external switch, e.g. remote control as main battery switch
- Solid screw terminals for battery and load cable cross-sections up to 10 mm²
Technical data
- Battery voltage: 12 V
- Switching current continuous/short: 40/60 A
- Switching threshold undervoltage: 10.7 V
- Undervoltage reset point: 12.5 V
- Overvoltage OFF/ON: 16.0/15.0 V
- Power consumption: 2 mA
Votronic has been passionately taking care of the complete power supply when travelling for over 35 years. Quality "Made in Germany" that you can rely on - whether you are travelling in a caravan or motorhome (even off the beaten track), with the fire brigade or in rescue and special operations vehicles. Electronics developed by people for people - with a lot of experience and, above all, with sense and understanding.
