Caratec Safety CS105ULA underbody camera with 10 m cable
- Underbody camera for motorhomes: helps position the vehicle over the dump station inlet. Steel housing, IR LEDs with auto day/night, IP69, 1/3.2" Sony CMOS sensor, microphone, 12 V DC. 10 m RCA cable included.
Caratec Safety CS105ULA underbody camera with 10 m cable

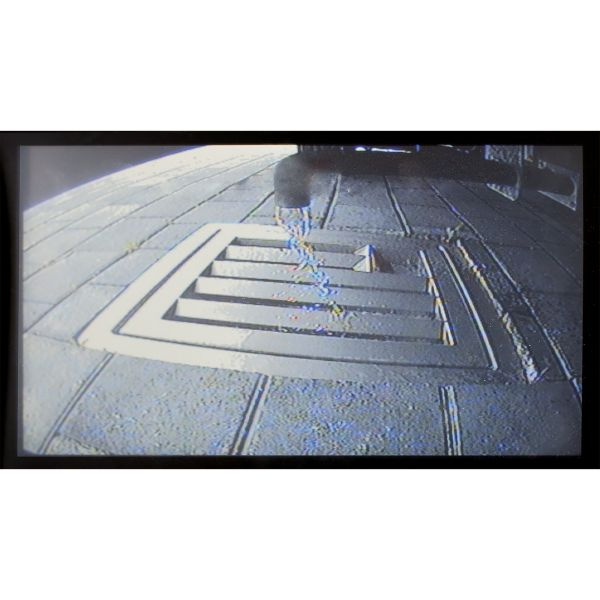

The Caratec Safety CS105ULA is a camera designed for mounting under the vehicle floor. It makes it easy to find the right position for emptying the tanks: you can see the outlets and steer your motorhome precisely over the ground inlet of a service station.
Key features

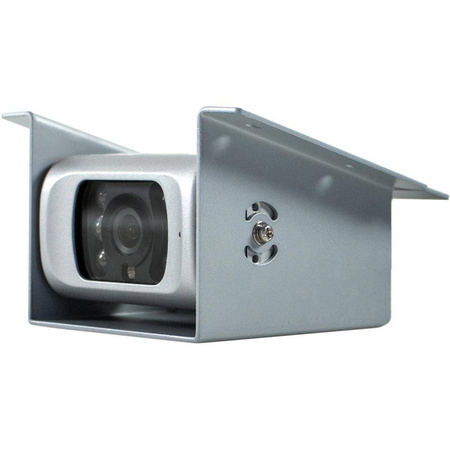

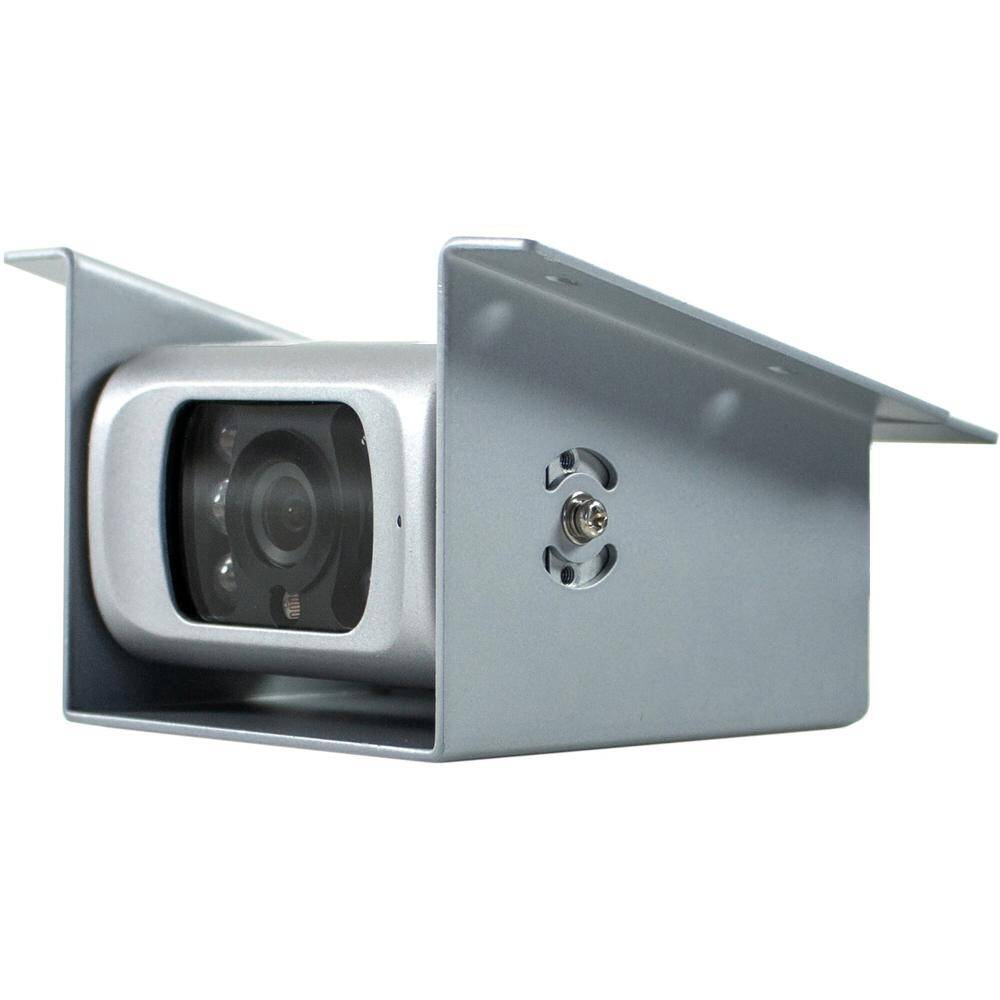

- Robust steel housing – protects the camera on three sides.
- IR LED illumination – automatic day/night switching gives a good picture even in darkness.
- IP69 sealing – water and system tightness.
- 1/3.2" Sony CMOS sensor with 1297 x 977 resolution and 0.01 lux sensitivity.
- Integrated microphone.
- 10 m cable included.
Connection
The camera connects to the camera input (RCA / A/V) of a moniceiver, navigation system or other device with a video input. The manufacturer also lists compatibility with the Caratec CSM9600 interior mirror system and the CSM4300SD mirror monitor with RCA camera input. The camera runs on 12 V DC.
Package contents
- Caratec Safety CS105ULA camera
- 10 m camera cable (CSZ110L)
- Mounting screws
- Installation instructions
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Caratec |
| Model | Safety CS105ULA |
| Application | underbody camera for motorhomes |
| Image sensor | 1/3.2" Sony CMOS |
| Sensor resolution | 1297 x 977 |
| Light sensitivity | 0.01 lux |
| Day/night switching | automatic (IR LED) |
| Colour system | PAL |
| Microphone | integrated |
| Sealing | IP69 |
| Housing | steel, silver |
| Power supply | 12 V DC |
| Power consumption | max. 2.5 W |
| Operating temperature | -30 °C … +80 °C |
| Storage temperature | -40 °C … +85 °C |
| Dimensions (W x H x D) | 106 x 103 x 66 mm |
| Cable length | 10 m (CSZ110L) |
| Connector | RCA (Cinch), A/V input |
| Net weight | 810 g |
| EAN code | 4260128795561 |
Frequently asked questions
What is an underbody camera for?
It helps you position the motorhome over the waste dump inlet, as you can see the outlets under the vehicle.
Does the camera work at night?
Yes, it has IR LED illumination with automatic day/night switching.
How should it be mounted?
Under the vehicle floor, according to the manufacturer's instructions facing against the direction of travel only. Installation and connection should be carried out by a qualified installer.
Is the cable included?
Yes, the CS105ULA version includes a 10 m connection cable.
