charge controller SR 180 LCD
ID produktu: 52081

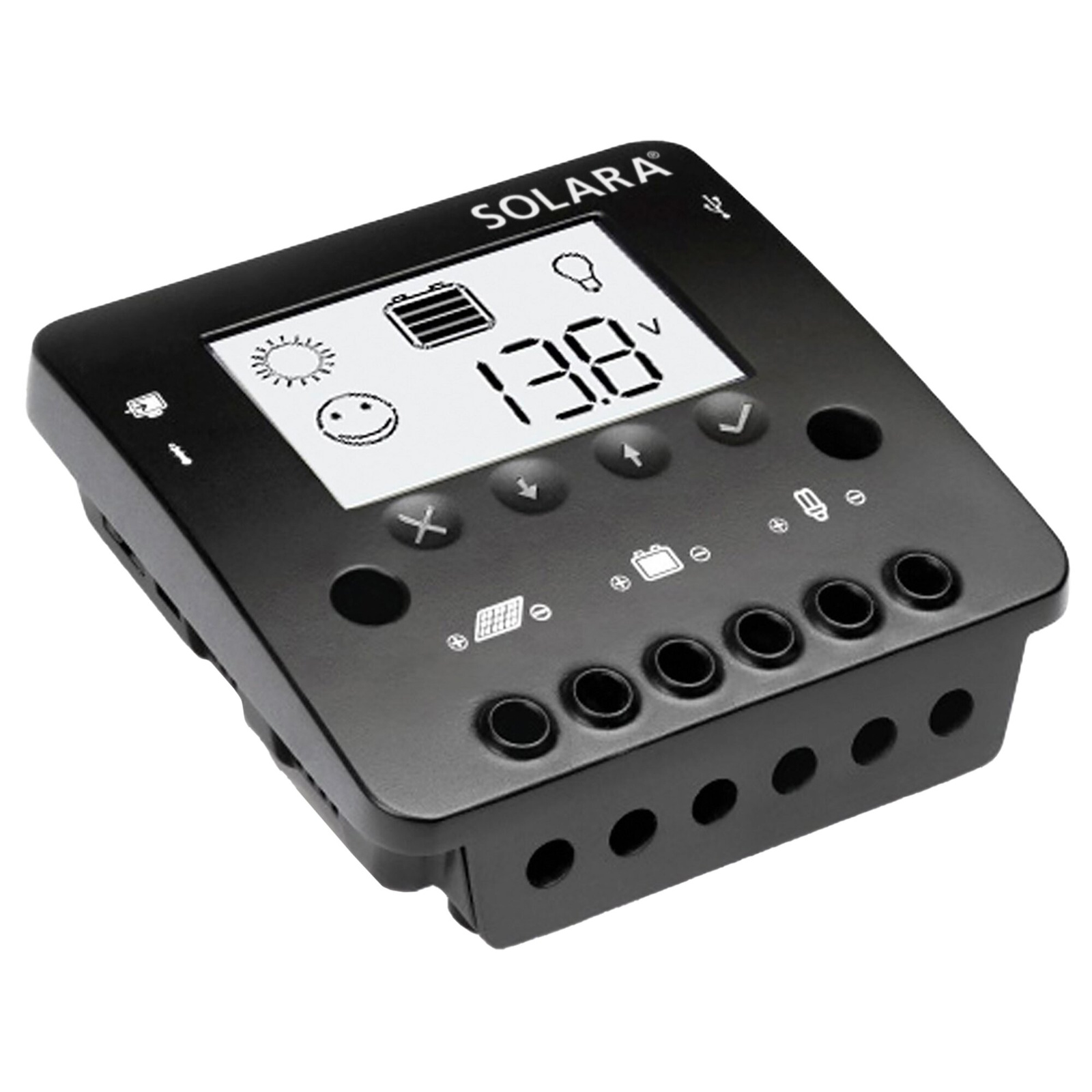

charge controller SR 180 LCD Solara
The control center for all cases
The regulated PWM characteristic guarantees optimal charging. Series regulator (no shunt) and therefore very efficient. The load output protects your battery from deep discharge. A large and informative LCD display shows the current system status.
- Automatic detection of battery voltage
- solar power 180 – 360 watts
- Maximum open circuit voltage 30/50 V
- Electronically protected against overcharging, reverse polarity, overvoltage
- battery deep discharge protection
- Battery type can be set manually
- LED display for battery status
- USB port for charging
- Lithium-Ready
- Low consumption only < 4 mA
ID produktu
52081
Brand
Product length in centimeters
12.5
15
Product height in centimeters
7.5
4
Product width in centimeters
12.5
12
Charging current
10 A
Maximum output
360 W
Width
10.3 cm
Height
3.2 cm
Depth
10.1 cm
Net weight
200 g
Nominal voltage
12 – 24 V
Package dimensions
12.5 x 12.5 x 4 cm
Nominal power
180 W
Rated current
10 A
