CKW 910-1000001 winter drain for water tanks - bottom outlet with lever, floor feed-through, seal and nuts
- CKW 910-1000001 winter drain fitted to the bottom opening of a fresh or waste water tank. Lever operated, with floor feed-through, seal and nuts. Dimensions 18 x 4.8 cm, 72 g.

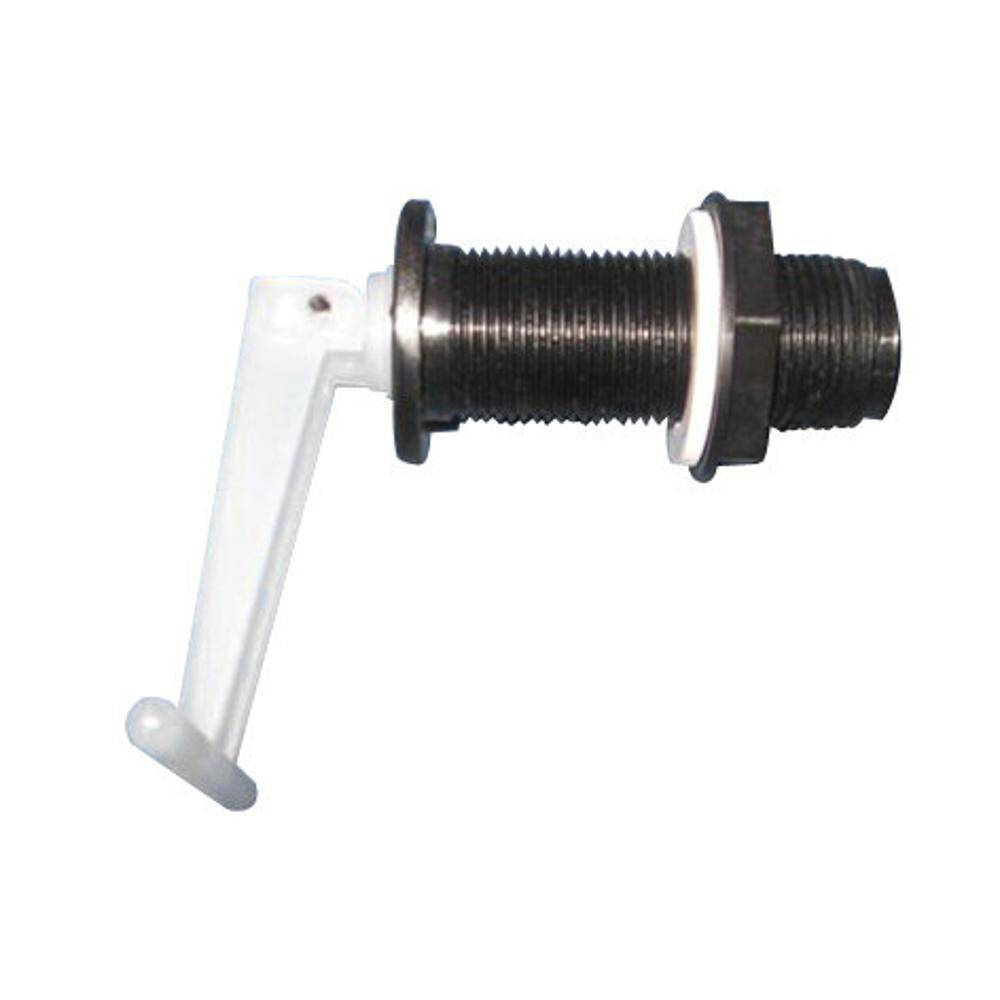

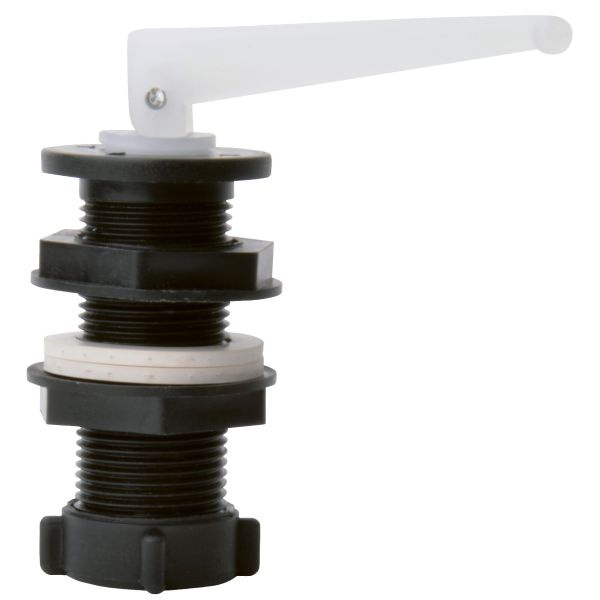

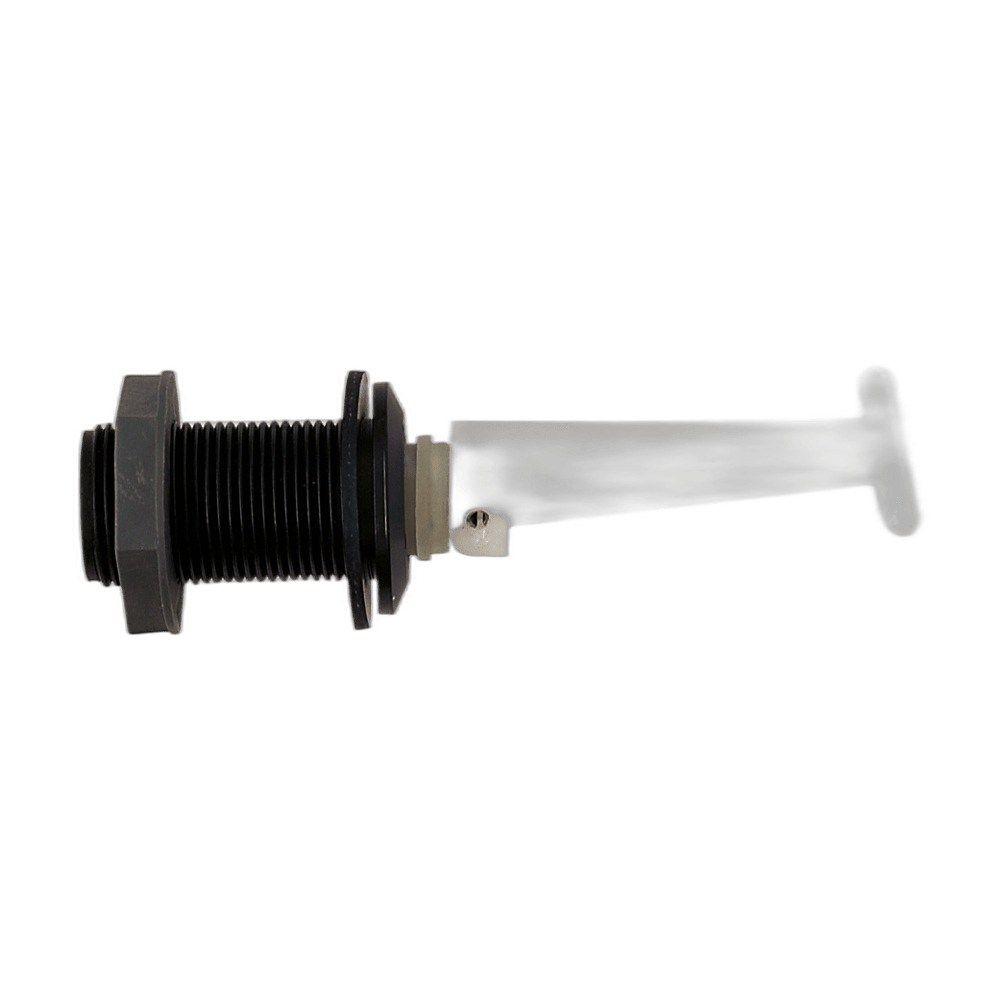

The CKW 910-1000001 winter drain (Winterentleerung) fits the dedicated bottom opening of a fresh or waste water tank in a motorhome or caravan. Before winter it lets you drain the water left at the bottom of the tank straight under the vehicle. The drain opens with a white lever and comes with a floor feed-through, a seal and fixing nuts.
What it is for
- draining residual water from the tank before winter
- fresh water tank or waste water tank
- fitted to the bottom opening of the tank
- the water drains under the vehicle, no need to remove the tank
Contents
- winter drain with white lever
- floor feed-through
- seal
- fixing nuts
- manufacturer article number 910-1000001
Installation
- the drain is fitted to the opening in the tank bottom and the feed-through passes through the vehicle floor
- the seal and nuts secure the drain and the feed-through
- to drain the water, open the drain with the lever
- the manufacturer intends this drain as the bottom outlet of its built-in tanks
Matching tanks in our shop
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | CKW (Germany) |
| Manufacturer article number | 910-1000001 |
| EAN | 4042315130696 |
| Type | winter drain (tank bottom outlet) |
| Use | fresh or waste water tank |
| Mounting | in the bottom opening of the tank, feed-through in the vehicle floor |
| Length | 18 cm |
| Width | 4.8 cm |
| Net weight | 72 g |
| Gross weight | 72 g |
| Pack size | 12.2 x 9 x 5.1 cm |
| Operation | lever |
| Contents | drain with lever, floor feed-through, seal, fixing nuts |
Questions and answers
Is the tank included?
No. You get the winter drain with lever, floor feed-through, seal and fixing nuts.
Which tanks does it fit?

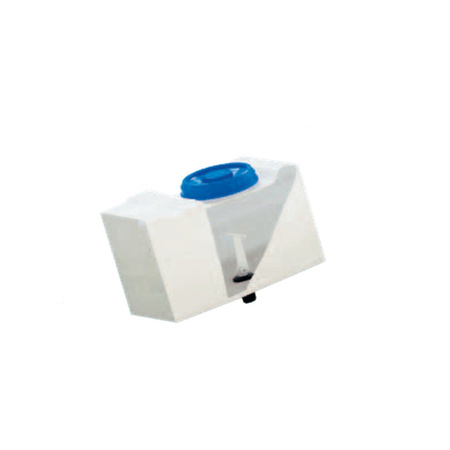

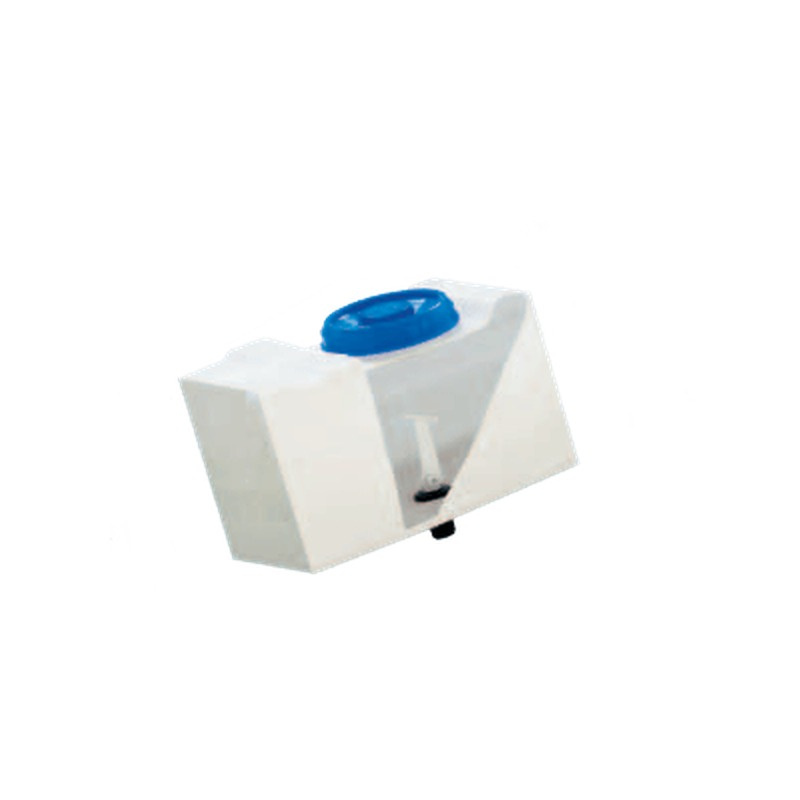

Fresh and waste water tanks with a dedicated bottom opening for a drain, for example CKW Carysan built-in tanks.
What are the dimensions and weight?
The drain measures 18 x 4.8 cm and weighs 72 g. The pack measures 12.2 x 9 x 5.1 cm.
When do I use it?
Before winter or a longer stop in frost, to drain the water left at the bottom of the tank.
Manufacturer
CKW Gesellschaft für Kunststoffverarbeitung mbH, Am Tomlaich 1, 99887 Georgenthal OT Catterfeld, Germany.
